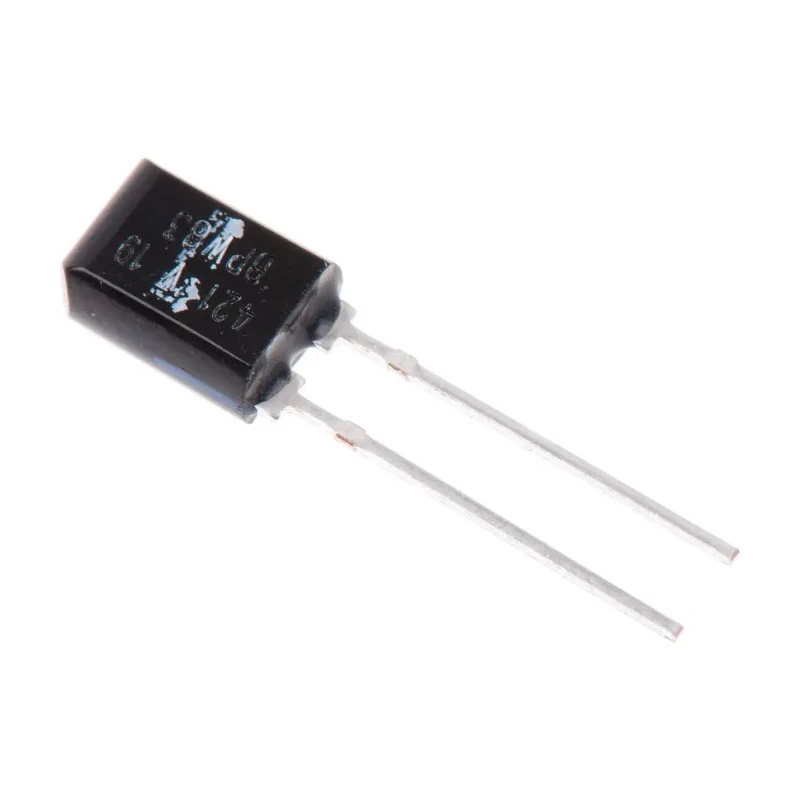

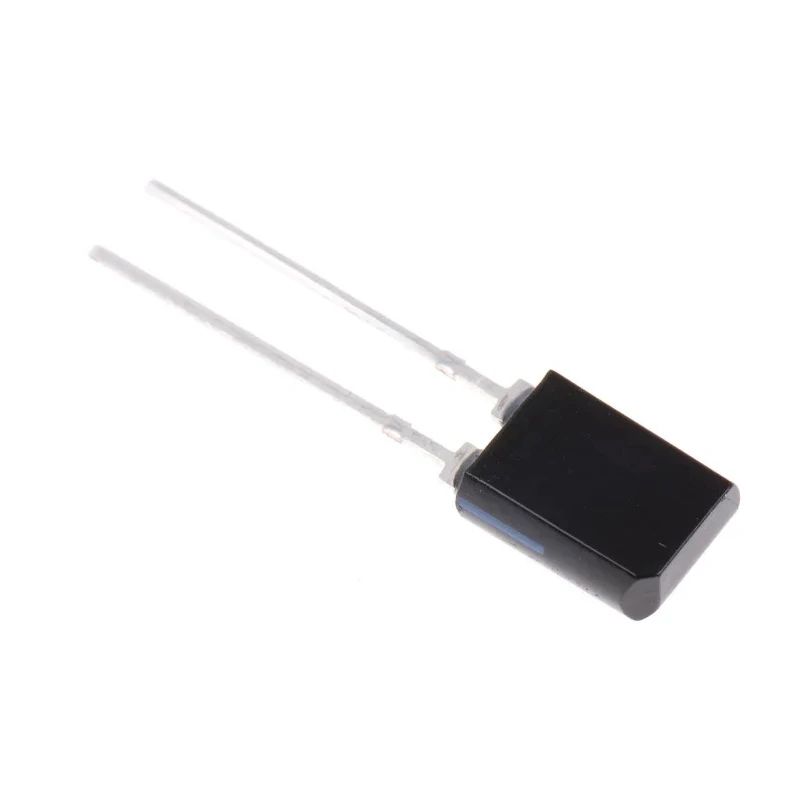

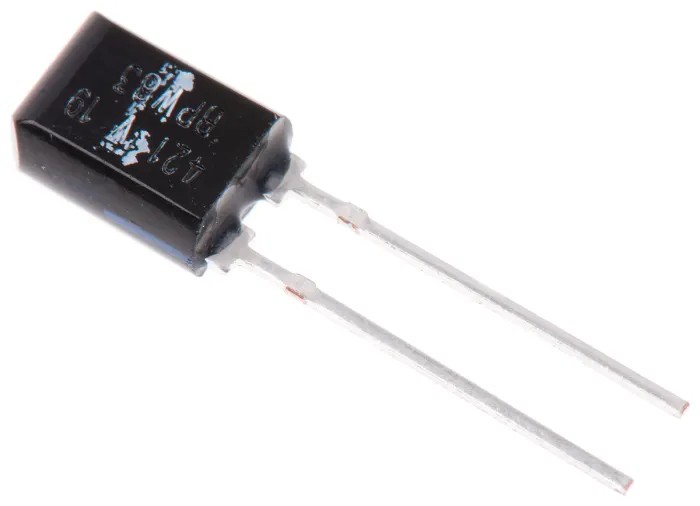

Vishay Infrared Visible Light Photodiode Through Hole Side View Plastic BPW83

Name: Vishay Infrared Visible Light Photodiode Through Hole Side View Plastic BPW83
Brand: Vishay
SKU: 376269
Price: 1.2 USD
Availability: InStock



Category Photodiode Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Diameter	5mm
Brand	Vishay
Height	6.4mm
Length	5mm
Model	BPW83
Packaging	Bulk
Width	3mm
Mount Type	Through Hole
Series	BPW
Short Circuit Current	38μA
Maximum Operating Temperature	100°C
Package Type	Side View Plastic
Minimum Operating Temperature	-40°C
Polarity	Forward
Open Circuit Voltage	350mV
Standards/Approvals	RoHS 2002/95/EC, WEEE 2002/96/EC
Number of Pins	2
Typical Fall Time	100ns
Wavelength of Peak Sensitivity	950nm
Spectrums Detected	Infrared, Visible Light
Breakdown Voltage	60V
Minimum Wavelength Detected	790nm
Maximum Wavelength Detected	1050nm
Angle of Half Sensitivity	± 65 °
Radiant sensitive area	7.5 mm²

Key Features

Detects infrared and visible light spectrums with peak sensitivity at 950nm.
Features a side-view plastic package suitable for through-hole mounting.
Operates within a temperature range of -40°C to 100°C for reliable performance.
Provides fast response times with 100ns typical rise and fall times.
Includes a daylight blocking filter for improved radiant sensitivity and signal accuracy.
Has a radiant sensitive area of 7.5 mm² enhancing detection capability.
Rated for 60V breakdown voltage and 38μA short circuit current.
Compact dimensions of approximately 5mm length, 6.4mm height, and 3mm width.

Product Description

Vishay BPW83 is a high-performance PIN photodiode suitable for infrared and visible light detection. It features a through-hole side view plastic package with a daylight blocking filter that enhances sensitivity by reducing ambient visible light interference. The device offers a ± 65° angle of half sensitivity, making it well-suited for high-speed IR detector applications, free air data transmission systems, and IR remote control devices.

With a peak wavelength sensitivity of 950nm and a spectral detection range from 790nm to 1050nm, the BPW83 photodiode provides accurate and fast response with typical rise and fall times of 100ns. Its radiant sensitive area of 7.5 mm² delivers high radiant sensitivity. The photodiode supports operation from -40°C up to 100°C, ensuring reliable functionality in harsh environments.

The package includes two pins for easy through-hole mounting and integration into electronic systems. The device is RoHS and WEEE compliant, meeting current environmental and safety regulations. Its compact size (length 5mm, height 6.4mm, width 3mm) allows flexible application in compact designs.

Detects infrared and visible light spectrums. Side-view plastic package for through-hole mounting. Daylight blocking filter improves accuracy. High radiant sensitivity with 7.5 mm² sensing area. Fast response times of 100ns rise/fall.

Operating temperature from -40°C to 100°C. Breakdown voltage of 60V and short circuit current of 38μA. RoHS and WEEE compliant for environmental safety.

This photodiode is ideal for industrial, electronic components, laboratory instrumentation, optical sensing applications, and communication devices. Its high-speed response and infrared sensitivity enable efficient use in remote controls, safety sensors, and light detection circuits.
