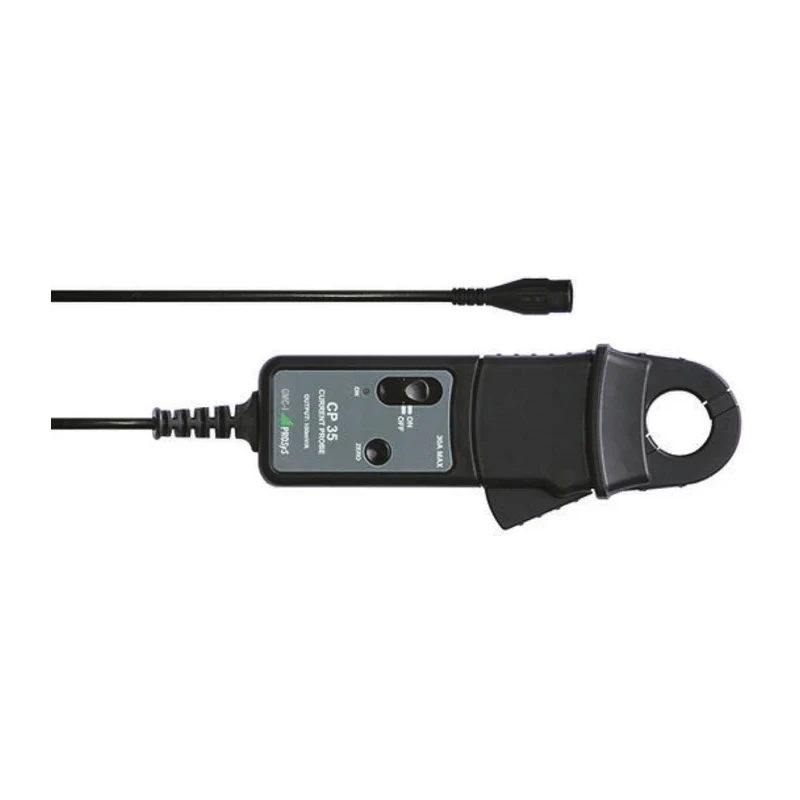

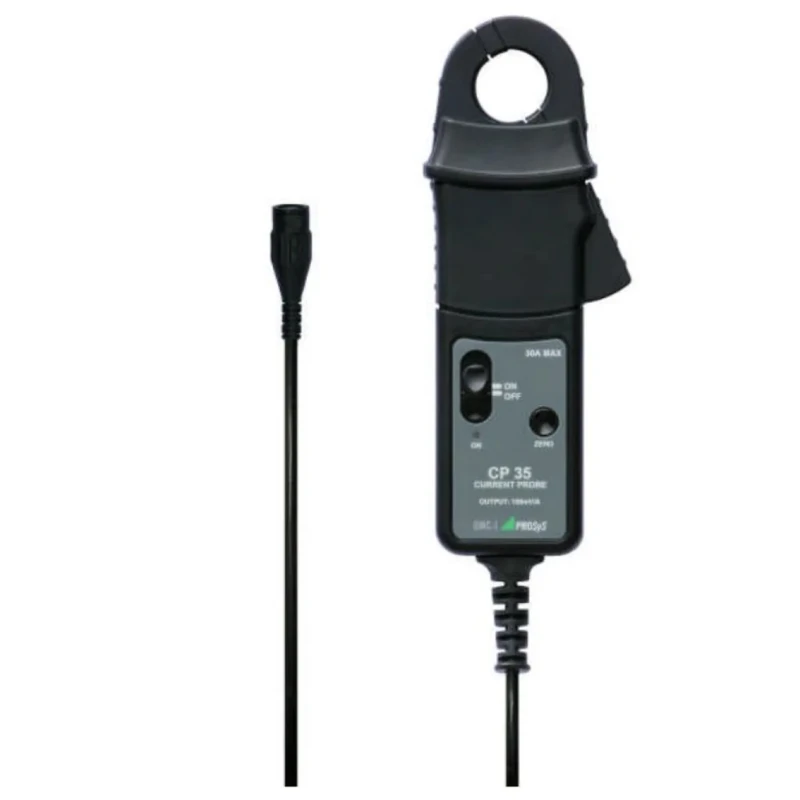

GMC-I Prosys Precision AC/DC Current Clamp with 30 A Max DC/AC, BNC Connector, CP 35
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Accuracy | ±1% + 2 mA |
| Brand | GMC-I Prosys |
| Battery Life | 30h |
| Model | CP 35 |
| Cable Length | 2m |
| Connector Type | BNC |
| Output type | Current |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Adapter Type | AC/DC |
| Safety Category Level | CAT III |
| Safety Category Voltage | 300V |
| Maximum DC Current | 30A |
| Maximum Conductor Size | 25mm |
Key Features
- Measures AC and DC current accurately up to 30 amperes.
- Utilizes Hall Effect technology for high accuracy and resolution.
- Equipped with a 2 meter cable and BNC connector for ease of use.
- Features auto power off to conserve the 9V alkaline battery life of approximately 30 hours.
- Wide operating temperature range from 0°C to 50°C suitable for various environments.
- Safety rated CAT III at 300 V for secure operation.
- Compact dimensions of 194 x 74 x 25 mm with a 25 mm jaw capacity.
- Ideal for non-intrusive current measurements in industrial, automotive, battery testing, and process control applications.
Product Description
GMC-I Prosys CP 35 is a high precision AC/DC current clamp designed to measure currents up to 30 A DC or AC. Featuring Hall Effect technology, this instrument delivers excellent accuracy of ±1% plus 2 mA over a frequency range from DC to 100 kHz, providing a resolution of 1 mA from 5 mA up to the maximum current.
The clamp supports conductors up to 25 mm diameter and is connected via a BNC connector with a 2 meter cable, enabling flexible and easy connection to oscilloscopes and measurement devices. Its ergonomically compact design with dimensions of 194 mm height, 74 mm width, and 25 mm depth and a lightweight 320 g mass allow for convenient handheld use in demanding environments.
This model includes safety features compliant with EN61010 safety rating CAT III 300 V, suitable for both light industrial and residential electrical installation testing. Auto power off functionality extends battery life of the supplied 9V PP3 alkaline battery up to 30 hours.
GMC-I Prosys CP 35 current clamps are widely used in various applications including automotive battery leakage current testing, industrial process control systems, and battery charging system monitoring. Their wide bandwidth and high external field rejection capabilities ensure reliable and precise current measurements for complex waveform analysis.
30 A AC/DC measurement range for versatile use. Simple push button auto zero for ease of operation. Wide bandwidth and high external field rejection for precise readings. Compact and lightweight for handheld use. Safe to use with CAT III 300 V rating.
Long battery life with auto power off feature. Suitable for use with oscilloscopes and test instruments.
Package includes 1 x PP3 9V alkaline battery and operating instructions. This current clamp is manufactured in the United Kingdom and is offered new, meeting industrial accuracy and safety requirements.
Explore more measuring and testing instruments and Current Clamps at EnvMart for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure AC and DC currents up to a maximum of 30 amperes.
It utilizes Hall Effect technology, which provides high accuracy and resolution for current measurements.
The accuracy is ±1% plus 2 mA over the measurement range.
The operating temperature range is from 0°C to 50°C, making it suitable for various environments.
It is equipped with a BNC connector for easy connection to oscilloscopes and measurement devices.
The cable length is 2 meters, allowing for flexible use in different setups.
The clamp can accommodate conductors with a maximum diameter of 25 mm.
It is safety rated CAT III at 300 V, suitable for light industrial and residential electrical testing.
The battery life is approximately 30 hours, and it features an auto power off function to conserve battery life.
The dimensions are 194 mm in height, 74 mm in width, and 25 mm in depth, with a weight of 320 g.
It is widely used in automotive battery leakage current testing, industrial process control systems, and battery charging system monitoring.
Yes, the package includes a PP3 9V alkaline battery and operating instructions.
