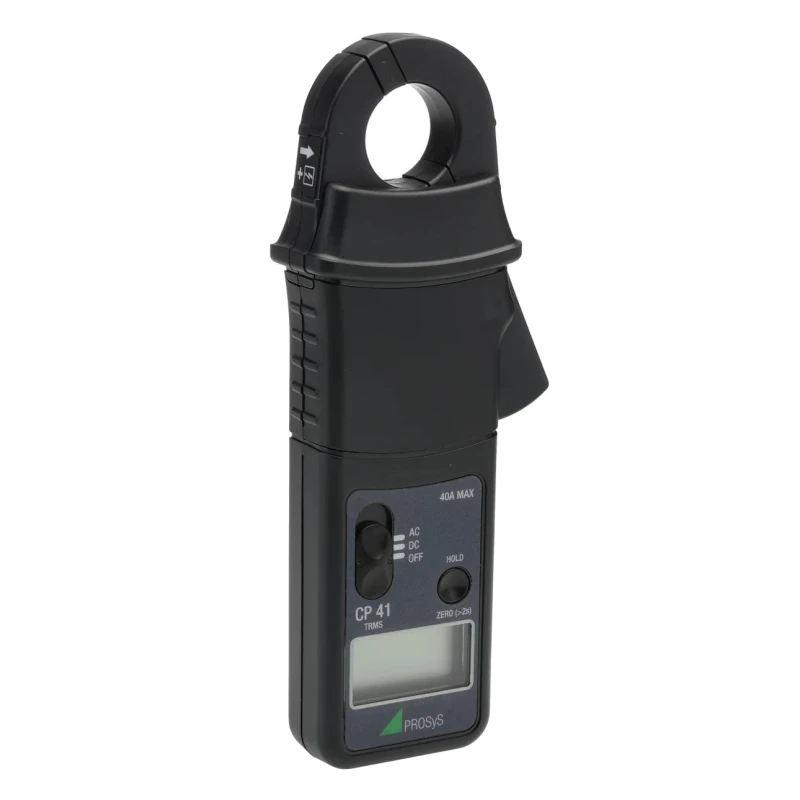

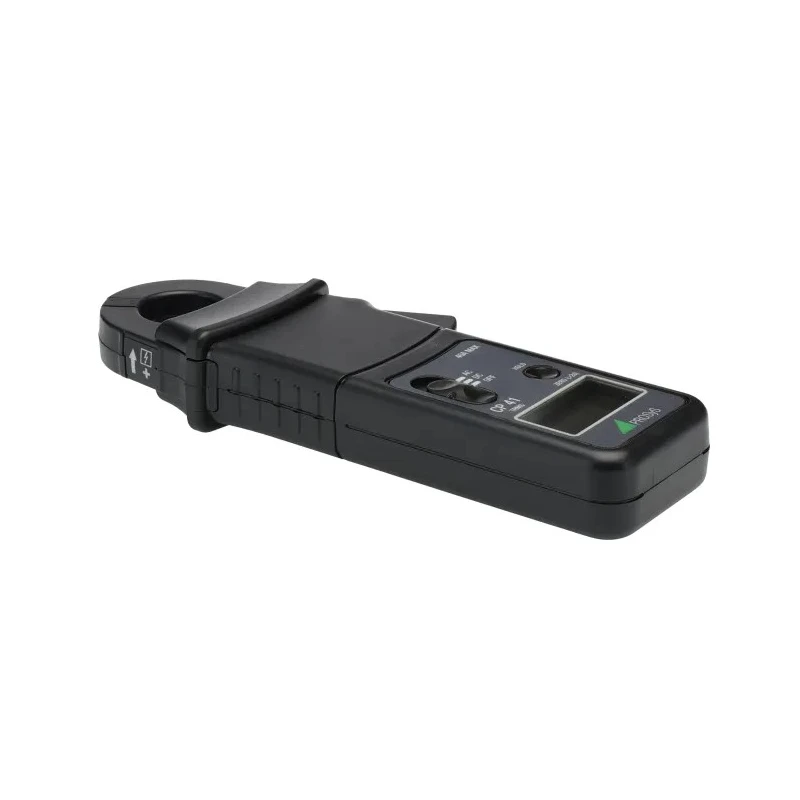

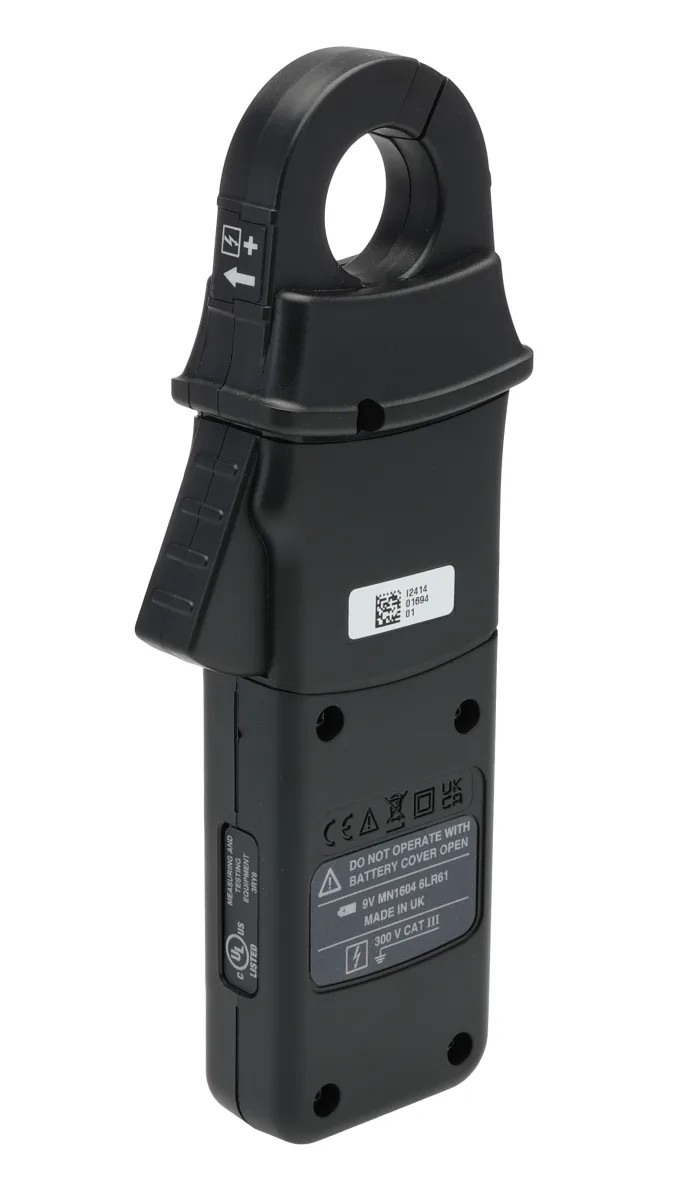

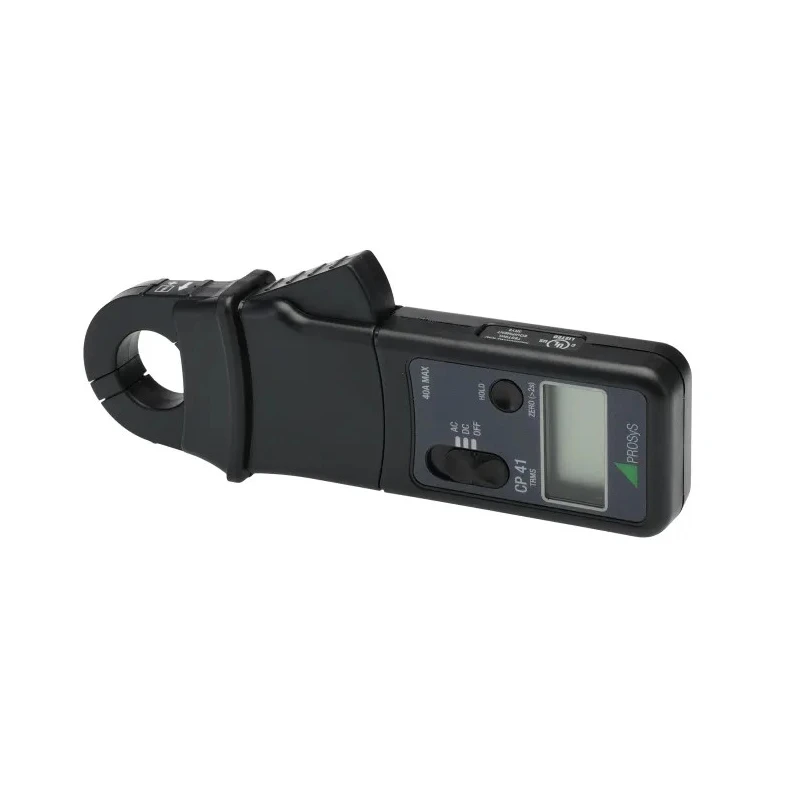

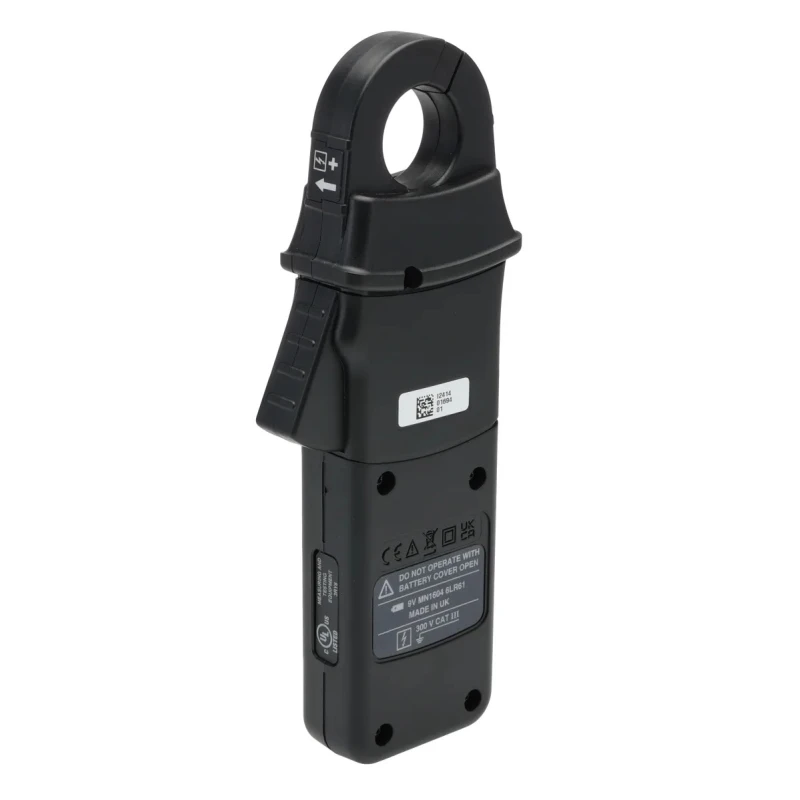

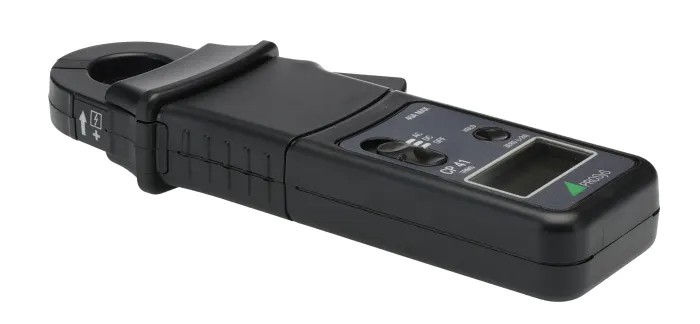

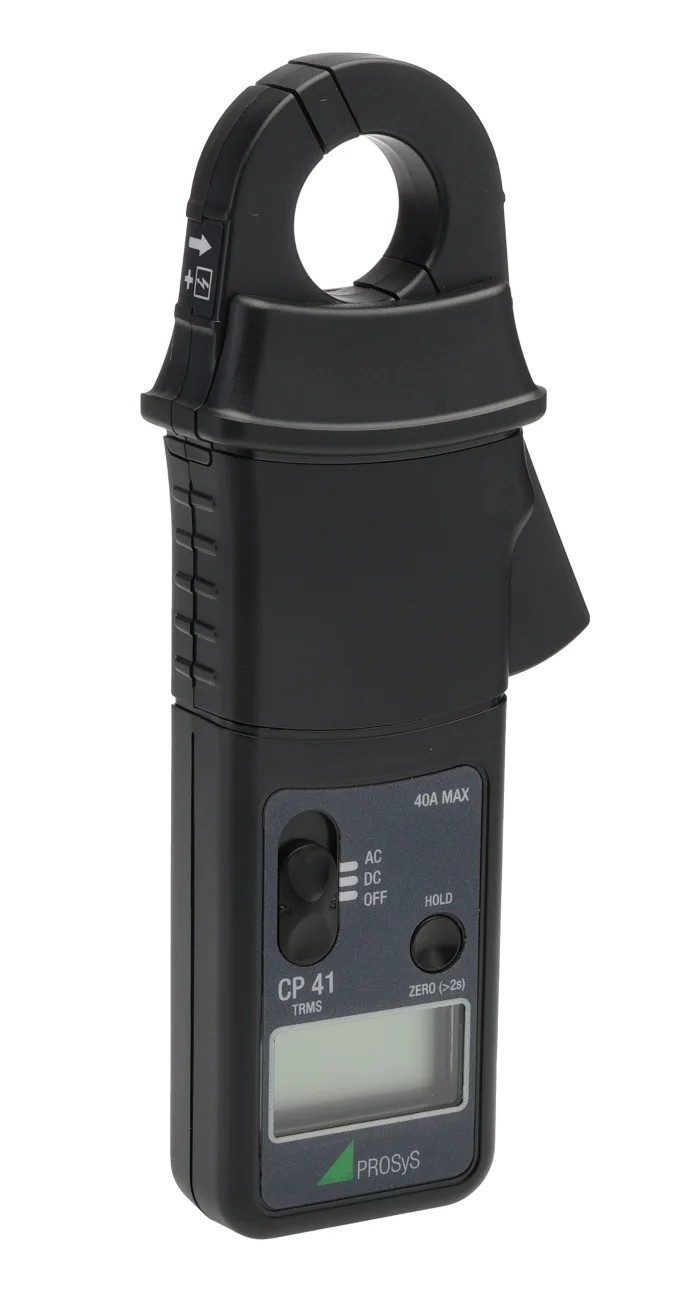

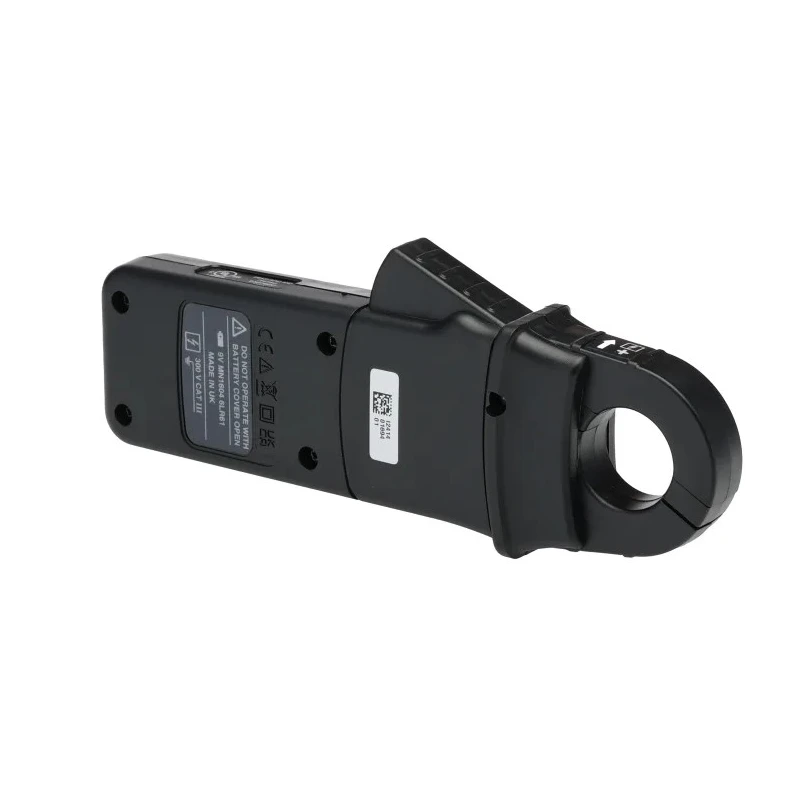

GMC-I Prosys CP41 Clamp Meter, True RMS AC/DC Measurement 40 A DC, 40 A AC, 300 V DC, 300 V AC CAT III

Free Delivery in India | Lowest Global Shipping Charges

GMC-I Prosys CP41 Clamp Meter, True RMS AC/DC Measurement 40 A DC, 40 A AC, 300 V DC, 300 V AC CAT III

Name: GMC-I Prosys CP41 Clamp Meter, True RMS AC/DC Measurement 40 A DC, 40 A AC, 300 V DC, 300 V AC CAT III
Brand: GMC-I Prosys
SKU: 127441
Price: 795.99 USD
Availability: InStock



Category Clamp Meters Brand GMC-I Prosys Condition New

Specifications

Country of Origin	United Kingdom
Display Type	LCD
Brand	GMC-I Prosys
Battery Life	15h
Height	194mm
Length	25mm
Model	CP41
Gross Weight	235g
Width	74mm
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
DC Current Accuracy	±1 % rdg + 5 Digits
DC Current Resolution	1mA
Maximum Jaw Opening	25mm
Functions Measured	DC Current, AC Current
Maximum AC Current Measurement	40A ac
Maximum DC Voltage Measurement	300V dc
Maximum DC Current Measurement	40A dc
Maximum AC Voltage Measurement	300V ac
Safety Category Level	CAT III
Safety Category Voltage	300V
Maximum Conductor Size	25mm
Clamp Meter Type	AC/DC Clamp Meter
EN61010-2-032	2002

Key Features

Measures AC and DC current up to 40 A with high accuracy.
Supports AC and DC voltage measurements up to 300 V.
Equipped with a 4000 count LCD display for clear readings.
Compact and lightweight design with a 25 mm jaw opening.
Provides True RMS readings ideal for industrial and residential electrical testing.
High noise rejection ensures reliable measurements in noisy environments.
Includes functions such as data hold, auto-zero, and low battery indication.
Operates in a temperature range from 0°C to 50°C with auto power-off feature.

Product Description

GMC-I Prosys CP41 Clamp Meter is a True RMS AC/DC clamp meter designed for accurate current and voltage measurements in industrial, light industrial, and residential electrical applications. It supports measurements of up to 40 A for both AC and DC current and up to 300 V AC/DC voltage with a compact, ergonomic design suitable for field and panel testing.

The clamp meter features a 4000 count LCD display with high noise rejection, providing accurate and reliable readings even in electrically noisy environments. It is ideal for testing AC power distribution control gear and AC/DC inverter drive systems, as well as leakage current measurements, process control loops, and battery charging system verification.

Additional features include a 25 mm jaw size for conductor accommodation, data hold, auto-zero, low battery indication, and an automatic power-off function to conserve battery life. The device operates safely within a 0°C to 50°C temperature range and meets IEC 1010 EN61010-2-032:2002 standards with a CAT III 300 V safety rating.

This clamp meter is supplied with a PP3 9V alkaline battery and an instruction manual. Its lightweight design (235 g) and compact dimensions (194 mm height, 74 mm width, and 25 mm length) make it portable and easy to use on-site for electrical technicians and engineers.

Measures AC/DC current and voltage accurately with True RMS technology. High noise and external field rejection for stable measurements. Compact form factor with a 25 mm jaw opening suitable for most conductor sizes. Useful for industrial, residential electrical testing, and process control applications.

Includes CAT III 300 V safety rating for operator protection in electrical environments. Lightweight and ergonomically designed for ease of use. Automatic power-off and battery life indication for efficient operation.

For electrical testing professionals seeking reliable Clamp Meters with comprehensive features and safe operation, the GMC-I Prosys CP41 is an excellent choice. Browse our Measuring & Testing Instruments category on EnvMart for more precision instruments from leading brands.
