RS PRO RS-3809 Light Meter, 40lx to 400000 lx Measurement Range, ±3% Accuracy RS-3809

Free Delivery in India | Lowest Global Shipping Charges

RS PRO RS-3809 Light Meter, 40lx to 400000 lx Measurement Range, ±3% Accuracy RS-3809

Name: RS PRO RS-3809 Light Meter, 40lx to 400000 lx Measurement Range, ±3% Accuracy RS-3809
Brand: RS PRO
SKU: 147461
Price: 131.63 USD
Availability: InStock



Category Light Meter Brand RS PRO Condition New

Specifications

Country of Origin	China
Accuracy	±3 %
Brand	RS PRO
Height	28mm
Length	162mm
Model	RS-3809
Gross Weight	250g
Sensor Type	Silicon Photodiode
Width	63mm
Sampling rate	2
Maximum Operating Temperature	40°C
Minimum Operating Temperature	5°C
Standards/Approvals	JIS C1609:1993 CNS 5519
Maximum Light Level	400000lx
Minimum Light Level	40lx
Standards/Approvals JIS C1609	1993 CNS 5519
Approved according to JIS C1609	1993 and CNS 5519 general A class specifications

Key Features

Equipped with a silicon photodiode sensor for accurate light detection.
Features a large backlit LCD for clear real-time readouts.
Provides user-selectable Lux and Footcandle scales for versatile illumination measurement.
Includes data hold, maximum/minimum/average hold, auto-ranging and zero adjustment functions.
Designed with an ergonomic and durable build suitable for harsh environments.

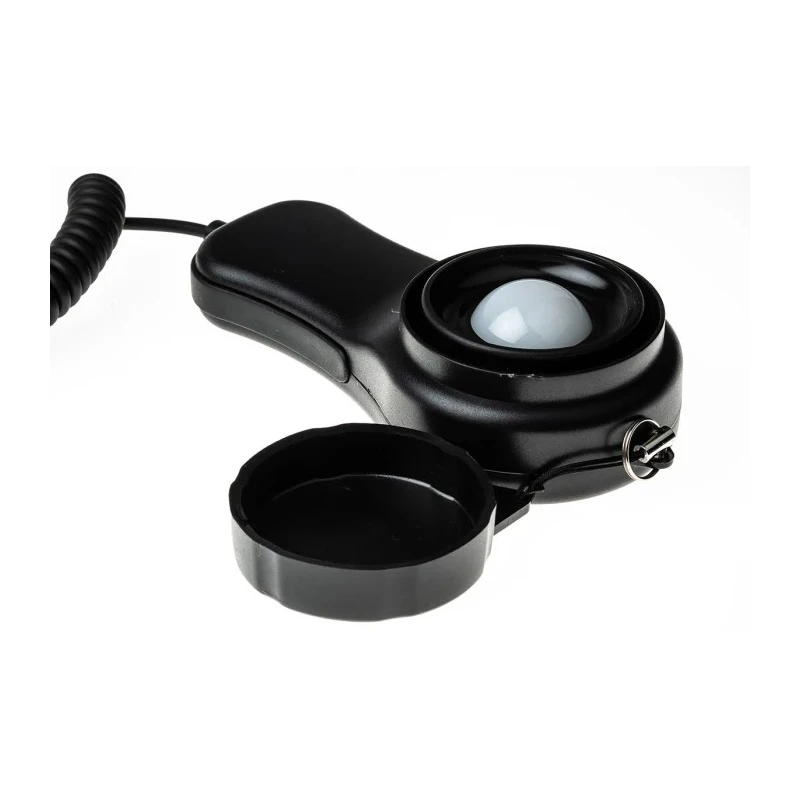

Extendable sensor cable enhances ease of use and application versatility.
Low battery and overload indicators ensure reliable operation.

Product Description

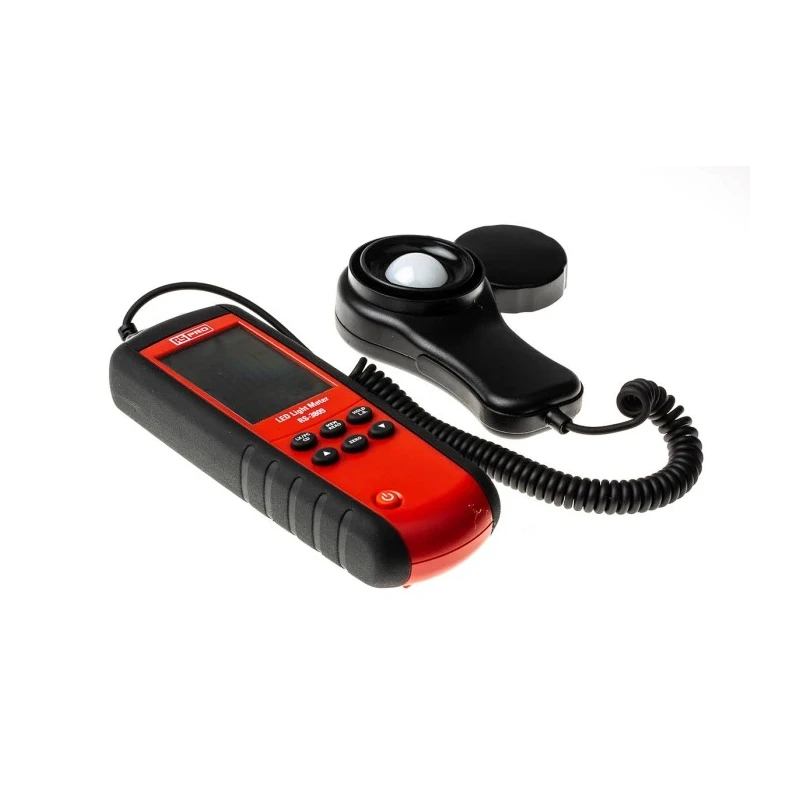

RS PRO RS-3809 Light Meter is a professional-grade instrument designed for accurate measurement of ambient light intensity spanning from 40lx to 400000 lx, with an accuracy of ±3%. The device utilizes a silicon photodiode sensor to precisely capture light emitted from visible light sources including white LED, fluorescent, metal halide, and incandescent lamps.

Its robust and ergonomic design ensures durable performance even under harsh environmental conditions, making it suitable for use in industrial, commercial, educational, healthcare, and photographic settings.

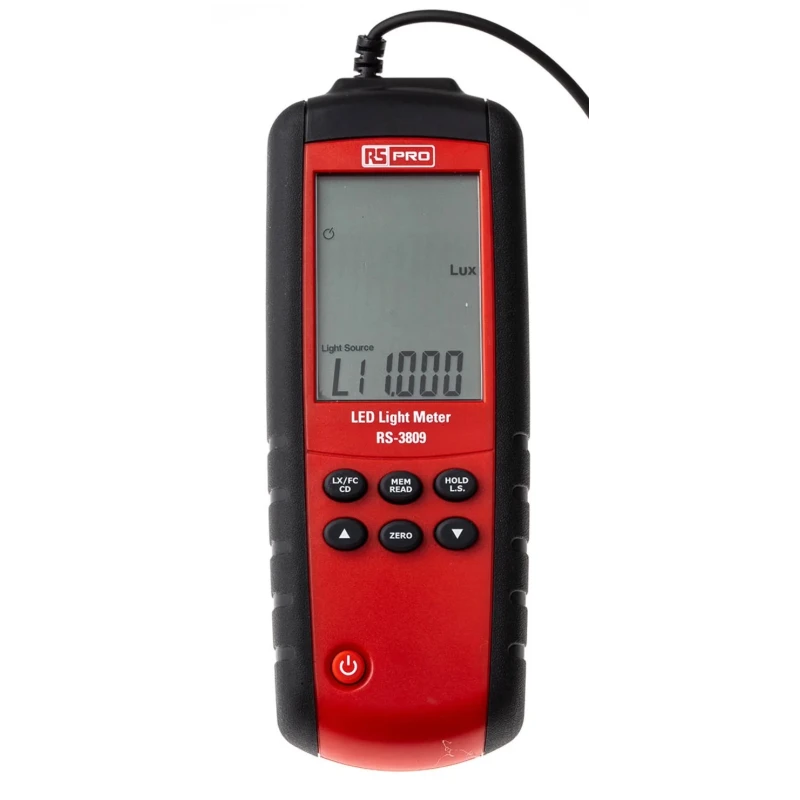

The meter features a large backlit LCD digital display that updates measurements 2.5 times per second for ease of reading. The sensor is connected via an extendable cable, providing flexible placement and expanding its application scope.

The RS PRO RS-3809 offers versatile functions such as user-selectable Lux and Footcandle scales, data hold, maximum/minimum/average measurement holding, auto-ranging, and zero adjustment for precise and convenient operation. It also includes low battery and overload indicators to prevent errors during measurement.

This light meter complies with JIS C1609:1993 and CNS 5519 general A class standards, certifying its reliability and accuracy for professional uses. Accurate measurement over a wide illumination range of 40lx to 400000 lx.

Robust construction designed for industrial and field environments. Flexible sensor cable for versatile usage scenarios. Supports multiple illumination units with user-selectable scales. Multiple data hold capabilities enable comprehensive data collection.

Easy to read backlit digital LCD for real-time readings. Low battery and overload protection for measurement integrity. Wide operating temperature range from 5°C to 40°C.

Typical applications include workplace lighting assessment, building maintenance, photographic lighting analysis, museum exhibitions, and hospital lighting verification. This device is essential for professionals ensuring compliance with lighting standards and optimizing ambient light conditions.

Set contains one RS PRO RS-3809 Light Meter and user manual. Explore our full range of high-quality Light Meters and measuring instruments on EnvMart.
