RS PRO Light Meter, Photodiode Sensor, 20 lx to 200000 lx, ±3% Accuracy, Battery Life 200h IM203

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Light Meter, Photodiode Sensor, 20 lx to 200000 lx, ±3% Accuracy, Battery Life 200h IM203

Name: RS PRO Light Meter, Photodiode Sensor, 20 lx to 200000 lx, ±3% Accuracy, Battery Life 200h IM203
Brand: RS PRO
SKU: 138571
Price: 409.83 USD
Availability: InStock



Category Light Meter Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Accuracy	±3 %
Brand	RS PRO
Battery Life	200h
Height	38mm
Length	172mm
Model	IM203
Gross Weight	250g
Sensor Type	Photodiode
Width	55mm
Standards/Approvals	EN 61340-5-1:2007
Maximum Light Level	200000lx
Minimum Light Level	20lx
Standards/Approvals EN 61340-5-1	2007
• To JISC1609	1993 and CNS 5119 general A class specifications

Key Features

Employs a high-sensitivity photodiode sensor for visible light sources measurement.
Features auto-ranging covering lux and foot-candle units.
Offers battery life of up to 200 hours for extended use.
Compact design with dimensions 172 x 55 x 38 mm and lightweight 250 grams.
Accuracy calibrated to incandescent lamp 2856°K with cosine angular correction.
Supports datalogger with USB interface and 7000 record capacity.
Ideal for use in warehouses, offices, educational institutions, hospitals, and photography.
Measures light intensity from various sources including LEDs, fluorescent and incandescent lamps.

Product Description

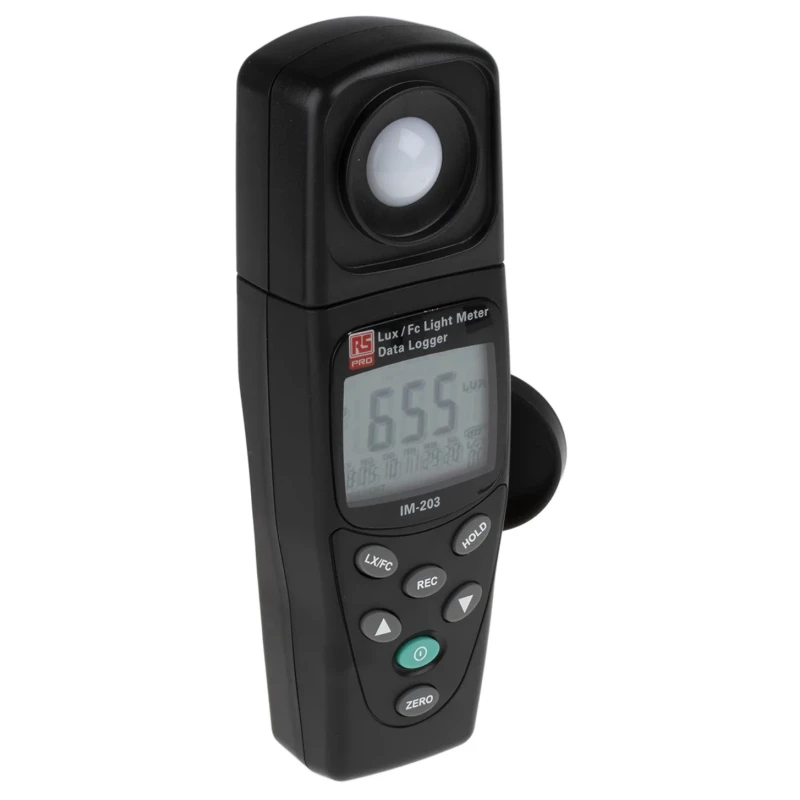

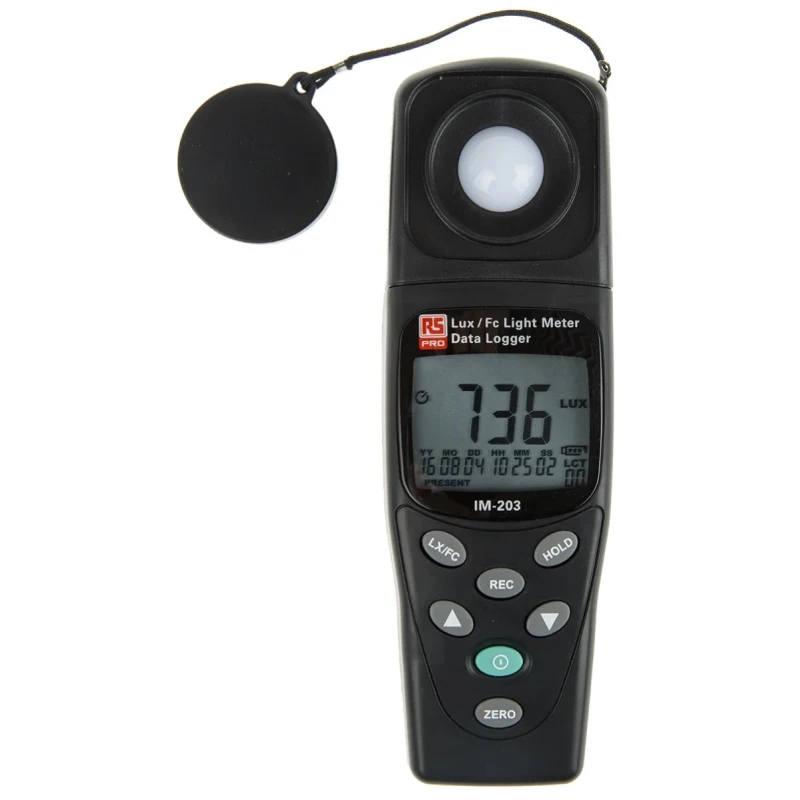

RS PRO IM203 Light Meter is a precision instrument designed for accurate measurement of light intensity ranging from 20 lx to 200000 lx with an accuracy of ±3%. Equipped with a sensitive photodiode sensor, it measures light from all visible sources including sunlight, LED, fluorescent, metal halide, high-pressure sodium, and incandescent lamps.

This compact and lightweight handheld device boasts dimensions of 172 mm in length, 55 mm width, and 38 mm height, weighing only 250 grams including battery. The auto-ranging feature allows measurement in both lux and foot-candle units with cosine angular correction ensuring reliable data.

With a battery life of 200 hours, the IM203 is suitable for prolonged use in various industrial, commercial, and laboratory environments. It complies with the EN 61340-5-1:2007 safety standards as well as JISC1609:1993 and CNS 5119 general A class specifications, ensuring the highest quality and consistency.

The device is equipped with a datalogger capable of storing 7000 records and supports USB interface for easy data transfer and analysis. Applications for this Light Meter include workplace lighting assessment, building commissioning, security evaluation, photographic studio settings, and environmental light pollution measurement.

High-precision photodiode sensor for visible light measurement. Wide measurement range from 20 lx to 200000 lx with ±3% accuracy. Auto-ranging with lux and foot-candle units. Compact and lightweight design suitable for handheld use.

Battery life of 200 hours for extended field operation. Compliant with international standards for reliability and safety. Includes datalogger with USB interface and 7000 record capacity. Versatile for use in industrial, commercial, healthcare, educational, and photographic environments.

RS PRO continues its commitment to delivering reliable, high-quality instruments for professional and industrial use. Explore our range of test and measurement solutions to find the ideal equipment for your application needs.
