RS PRO Light Meter 200lx to 200000 lx, ±3% Accuracy Photodiode Sensor ILM201L

RS PRO ILM201L Light Meter is a precise handheld instrument designed to measure illuminance ranging from 200 lx to 200,000 lx with an accuracy of ±3% calibrated against incandescent lighting standards. It employs a photodiode sensor attached to the digital meter via a 1.5-meter flexible cable for versatile placement in various measurement scenarios.

This compact light meter features multiple measuring ranges including lux and foot-candles, supporting a wide spectrum of lighting types such as white LED, fluorescent, metal halide, high-pressure sodium, and incandescent lamps. It is ideal for applications in industrial settings, laboratories, photography studios, commercial buildings, and environmental monitoring.

The device has a 3-digit LCD display capable of a maximum reading of 1999 and includes manual zero adjustment and manual ranging to facilitate fine measurements. Its ergonomic dimensions (130 mm height, 55 mm length, and 38 mm width) and lightweight design (250 g with battery) make it highly portable for field use.

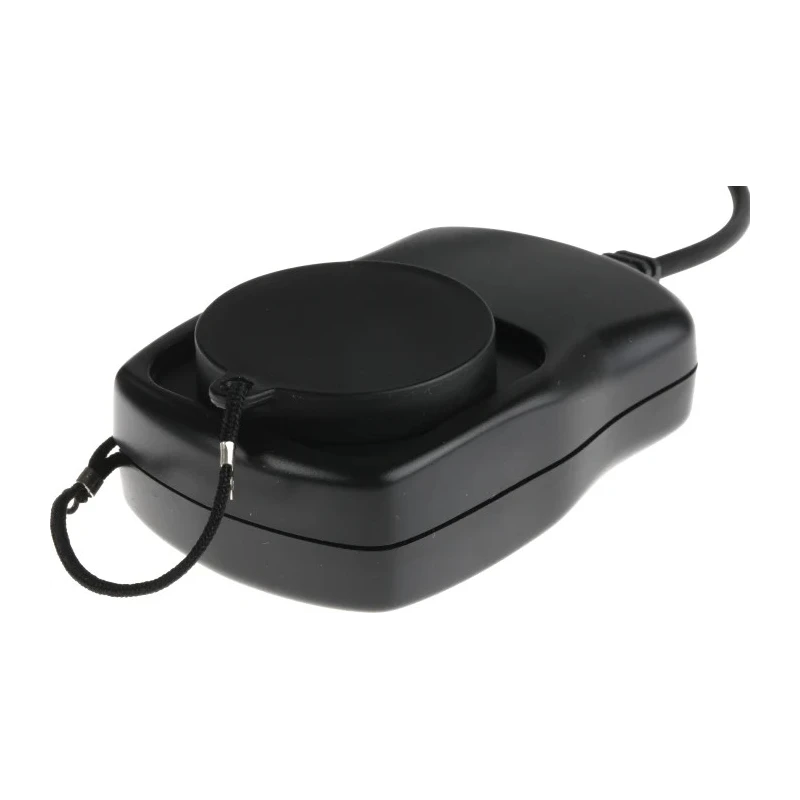

Certified to meet EN 61340-5-1:2007 and JISC1609:1993 and CNS 5119 standards, the RS PRO ILM201L provides reliable and standardized measurements. The meter’s sensor size is 80 mm by 55 mm by 25 mm, suited for precise ambient light sensing in diverse environments.

Common applications include monitoring light levels in warehouses, offices, schools, healthcare facilities, art galleries, sports venues, and photographic setups. Accurate light measurement ensures compliance with workplace standards, enhances safety, and optimizes lighting conditions for various industrial and commercial needs.

The measuring range includes 200, 2000, 20,000, and 200,000 lux as well as 20, 200, 2000, and 20,000 foot-candles. Accuracy of ±3% calibrated to a 2856 ºK incandescent lamp with ±8% for other visible light sources. Manual zero adjustment and manual ranging for enhanced measurement precision.

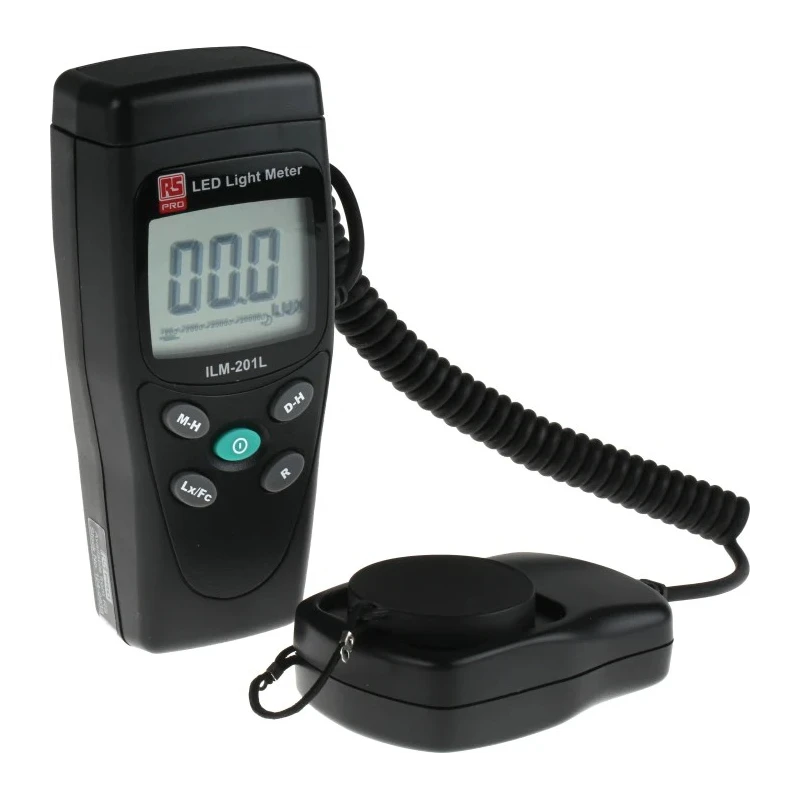

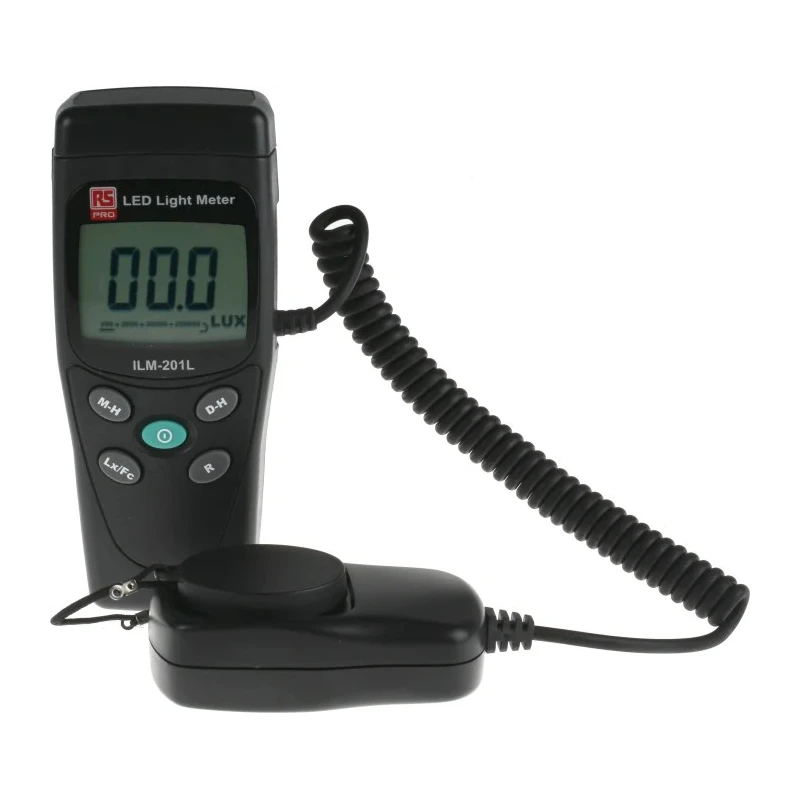

Compact dimensions with 130 x 55 x 38 mm meter size and 80 x 55 x 25 mm sensor size. The sensor is connected via a 1.5-meter flexible cable for versatile positioning. Lightweight design at 250 g including battery, facilitating portability.

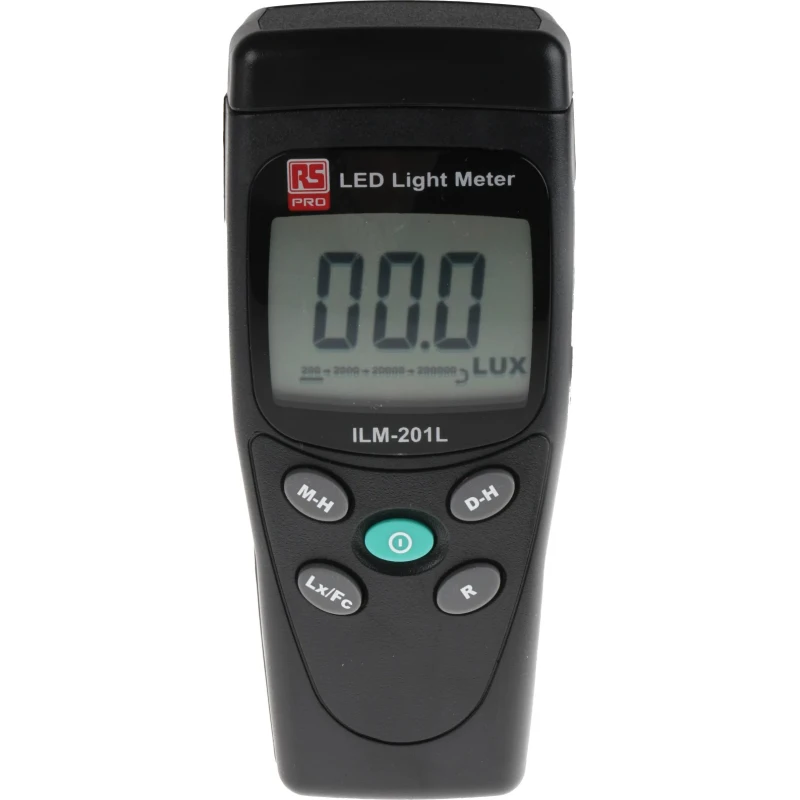

3-digit LCD display with a maximum reading of 1999 and max hold capability.

RS PRO is recognized for delivering reliable, quality test and measurement instruments suitable for varied industrial and laboratory applications. Explore the full range of RS PRO Light Meters and related quality instruments at EnvMart for your professional needs.
