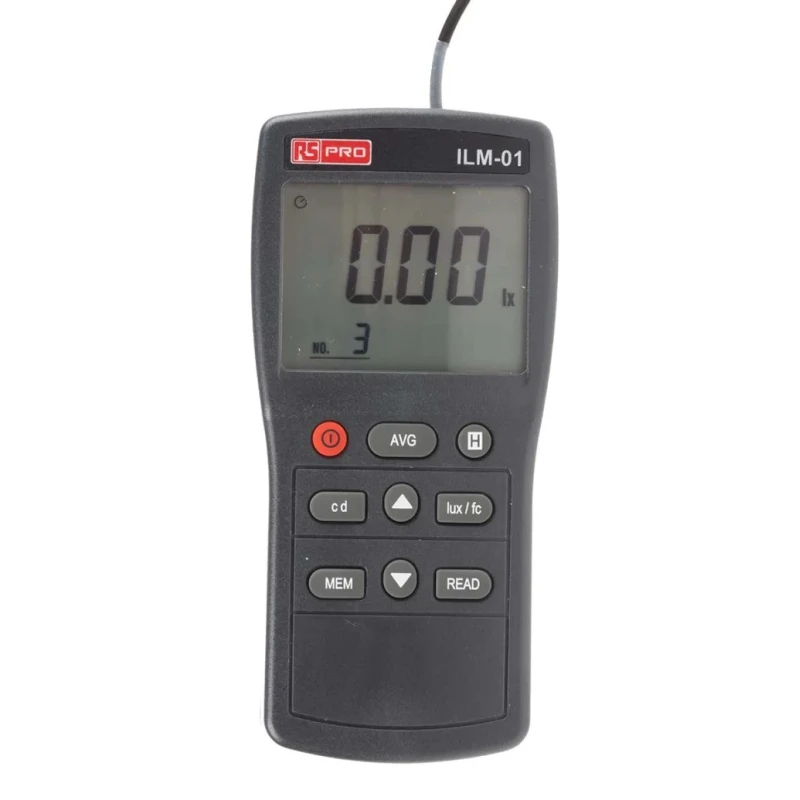

RS PRO Digital Light Meter with Photodiode Sensor, 0.01lx to 50000 lx, ±3% ± 5 Digit Accuracy, Battery Powered ILM01

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Digital Light Meter with Photodiode Sensor, 0.01lx to 50000 lx, ±3% ± 5 Digit Accuracy, Battery Powered ILM01

Name: RS PRO Digital Light Meter with Photodiode Sensor, 0.01lx to 50000 lx, ±3% ± 5 Digit Accuracy, Battery Powered ILM01
Brand: RS PRO
SKU: 191813
Price: 146.19 USD
Availability: InStock



Category Light Meter Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Resolution	0.001 Ftc
Accuracy	±3 % ± 5 Digit
Brand	RS PRO
Battery Life	100h
Battery type	AAA
Height	150mm
Length	72mm
Model	ILM01
Gross Weight	320g
Sensor Type	Photodiode
Width	35mm
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Standards/Approvals	EN 61340-5-1:2007
Maximum Light Level	50000lx
Minimum Light Level	0.01lx
Standards/ApprovalsEN 61340-5-1	2007

Key Features

Features a photodiode sensor with spectral sensitivity close to the CIE photopic curve.
Measures luminous intensity accurately with a dual 4-digit LCD display.
Offers autoranging across four measurement steps for both lux and foot-candle scales.
Includes data hold, memory, and point-average measurement functions.
Powered by AAA batteries, providing approximately 100 hours of operation.

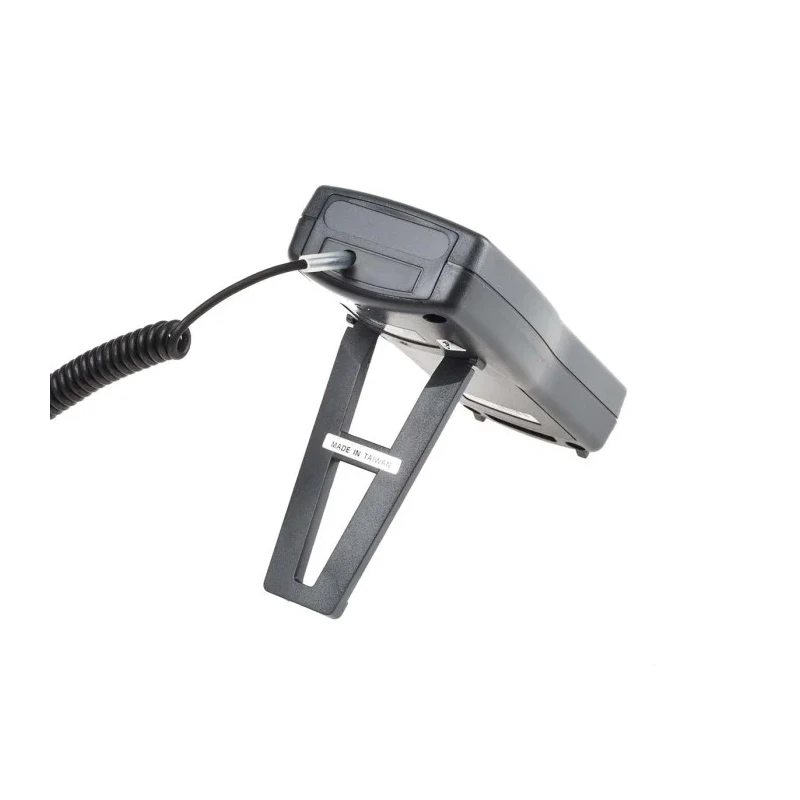

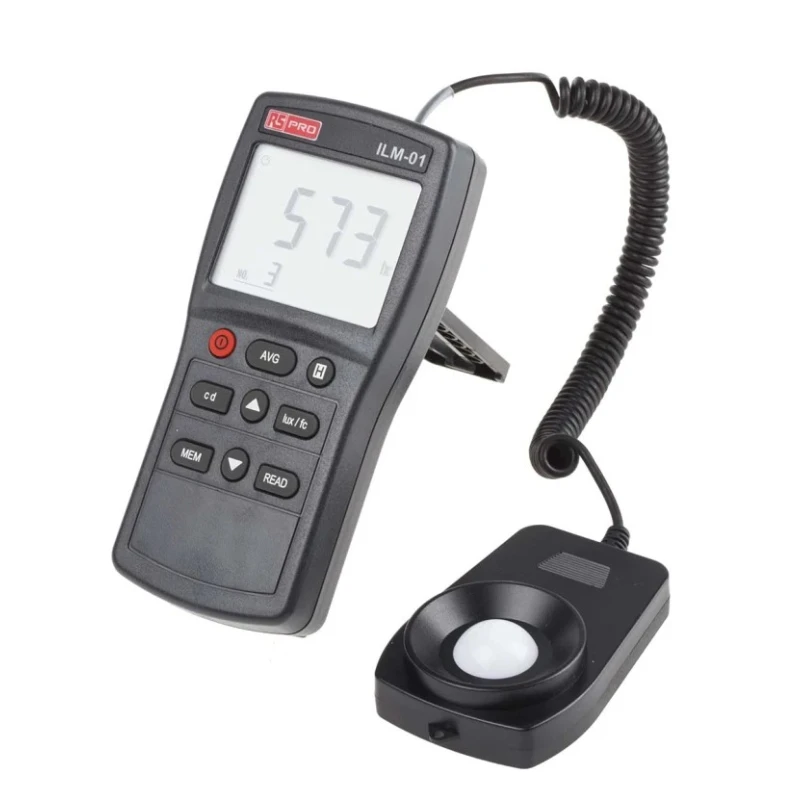

Equipped with a flexible wired sensor for easy access and a foldable stand for convenient use.
Compact handheld design with dimensions of 150 x 72 x 35 mm and weighing 320 grams.
Operates reliably between 0°C and 50°C ambient temperature range.

Product Description

RS PRO ILM01 is a precision digital light meter designed for accurate measurement of ambient light levels ranging from 0.01 lux to 50000 lux. Featuring a photodiode sensor with spectral sensitivity closely matching the CIE photopic standard curve, the ILM01 delivers precise luminous intensity measurements suitable for a wide range of environments.

Equipped with a flexible wire sensor, this light meter provides easy access to difficult measurement locations. The dual 4-digit LCD display offers clear and instant readings, with autoranging functionality across four steps for lux and foot-candle measurements. The device supports data hold and memory functions, enabling convenient recording and averaging of measurements for reliable analysis.

Powered by AAA batteries, the meter ensures long operational life of up to 100 hours. Its compact, lightweight design with dimensions of 150 mm height, 72 mm length, and 35 mm width makes it highly portable for use on-site. The device operates within ambient temperatures from 0°C to 50°C, making it suitable for various industrial and commercial settings.

Typical applications include monitoring light levels in warehouses, offices, schools, museums, hospitals, garages, stadiums, photographic studios, and other environments requiring precise light assessment. It effectively measures light sources such as white LED, fluorescent, metal halide, high-pressure sodium, and incandescent lighting.

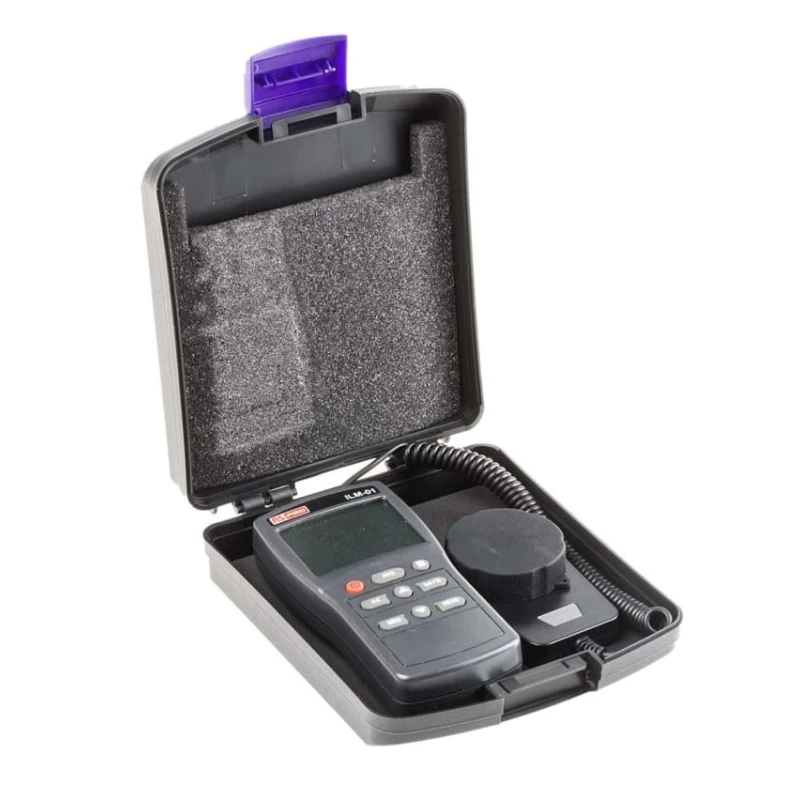

The product comes supplied with a carrying case for easy transportation and protection during storage. Built to the EN 61340-5-1:2007 standard, the ILM01 represents a trusted instrument for environmental and industrial light measurement.

Features a photodiode sensor with CIE photopic curve sensitivity. Measures light intensity from 0.01 lx to 50000 lx with ±3% ± 5 digit accuracy. Flexible sensor cable for easy placement and a foldable stand for stability.

Dual 4-digit LCD display with autoranging and data hold functions. Compact handheld device with battery operation and 100-hour battery life. Designed for use in industrial, laboratory, commercial, and photographic environments.
