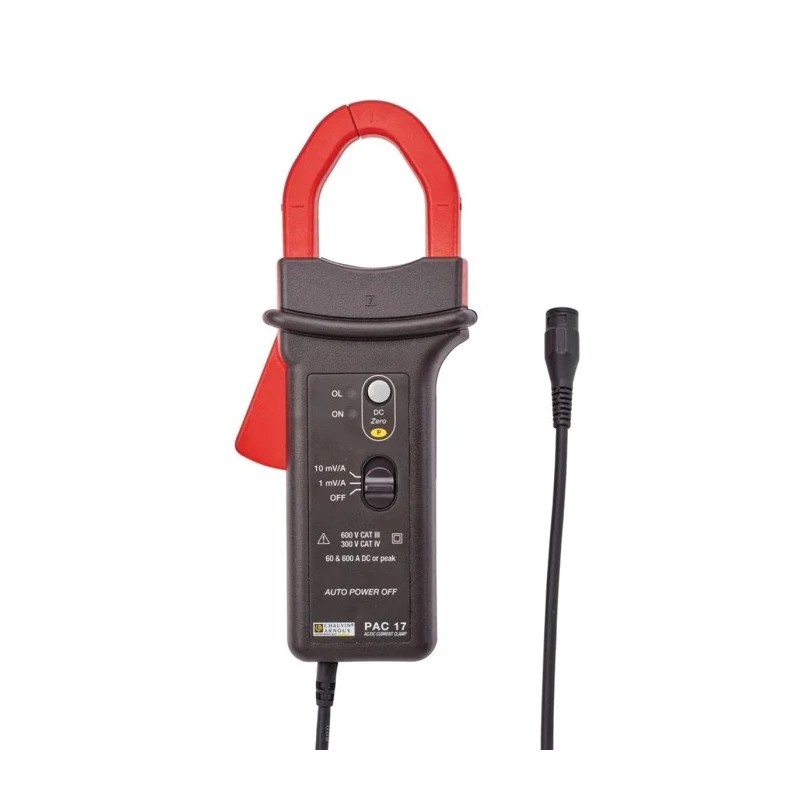

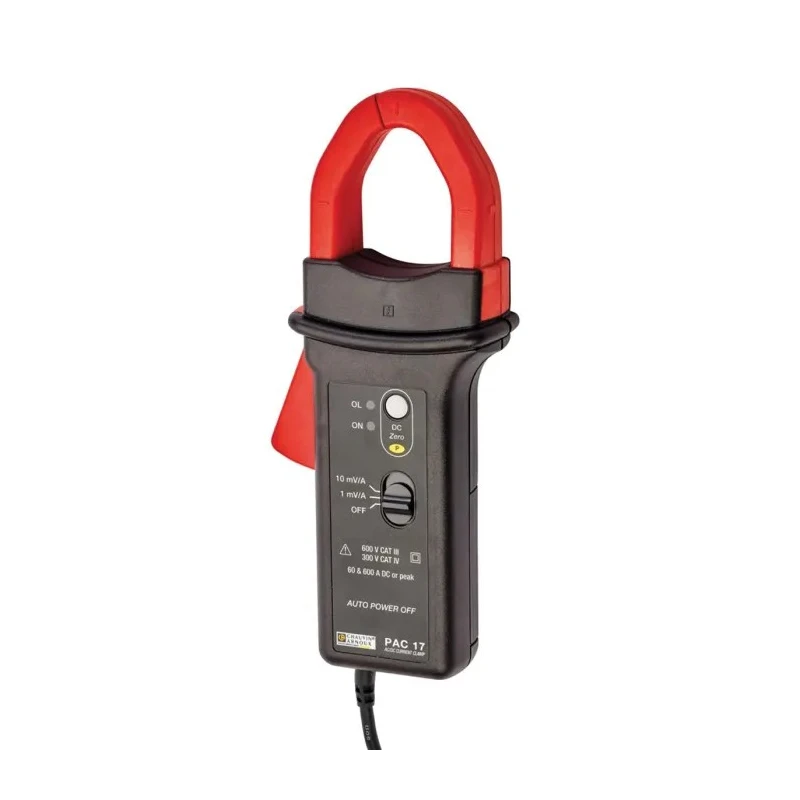

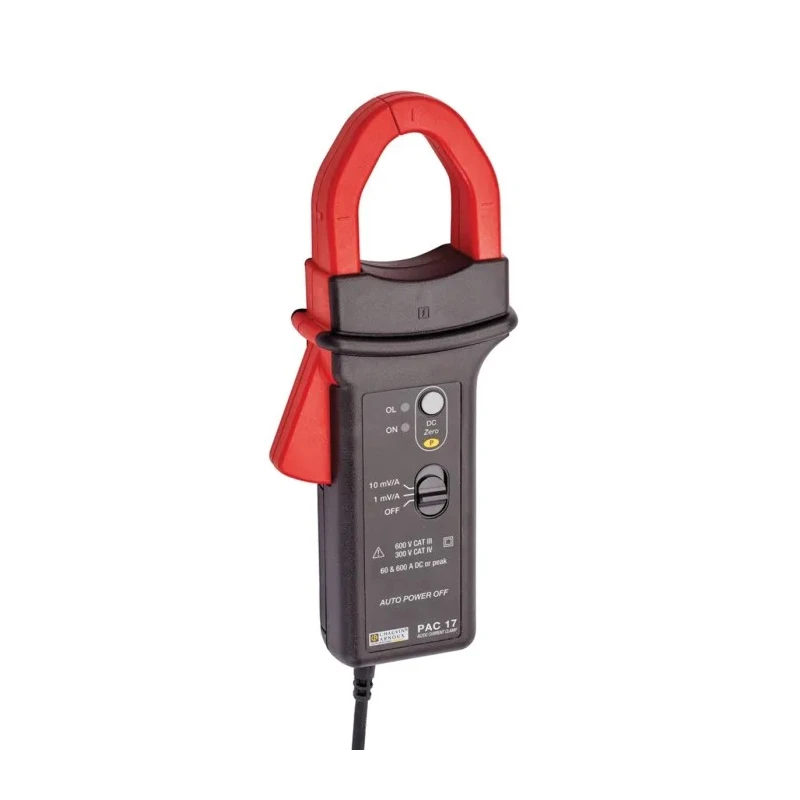

Chauvin Arnoux PAC 17 Current Clamp 600 A DC Max, AC/DC Adapter 400 A AC Max P01120117

Chauvin Arnoux P01120117 PAC 17 Current Clamp is a precision instrument designed for measuring both direct and alternating currents up to 600 A DC and 400 A AC maximum respectively, featuring an integrated AC/DC adapter for versatile use.

The current clamp uses Hall-effect technology providing a robust, reliable sensor solution suitable for electrical testing, maintenance, and troubleshooting in industrial, laboratory, and HVAC applications. It is designed to clamp cables up to 30 mm diameter and small busbars, accommodating conductors commonly found in industrial electrical systems.

Rated for CAT III and CAT IV safety standards and voltages of 300 V and 600 V respectively, it ensures compliance and protection under stringent electrical safety conditions.

This model includes a 2 m output cable terminating in an isolated BNC male connector, allowing connection to oscilloscopes or multimeters. It provides DC and AC voltage outputs with selectable sensitivities of 10 mV/A and 1 mV/A. The clamp operates within a temperature range of -10°C to 55°C with a long battery life of 50 hours.

The integrated ZeroDC adjustment simplifies calibration and there is a deactivatable automatic standby function for energy efficiency. It is engineered and manufactured in France with a focus on delivering accurate measurements with a nominal accuracy of 1.5%.

The current clamp supports both AC and DC current measurement up to 600 A DC and 400 A AC peak. Equipped with an AC/DC adapter, it allows flexible and reliable usage in various electrical testing scenarios. Features an accuracy of 1.5% suitable for accurate measurements in industrial environments.

Designed to clamp cables with maximum conductor size of 30 mm diameter. Cable length is 2 meters with a BNC jack isolated male connector for secure signal output. Operates reliably between temperatures -10°C to 55°C, supporting ambient working conditions.

Includes a battery life of 50 hours ensuring extended operational use without frequent replacements. Safety categories CAT III and CAT IV rated for working voltages of 300 V and 600 V respectively. Output signal provides DC and AC voltage with output/input ratios of 10 mV/A and 1 mV/A for sensitive detection.

Manufactured in France adhering to quality and reliability standards in precision electrical measurement tools.

This product is ideal for industrial, electrical engineering, laboratory testing, HVAC system diagnostics, and manufacturing quality control. Its robust design and precise functionality make it invaluable for professionals requiring trustworthy current measurements.
