| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.05mm |
| Length | 3.1mm |
| Model | BAT54S-E3-08 |
| Width | 1.43mm |
| Mount Type | Surface |
| Series | BAT54 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Series |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 800mV |
| Peak Reverse Recovery Time trr | 5ns |

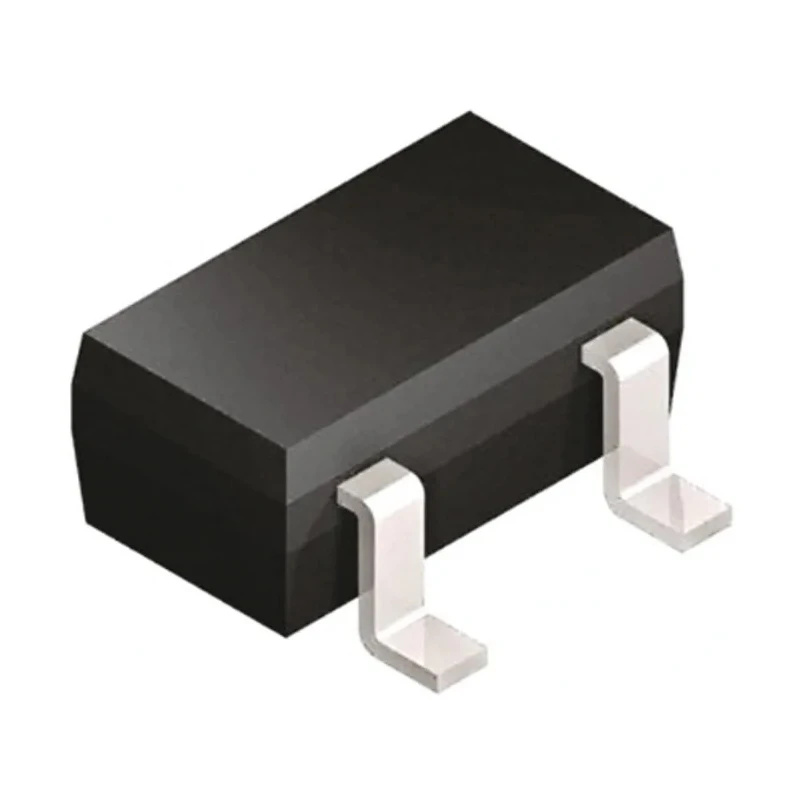

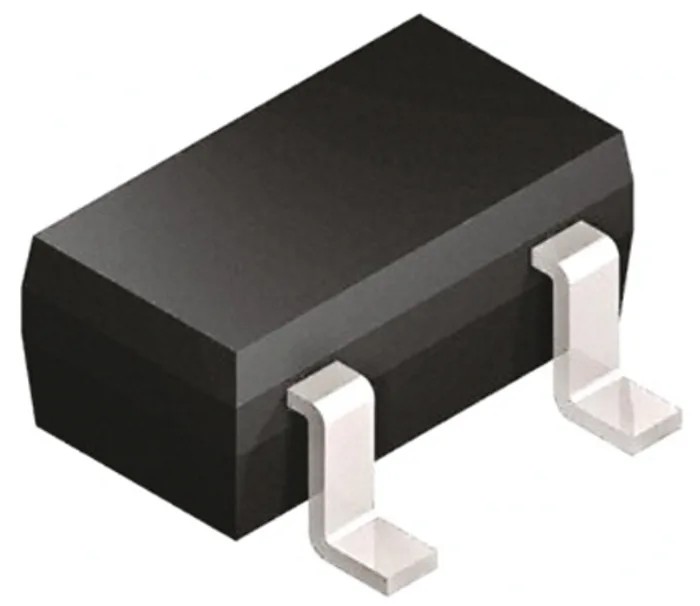

Vishay BAT54S-E3-08 is a high-performance surface mount Schottky diode designed for fast switching and low power loss in electronic circuits. Its 3-pin SOT-23 package makes it ideal for compact PCB layouts in various industrial and automotive applications.
With a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V, this diode provides reliable rectification and protection in power supply and signal conditioning circuits. The diode features an exceptionally low forward voltage drop of 800 mV, reducing conduction losses and improving efficiency.
The device offers a very fast peak reverse recovery time of 5 ns, making it suitable for applications requiring rapid switching such as switching mode power supplies (SMPS), voltage clamps, and RF detectors. It withstands peak non-repetitive forward surge currents up to 600 mA, ensuring robust operation under transient conditions.
Operating temperatures range from -55°C to 125°C, making the BAT54S-E3-08 suitable for harsh environments, including automotive electronics compliant with AEC-Q101 standards. Its compact physical dimensions - length 3.1 mm, width 1.43 mm, and height 1.05 mm - facilitate integration into dense circuit boards.
Surface mount 3-pin SOT-23 package for compact design. Maximum continuous forward current: 200 mA. Peak reverse voltage: 30 V. Low forward voltage of 800 mV for energy-efficient operation. Fast switching speed with 5 ns peak reverse recovery time.
Operating temperature range from -55°C to 125°C. Automotive grade AEC-Q101 compliant. Compact size for versatile PCB mounting. Manufactured in China under Vishay quality assurance.
This Schottky diode is ideal for use in industrial, automotive, communication, and consumer electronic devices requiring efficient rectification and high-speed switching. For additional components and related semiconductor products, explore the comprehensive categories in the EnvMart catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
