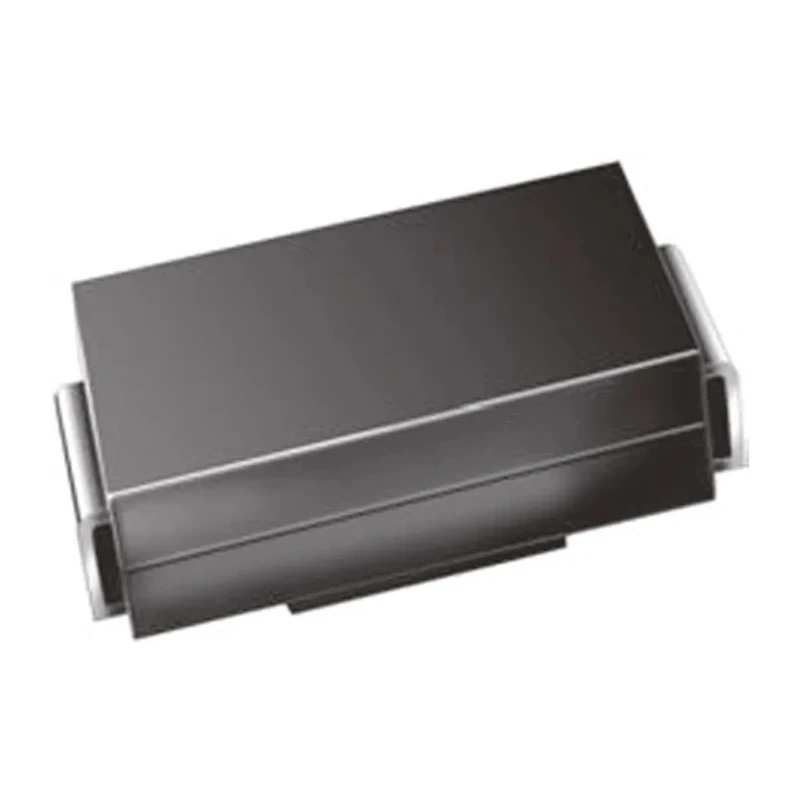

Vishay 60 V 1 A Schottky Diode, Surface Mount, 2-Pin DO-214AC Package B160-E3/61T

Free Delivery in India | Lowest Global Shipping Charges

Vishay 60 V 1 A Schottky Diode, Surface Mount, 2-Pin DO-214AC Package B160-E3/61T

Name: Vishay 60 V 1 A Schottky Diode, Surface Mount, 2-Pin DO-214AC Package B160-E3/61T
Brand: Vishay
SKU: 376255
Price: 0.09 USD
Availability: InStock



Category Schottky Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.09mm
Length	4.5mm
Model	B160-E3/61T
Width	2.79mm
Mount Type	Surface
Series	B160-E3
Maximum Operating Temperature	150°C
Package Type	DO-214AC
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	5mA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	750mV

Key Features

Low forward voltage drop of 750 mV ensures efficient power management.
Maximum continuous forward current rated at 1 ampere.
Peak repetitive reverse voltage capability up to 60 volts.
Operating temperature range from -65°C to 150°C supports wide application environments.
Fast switching and low forward surge current cancellation for high performance.
Package dimensions of 4.5 mm length, 2.79 mm width, and 2.09 mm height.
Pin count of 2 suitable for compact PCB mounting designs.
Made in China with new product condition.

Product Description

Vishay B160-E3/61T is a high-performance Schottky diode designed for efficient switching and power rectification applications. Featuring a surface mount 2-pin DO-214AC package, it supports a maximum continuous forward current of 1 ampere and peak reverse repetitive voltage of 60 volts, making it ideal for compact and reliable electronic designs.

This Schottky diode exhibits a low forward voltage drop of 750 millivolts, enhancing power efficiency by reducing heat dissipation. Its fast switching capability is crucial for applications requiring rapid response and minimal power loss. The device can operate reliably in temperatures ranging from -65°C to 150°C, supporting use in diverse industrial and commercial environments.

The compact package dimensions (4.5 mm length, 2.79 mm width, and 2.09 mm height) and two-pin configuration facilitate easy PCB mounting and integration in space-constrained designs. With a peak non-repetitive forward surge current rating of 30 amperes and a peak reverse current of 5 milliamperes, this diode supports transient conditions effectively.

Typical application areas for the B160-E3/61T include power supplies, RF circuits, voltage clamping, and general rectification tasks in consumer electronics, industrial controls, and telecommunications equipment.

Low forward voltage drop of 750 mV enhances power efficiency. Maximum forward current rating of 1 A suitable for moderate loads. Peak repetitive reverse voltage of 60 V withstands typical circuit conditions. Wide operating temperature range from -65°C to 150°C enables robust performance.

Compact DO-214AC surface mount package optimizes PCB space usage. Fast switching characteristic reduces power loss during transitions. Peak surge current of 30 A accommodates transient overloads. Manufactured in China under new condition standards.

This Vishay Schottky diode is a reliable solution for electronics manufacturing requiring efficient, compact, and fast semiconductor rectifiers. Explore more components in the Schottky Diodes & Rectifiers category at EnvMart for complementary products and technical support.
