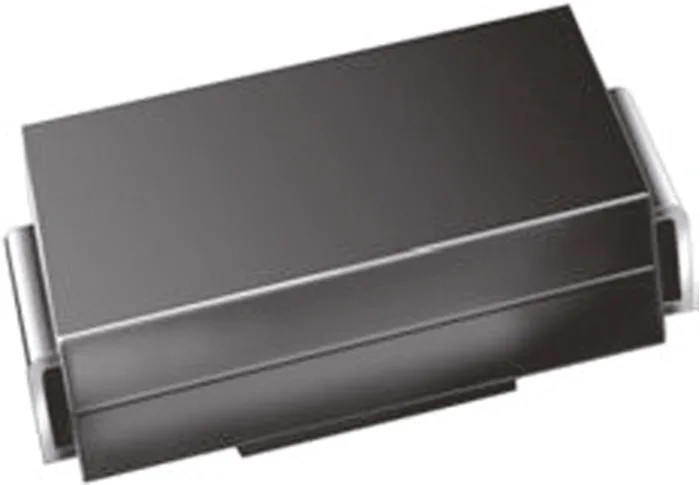

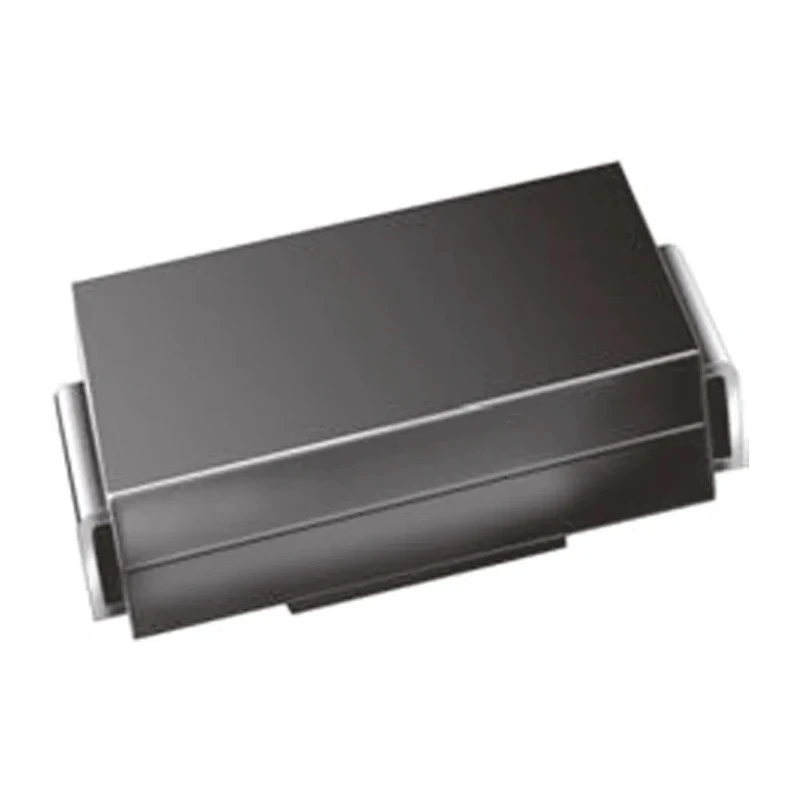

Vishay Surface Mount Schottky Diode 40 V 1 A 2-Pin DO-214AC B140-E3/61T

Vishay B140-E3/61T is a high-performance surface mount Schottky diode designed for semiconductor applications requiring fast switching and low power loss. This device operates at a maximum continuous forward current of 1 ampere and supports peak reverse repetitive voltages up to 40 volts, making it suitable for efficient rectification in power supplies and other electronic circuits.

Encapsulated within a compact DO-214AC 2-pin package, this diode features a very low forward voltage drop of 520 millivolts, which contributes to reduced heat generation and higher efficiency during operation. Its wide operating temperature range from -65 to 125 degrees Celsius allows it to perform reliably under harsh environmental conditions.

The diode exhibits a peak non-repetitive forward surge current rating of 30 amperes, enabling it to handle transient current spikes without damage. Dimensions of 2.09 mm height, 4.5 mm length, and 2.79 mm width make it ideal for dense PCB layouts in industrial, power electronics, and automotive semiconductor applications.

Vishay’s Schottky rectifiers are widely used in electronic manufacturing, power conversion systems, telecommunications, and automotive electronics for fast switching and efficient energy conversion. The B140-E3/61T model enhances productivity with its superior quality and performance characteristics.

Maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage rating of 40 volts. Low forward voltage drop of 520 millivolts. Compact DO-214AC surface mount package. Operating temperature from -65°C to 125°C.

Peak surge current of 30 amperes. Height: 2.09 mm, Length: 4.5 mm, Width: 2.79 mm. Explore Vishay Schottky Diodes and rectifiers at EnvMart for reliable components suited to industrial, laboratory, and commercial semiconductor applications.
