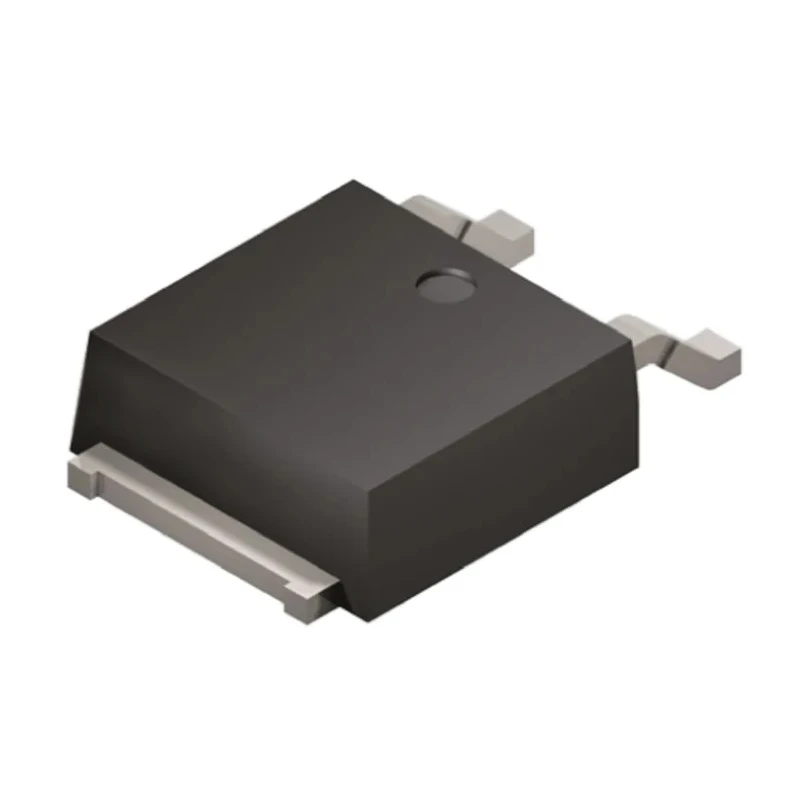

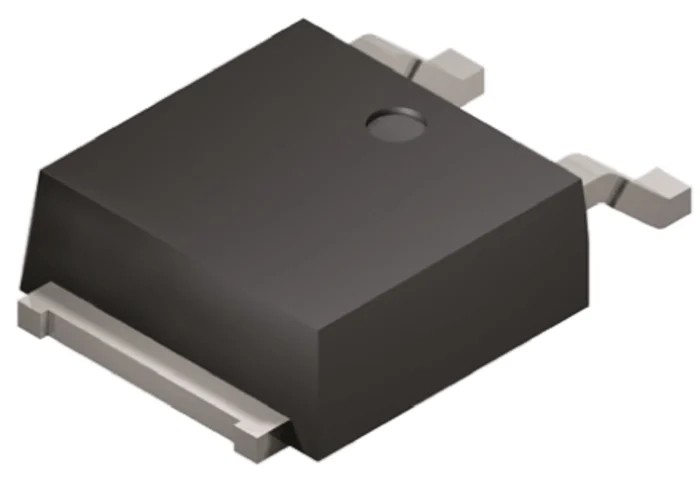

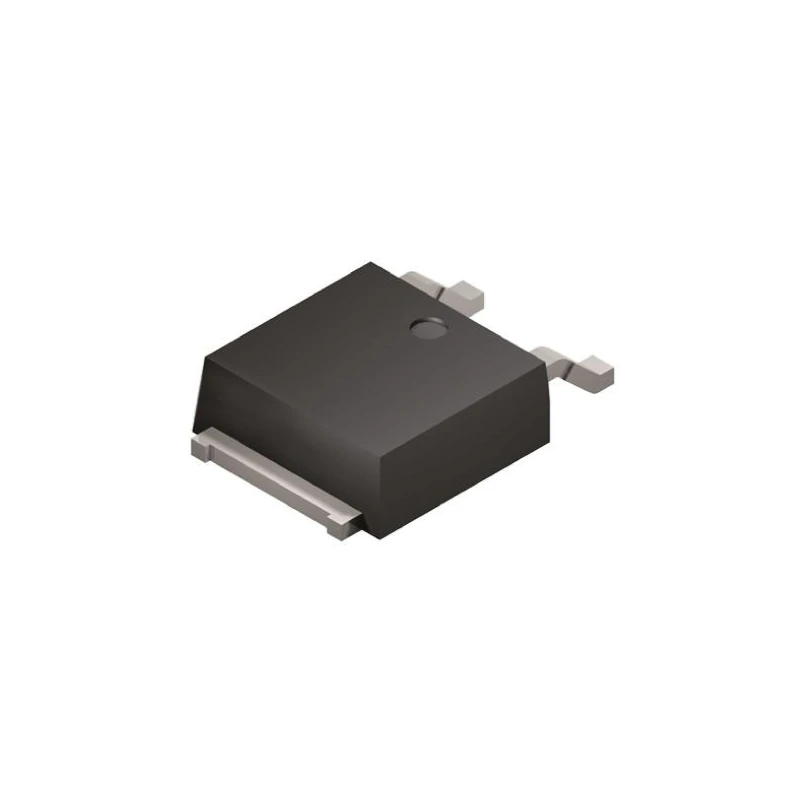

DiodesZetex Bipolar Power Transistor NPN 3 A 45 V TO-252 Surface Mount 4-Pin DPAK ZXT690BKTC

DiodesZetex ZXT690BKTC is a bipolar power NPN transistor designed for electronic and industrial power switching applications. This transistor supports a maximum DC collector current of 3 A and a collector-emitter voltage of 45 V, packaged in a compact TO-252 (DPAK) 4-pin surface mount configuration.

The transistor features a high power dissipation rating of 3.9 W, allowing it to operate effectively under continuous load conditions. Its electrical characteristics include a minimum DC current gain (hFE) of 60 and a maximum transition frequency (ft) of 150 MHz, enabling efficient amplification and high-speed switching.

With an operational temperature range from -55°C to 150°C, the ZXT690BKTC transistor maintains stable performance in demanding environments including automotive and industrial applications. The product conforms to the AEC-Q101 automotive standard, assuring high reliability and quality.

Mechanical dimensions include a length of 6.7 mm, width of 6.2 mm, and height of 2.39 mm, allowing easy integration onto printed circuit boards with surface mount technology. The 4-pin pin count facilitates secure electrical connections for complex circuitry.

This transistor is suited for use in power control circuits, voltage regulators, and other discrete semiconductor applications requiring robust switching and amplification. Maximum DC collector current of 3 amperes ensures efficient power handling.

Collector-emitter voltage rating of 45 volts supports moderate voltage circuits. NPN transistor polarity suitable for switching and amplification purposes. Compact TO-252 DPAK 4-pin package for surface mounting on PCBs. High power dissipation capability of 3.9 watts prevents overheating in continuous operation.

Operating temperature range from -55°C up to 150°C for reliable performance in harsh environments. Minimum DC current gain (hFE) of 60 enhances amplification efficiency. Maximum transition frequency of 150 MHz enables high-speed switching applications.

Automotive standard AEC-Q101 compliant, suitable for automotive and industrial systems. Stable mechanical dimensions with length 6.7 mm, width 6.2 mm, and height 2.39 mm.

These specifications make the DiodesZetex ZXT690BKTC transistor ideal for use in electronic manufacturing, automotive electronic modules, power management systems, and general semiconductor circuitry. It provides durability, quality, and performance expected from a leading semiconductor component.

Explore more high-quality Power Transistors and bipolar transistors in the EnvMart Electronics category for reliable electronic component sourcing.
