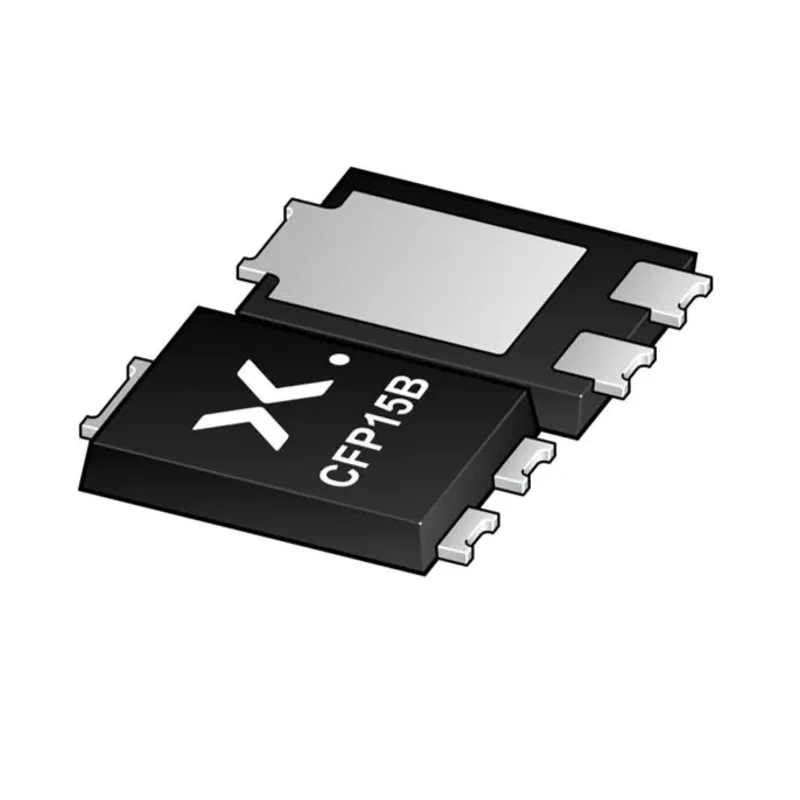

Nexperia 60 V 2 A Trench MEGA Schottky Barrier Rectifier Surface Mount CFP15B Package PMEG060T040CLPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Model | PMEG060T040CLPE-QZ |
| Mount Type | Surface |
| Series | PMEG060T040CLPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Trench MEGA Schottky |
| Peak Reverse Current Ir | 1.2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 620mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Maximum continuous forward current of 2 A ensures reliable current handling capacity.
- Peak reverse repetitive voltage of 60 V suitable for various DC applications.
- Low forward voltage drop of 620 mV maximizes power efficiency.
- Trench MEGA Schottky technology reduces leakage current and improves performance.
- Encapsulated in CFP15B plastic package with three pins for surface mounting.
- Operating temperature ranges from -55°C to 175°C for robust thermal performance.
- Peak non-repetitive forward surge current of 60 A supports high transient loads.
- Peak reverse recovery time of 12 ns minimizes switching losses.
Product Description
Nexperia PMEG060T040CLPE-QZ is a Schottky barrier rectifier featuring Trench MEGA technology, designed for high efficiency and low power loss in compact surface mount form factor. The device is housed in a CFP15B (SOT1289B) plastic package with a flat lead design to enhance heat dissipation.
This diode supports a maximum continuous forward current of 2 A and can withstand a peak reverse repetitive voltage of 60 V, making it ideal for applications requiring reliable rectification at moderate voltages. The low forward voltage of 620 mV minimizes conduction losses, improving overall circuit efficiency.
With an operating temperature range from -55°C to 175°C, this rectifier is suitable for a broad spectrum of industrial, automotive, and power supply applications. Its peak non-repetitive surge current rating of 60 A provides robustness against transient current spikes, and the fast 12 ns reverse recovery time helps reduce switching losses in high-frequency circuits.
The device is compliant with the AEC-Q101 automotive standard, certifying its use in automotive environments requiring high reliability and quality.
Typical use cases include DC-to-DC converters, freewheeling diode applications, reverse polarity protection, and power management in automotive, industrial, and consumer electronics sectors.
Maximum continuous forward current of 2 A ensures reliable current handling capacity. Peak reverse repetitive voltage of 60 V suitable for various DC applications. Low forward voltage drop of 620 mV maximizes power efficiency.
Trench MEGA Schottky technology reduces leakage current and improves performance. Encapsulated in CFP15B plastic package with three pins for surface mounting. Operating temperature ranges from -55°C to 175°C for robust thermal performance.
Peak non-repetitive forward surge current of 60 A supports high transient loads. Peak reverse recovery time of 12 ns minimizes switching losses. Certified to AEC-Q101 automotive standard for high reliability. Explore more Schottky Barrier Rectifiers and power semiconductors on EnvMart for your industrial and automotive electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this rectifier is 2 A, ensuring reliable current handling capacity.
The peak reverse repetitive voltage rating is 60 V, making it suitable for various DC applications.
The forward voltage drop is 620 mV, which helps maximize power efficiency in circuits.
It utilizes Trench MEGA Schottky technology, which reduces leakage current and improves performance.
The operating temperature range is from -55°C to 175°C, providing robust thermal performance.
The peak non-repetitive forward surge current rating is 60 A, supporting high transient loads.
The peak reverse recovery time is 12 ns, which minimizes switching losses in high-frequency circuits.
It is encapsulated in a CFP15B plastic package, designed for surface mounting with three pins.
Yes, it is compliant with the AEC-Q101 automotive standard, certifying its use in automotive environments.
This rectifier has a pin count of 3, suitable for surface mounting applications.
It uses a single diode configuration, typical for Schottky barrier rectifiers.
Typical applications include DC-to-DC converters, freewheeling diode applications, and reverse polarity protection.
