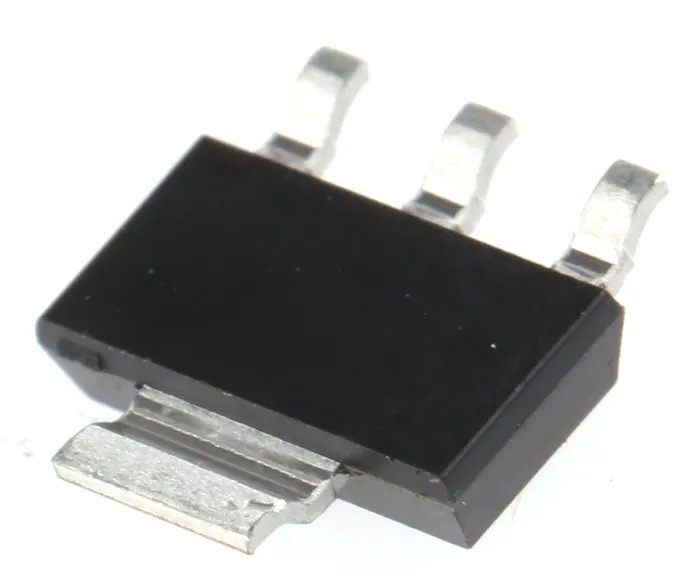

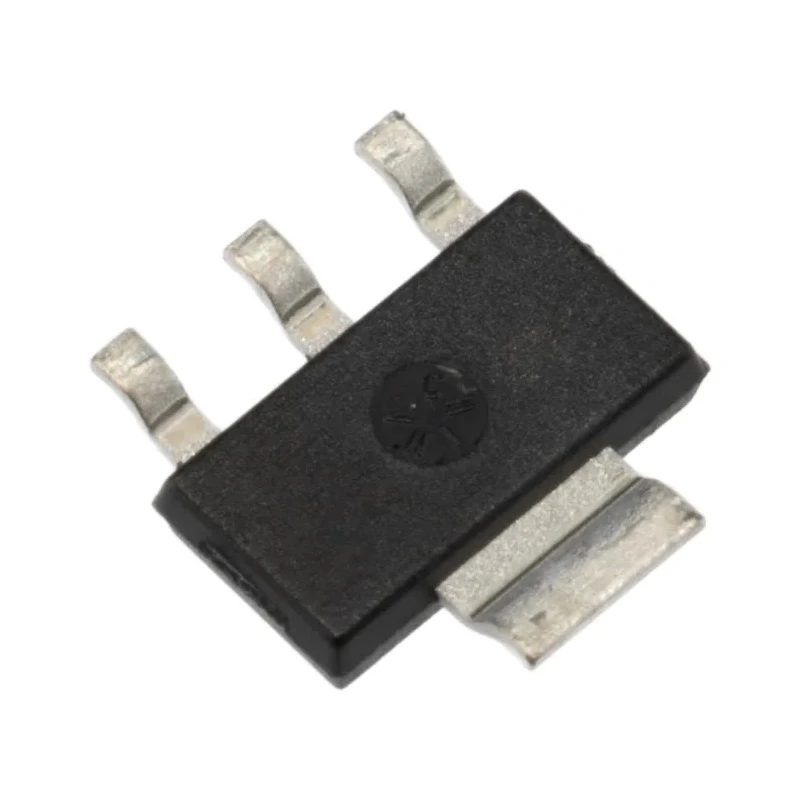

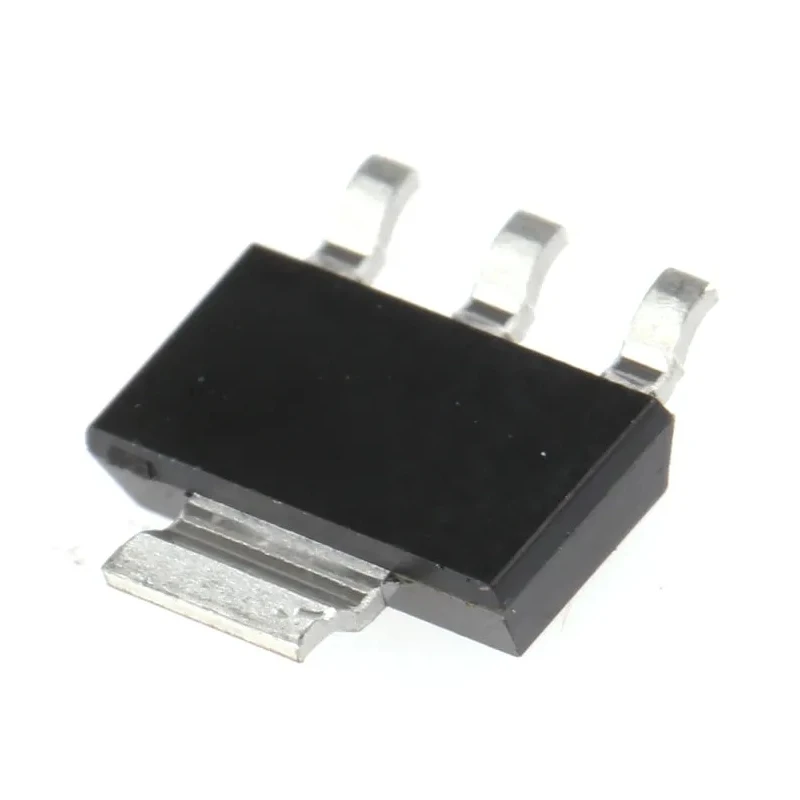

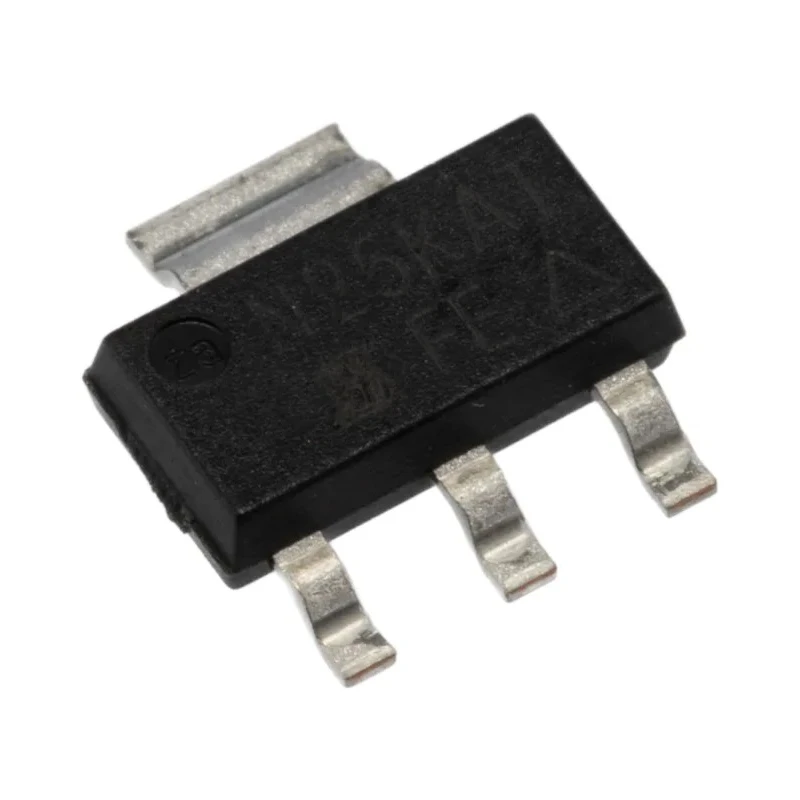

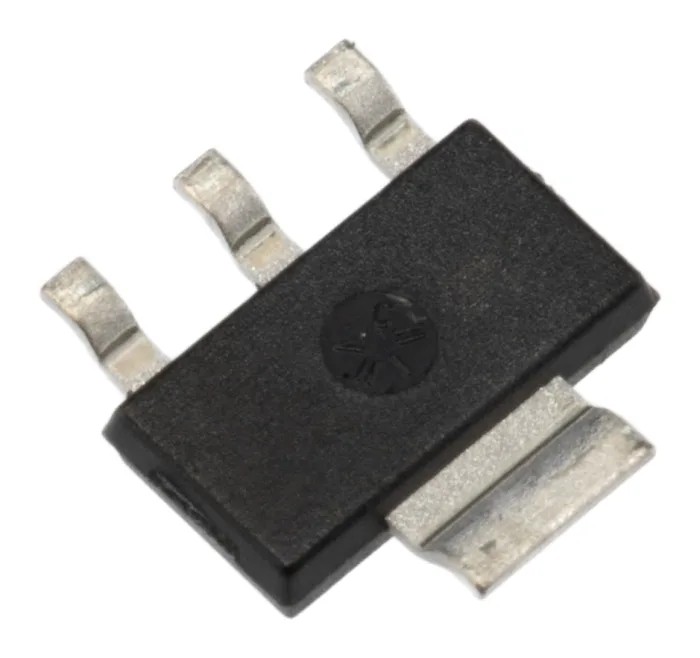

Vishay P-Channel Power MOSFET, -1.8 A Drain Current, -60 V Drain Source Voltage, 4-Pin SOT-223 Surface Mount IRFL9014TRPBF

Free Delivery in India | Lowest Global Shipping Charges

Vishay P-Channel Power MOSFET, -1.8 A Drain Current, -60 V Drain Source Voltage, 4-Pin SOT-223 Surface Mount IRFL9014TRPBF

Name: Vishay P-Channel Power MOSFET, -1.8 A Drain Current, -60 V Drain Source Voltage, 4-Pin SOT-223 Surface Mount IRFL9014TRPBF
Brand: Vishay
SKU: 356146
Price: 0.5 USD
Availability: InStock



Category Power MOSFET Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.45mm
Length	6.7mm
Model	IRFL9014TRPBF
Width	3.7mm
Mount Type	Surface
Series	IRFL9014
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	710-4654Brand: VishayManufacturers Part No.: IRFL9014TRPBF
Pin Count	4
Channel Type	Type P
Maximum Continuous Drain Current Id	-1.8A
Maximum Drain Source Voltage Vds	-60V
Maximum Drain Source Resistance Rds	500mΩ
Channel Mode	Enhancement
Maximum Power Dissipation Pd	3.1W
Typical Gate Charge Qg @ Vgs	12nC
Maximum Gate Source Voltage Vgs	-20, +20V
Forward Voltage Vf	-5.5V

Key Features

Supports switching up to -60 V for handling higher voltages.
Continuous drain current of -1.8 A suitable for steady load handling.
500 mΩ maximum drain source resistance reduces conduction losses.
Typical gate charge of 12 nC enables fast gate transitions.
Forward voltage of -5.5 V for predictable conduction behavior.
Maximum power dissipation of 3.1 W allows sustained thermal loading.
Operates reliably across a temperature range from -55°C to 150°C.
Compact 4-pin SOT-223 surface mount package facilitates PCB layout.

Product Description

Vishay IRFL9014TRPBF is a P-Channel enhancement mode power MOSFET built for surface-mount switching and power management tasks. It features a maximum drain source voltage of -60 V and continuous drain current of -1.8 A, making it suitable for a variety of industrial and electronic applications requiring moderate power handling in a compact footprint.

This MOSFET operates efficiently with a low maximum drain source resistance of 500 mΩ, reducing conduction losses and improving overall power efficiency. Its typical gate charge of 12 nC allows for faster switching speeds, enhancing performance in dynamic circuits.

The device’s forward voltage of -5.5 V assists in predictable forward conduction behaviors, while a maximum power dissipation of 3.1 W supports sustained thermal loading in continuous operation. With an operating temperature range from -55°C to 150°C, the IRFL9014TRPBF can withstand harsh environmental conditions common in industrial and automotive electronics.

The IRFL9014TRPBF comes in a compact 4-pin SOT-223 surface mount package, enabling easy integration on densely packed PCBs. It is ideal for low-side and high-side switching applications, load switching in battery-powered equipment, level shift and gate-drive circuits, as well as power-rail polarity control in electronically controlled systems.

Its robust construction and reliable thermal performance make it suitable for industrial, electronic, HVAC, and manufacturing applications requiring compact and efficient power switching components.

Supports switching up to -60 V for handling higher voltages. Continuous drain current of -1.8 A suitable for steady load handling. 500 mΩ maximum drain source resistance reduces conduction losses. Typical gate charge of 12 nC enables fast gate transitions.

Forward voltage of -5.5 V for predictable conduction behavior. Maximum power dissipation of 3.1 W allows sustained thermal loading. Operates reliably across a temperature range from -55°C to 150°C. Compact 4-pin SOT-223 surface mount package facilitates PCB layout.

Suitable for low-side and high-side switching applications in battery-powered equipment. Ideal for thermally constrained board designs requiring compact components. Explore Vishay Power MOSFET offerings and other discrete semiconductors at EnvMart for reliable industrial and electronic component solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum drain source voltage for this model is -60 V, making it suitable for handling higher voltages in various applications.

This MOSFET has a continuous drain current rating of -1.8 A, which is suitable for steady load handling in power management tasks.

The maximum power dissipation for this model is 3.1 W, allowing for sustained thermal loading during continuous operation.

The typical gate charge for the IRFL9014TRPBF is 12 nC, which enables fast gate transitions and enhances performance in dynamic circuits.

The dimensions of the SOT-223 package are 6.7 mm in length, 3.7 mm in width, and 1.45 mm in height.

The IRFL9014TRPBF operates reliably across a temperature range from -55°C to 150°C, making it suitable for harsh environments.

This MOSFET has a maximum drain source resistance of 500 mΩ, which helps in reducing conduction losses.

The forward voltage for this model is -5.5 V, which aids in predictable conduction behavior.

The SOT-223 package of this MOSFET features a pin count of 4, facilitating easy integration into circuit designs.

This model complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.

The IRFL9014TRPBF features a P-channel type, which is suitable for various switching applications.

This model is suitable for low-side and high-side switching applications, load switching in battery-powered equipment, and power-rail polarity control.
