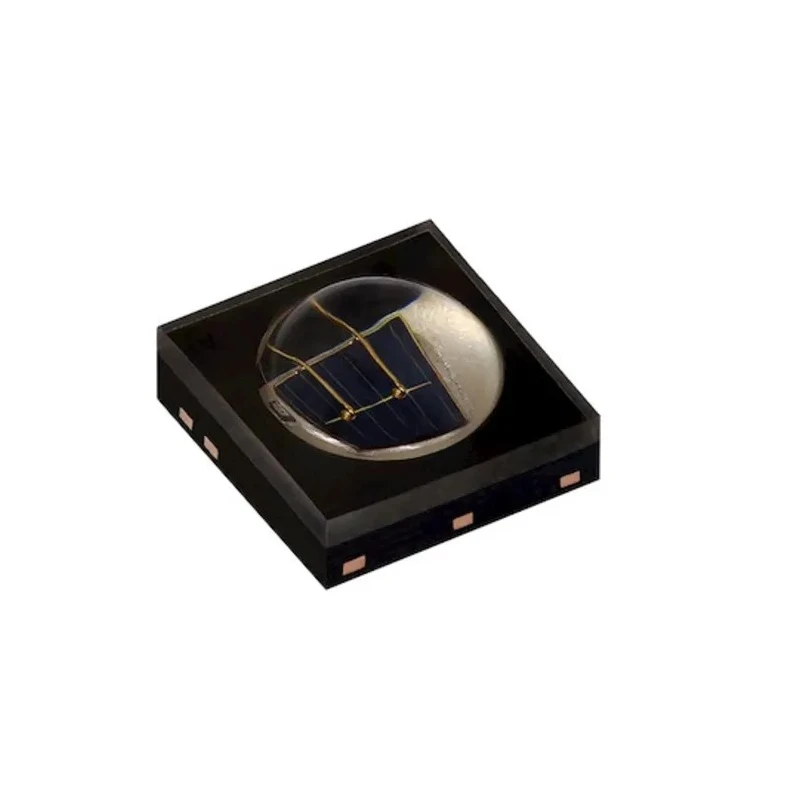

Vishay High Power Infrared Emitting Diode Surface Mount 860 nm 5 V 2100 mW Radiant Flux VSMA1085600

Vishay VSMA1085600 is a high power infrared emitting diode designed for demanding industrial, electronic component manufacturing, and optoelectronic applications. It operates at a peak wavelength of 860 nm within the infrared spectrum.

The device features a double stack emitter chip construction which allows it to achieve a radiant flux of 2100 mW and radiant intensity of 715 mW/sr, delivering intense and focused IR light output. The chip size of 42 mil supports continuous 1.5 A DC operation and can withstand pulsed currents up to 5.0 A, making it suitable for applications requiring high transient performance.

Dimensionally, the diode measures 3.4 mm x 3.4 mm in length and width, with a height of 1.8 mm. Its surface mount package with lens design provides a 60° angle of half intensity, enabling directed IR emission for sensing, detection, and illumination systems.

Low thermal resistance values from 6 K/W to 9 K/W ensure effective heat dissipation, while the product meets important industry standards including ANSI / ESDA / JEDEC JS-001 and J-STD-020, guaranteeing robustness and quality. It supports lead-free reflow soldering and comes packaged on Tape & Reel, facilitating automated assembly processes.

The diode supports a maximum supply voltage of 5 V and offers robust ESD protection up to 5 kV, suitable for use in harsh industrial and electronic environments. With a floor life of 168 hours and MSL 3 rating, it provides reliable inventory management for manufacturers.

The double stack emitter chip delivers highest radiant power for demanding applications. Chip size supports 1.5 A DC operation and 5.0 A pulsed current capacity. Compact 3.4 x 3.4 x 1.8 mm dimensions with low thermal resistance.

High radiant flux of 2100 mW and radiant intensity of 715 mW/sr. Focused 60° angle of half intensity emission. Compliant with ANSI / ESDA / JEDEC JS-001 and J-STD-020 standards. Lead-free reflow soldering with Tape & Reel packaging.

Maximum supply voltage of 5 V suitable for surface mount PCB applications. ESD protection up to 5 kV for industrial durability. 168 hours floor life with MSL 3 rating for storage reliability.

This component is ideal for use in electronic devices requiring reliable, high-intensity IR light, including sensors, communication devices, and industrial automation systems. It fits applications in electronics manufacturing, instrumentation, automotive sensors (non-automotive standard-compliant), and general-purpose IR LED implementations.
