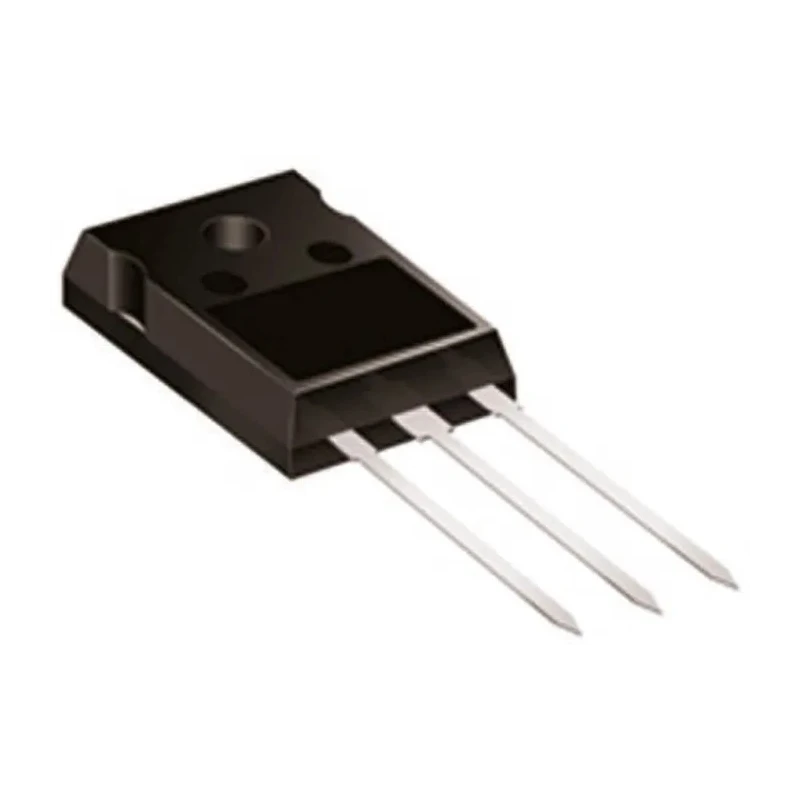

DiodesZetex Switching Diode, Common Cathode, Silicon Junction, 20 A Max Forward Current, 150 V Peak Reverse SBR20150CTFP

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Switching Diode, Common Cathode, Silicon Junction, 20 A Max Forward Current, 150 V Peak Reverse SBR20150CTFP

Name: DiodesZetex Switching Diode, Common Cathode, Silicon Junction, 20 A Max Forward Current, 150 V Peak Reverse SBR20150CTFP
Brand: DiodesZetex
SKU: 104429
Price: 1.02 USD
Availability: InStock



Category Diodes Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	16.07mm
Length	10.31mm
Model	SBR20150CTFP
Width	4.9mm
Mount Type	Through Hole
Maximum Operating Temperature	175°C
Package Type	ITO-220AB
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS, UL 94V-0 (Case Material Flammability)
Pin Count	3
Diode Configuration	Common Cathode
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	880mV
Maximum Forward Current If	20A
Maximum Peak Reverse Repetitive Voltage Vrrm	150V

Key Features

This diode has a peak repetitive reverse voltage rating of 150 V.
It is housed in a durable ITO-220AB through-hole package with 3 pins.
The maximum forward voltage is 880 mV, ensuring efficient switching performance.
The device operates reliably within a temperature range of -65°C to 175°C.
The peak non-repetitive forward surge current rating is 150 A for handling transient current spikes.
The diode's compact dimensions are 16.07 mm height, 10.31 mm length, and 4.9 mm width.
It complies with RoHS and UL 94V-0 flammability standards for safe use in electronic systems.

Product Description

DiodesZetex SBR20150CTFP is a high-performance switching diode designed with a common cathode silicon junction configuration. Rated for a maximum forward current of 20 amperes and a peak repetitive reverse voltage of 150 volts, this diode offers reliable switching capabilities for demanding semiconductor applications.

Encapsulated in a 3-pin ITO-220AB through-hole package, it ensures easy PCB mounting and robust physical protection. The diode has a low maximum forward voltage of 880 millivolts, facilitating efficient conduction and minimal power loss.

This component is engineered to operate over a broad temperature range from -65°C to 175°C, making it suitable for harsh industrial, automotive, and power electronics environments. The peak non-repetitive forward surge current rating of 150 amperes allows the device to handle transient current surges effectively without damage.

Its physical dimensions - height 16.07 mm, length 10.31 mm, and width 4.9 mm - support compact and space-efficient circuit designs. Additionally, the diode meets RoHS and UL 94V-0 standards, assuring compliance with environmental and safety requirements.

This diode features a common cathode silicon junction configuration ideal for switching applications. The maximum forward current capability is 20 A, suitable for heavy-duty use cases. Peak repetitive reverse voltage rating of 150 V protects circuits from high voltage spikes.

Through-hole ITO-220AB package ensures secure mounting and thermal performance. Wide operating temperature range from -65°C to 175°C for reliable industrial use. RoHS and UL 94V-0 flammability ratings verify compliance with safety and environmental standards.

Peak forward surge current of 150 A allows handling transient overloads.

Applications of the DiodesZetex SBR20150CTFP include power rectification, voltage clamping, and switching in power supplies, automotive electronics, and industrial control systems. Its robust specifications and certifications make it a dependable component for advanced electronics manufacturing and repair.

Explore a broad selection of semiconductors including this switching diode within the Semiconductor category at EnvMart.
