| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | RS1FLK-M3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SMF |
| Sub Type | General Purpose Diode |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 500ns |
| Maximum Forward Current If | 1A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 800V |

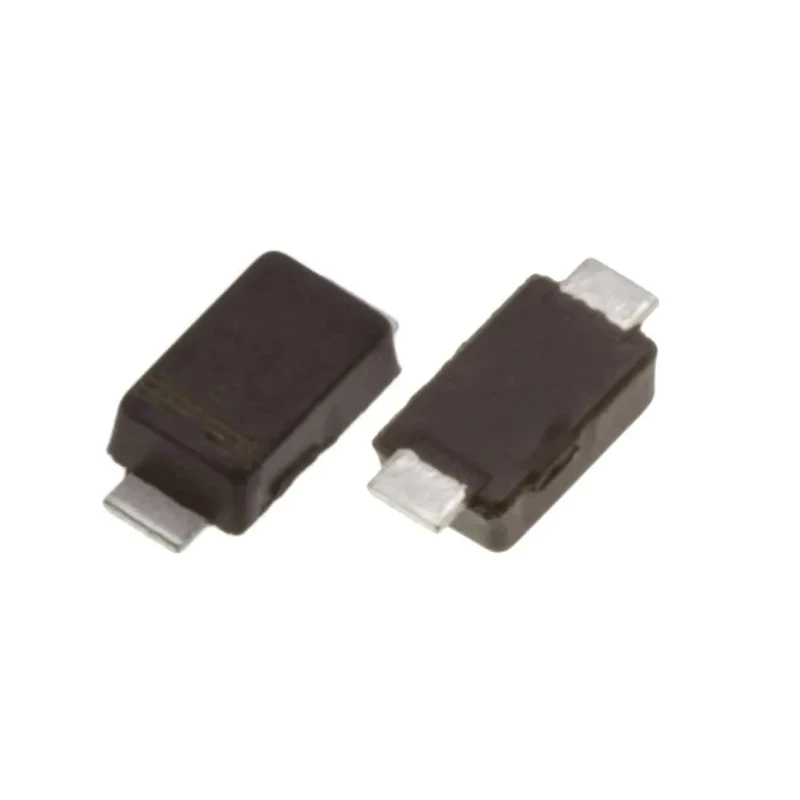

Vishay RS1FLK-M3/H is a single switching diode designed for surface mount installation in electronic circuits requiring efficient rectification and reliability. This general purpose diode features a maximum forward current of 1A, peak reverse repetitive voltage rating of 800V, and a fast reverse recovery time of 500ns, making it ideal for power supply, inverter, converter, and freewheeling diode applications.
Single switching diode configuration for versatile circuit integration. Rated for 1A maximum forward current, suitable for moderate power management tasks. Compact SMF package with 2-pin design allows easy automated placement and optimized PCB layout.
Glass passivated junction and matte tin plated leads for high reliability and solderability. Supports a maximum forward voltage of 1.2V and a surge current capability of 35A. Wide operating temperature range from -55°C to 150°C offers resilience in harsh electronic environments.
Peak reverse recovery time of just 500ns enables fast switching in demanding applications.
This diode meets MSL level 1 standards and is compatible with SOD-123W package outlines, offering flexibility in design for engineers. It is particularly suitable for use in consumer, telecom, and industrial electronics where robust rectification and high-speed switching are required.
The Vishay RS1FLK-M3/H diode is commonly used in industrial power rectification, laboratory electronics, manufacturing circuits, and commercial telecommunication systems. Its reliable performance ensures consistent operation in critical systems.
