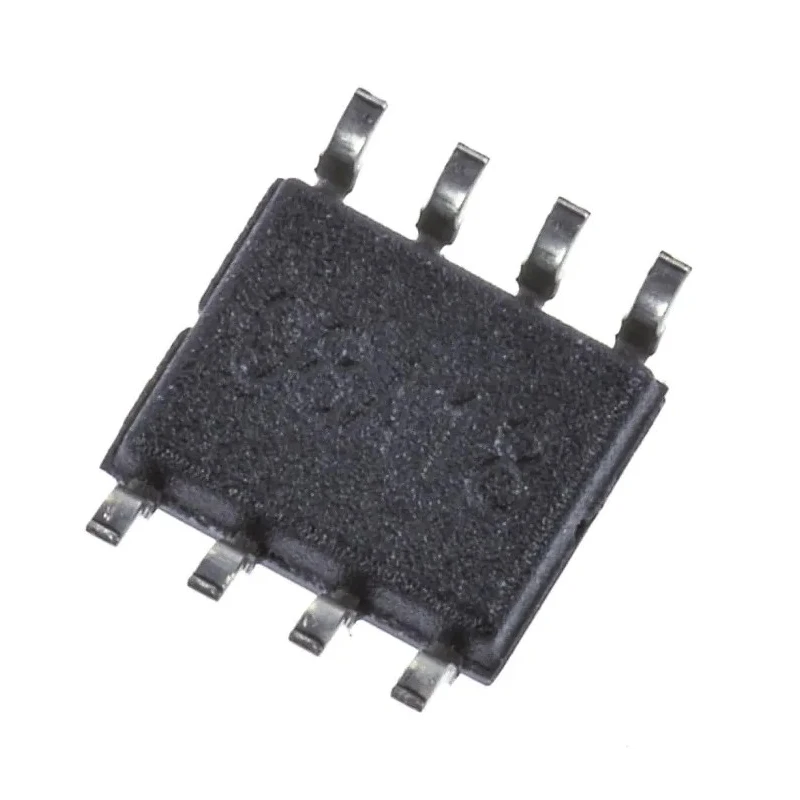

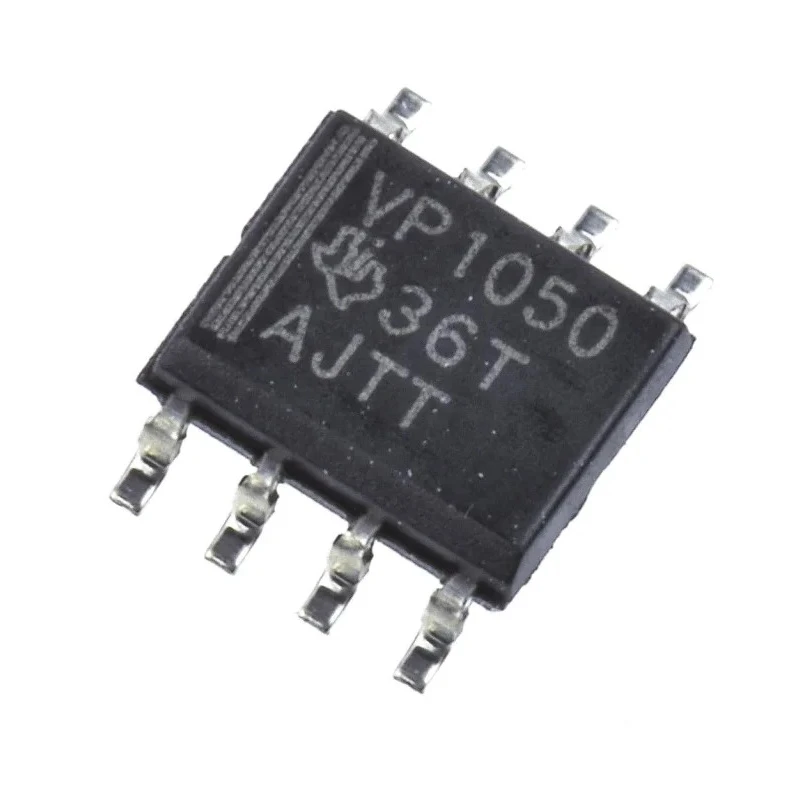

Texas Instruments CAN Transceiver 1 Mbps, 8-Pin SOIC SN65HVD1050D
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | SN65HVD1050D |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | SN65HVD1050 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOIC |
| Sub Type | CAN Transceiver |
| Minimum Operating Temperature | -40°C |
| Interface Type | ISO 11898 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.75V |
| Supply Current | 70mA |
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 1 |
Key Features
- Supports a maximum data rate of 1 Mbps for efficient data transfer.
- Features 8-pin SOIC surface mount package suitable for compact PCB layouts.
- Operates with a supply voltage range from 4.75V to 5.25V ensuring compatibility with standard power supplies.
- Includes robust ESD protection to enhance reliability in harsh electrical environments.
- Operating temperature range of -40°C to 150°C making it suitable for automotive and industrial environments.
- Passes the AEC-Q100 automotive quality standard ensuring high durability and reliability.
- Low supply current of 70mA for energy-efficient operation.
- Designed to comply with ISO 11898 CAN physical layer interface standards.
Product Description
Texas Instruments SN65HVD1050D is a high-performance CAN Transceiver operating at 1 Mbps in an 8-pin SOIC surface mount package. It is engineered specifically for automotive and industrial Controller Area Network (CAN) bus communication applications requiring robust, efficient, and reliable data exchange.
This device supports a maximum data rate of 1 Mbps, suitable for modern automotive communication networks. It operates within a voltage range of 4.75V to 5.25V and features low supply current consumption of 70mA.
Designed for harsh mechanical and electrical environments, the SN65HVD1050D includes ESD protection and functions reliably over a wide temperature range from -40°C to 150°C. It adheres to the ISO 11898 physical layer standard for CAN bus interfaces and meets the rigorous AEC-Q100 automotive quality standard.
The compact SOIC 8-pin packaging with dimensions 4.9mm length, 3.91mm width, and 1.58mm height enables system designers to incorporate it easily into high-density PCB layouts. Supports 1 Mbps maximum data rate for CAN bus communication.
8-pin SOIC surface mount package for space-efficient mounting. Wide voltage supply range: 4.75V to 5.25V. Low supply current of 70mA for low power consumption. ESD protected for enhanced device reliability. Operating temperature from -40°C to 150°C, suitable for automotive and industrial environments.
Meets AEC-Q100 automotive standard for quality assurance. Compact dimensions of 4.9mm x 3.91mm x 1.58mm. Complies with ISO 11898 CAN bus physical layer standard.
This transceiver is ideal for automotive CAN applications, industrial control systems, and other embedded systems requiring a reliable CAN communication interface. It enables microcontrollers and devices to communicate over a CAN bus without a host computer efficiently.
Explore the Electronics & Electricals category at EnvMart for a wide range of semiconductor components and CAN Interface ICs to complement your system design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 1 Mbps, suitable for efficient data transfer in CAN bus communication applications.
It operates with a supply voltage range from 4.75V to 5.25V, ensuring compatibility with standard power supplies.
The transceiver has compact dimensions of 4.9mm in length, 3.91mm in width, and 1.58mm in height, making it suitable for high-density PCB layouts.
It functions reliably over a wide temperature range from -40°C to 150°C, making it suitable for both automotive and industrial environments.
This unit comes in an 8-pin SOIC surface mount package, which is designed for space-efficient mounting on PCBs.
Yes, it includes robust ESD protection to enhance reliability in harsh electrical environments.
It passes the AEC-Q100 automotive quality standard, ensuring high durability and reliability for automotive applications.
The supply current is 70mA, which contributes to its energy-efficient operation.
It complies with the ISO 11898 CAN physical layer interface standards, ensuring compatibility with CAN bus systems.
This model includes one transceiver, designed specifically for CAN bus communication applications.
It is ideal for automotive CAN applications, industrial control systems, and other embedded systems requiring a reliable CAN communication interface.
The SN65HVD1050D is designed for surface mounting, allowing for easy integration into compact PCB layouts.
