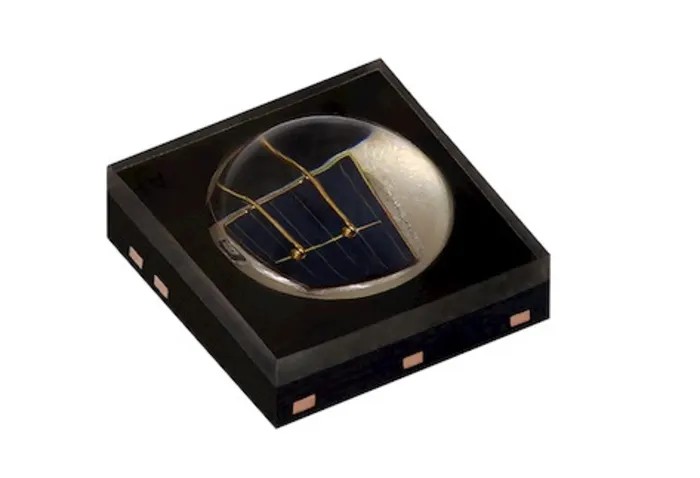

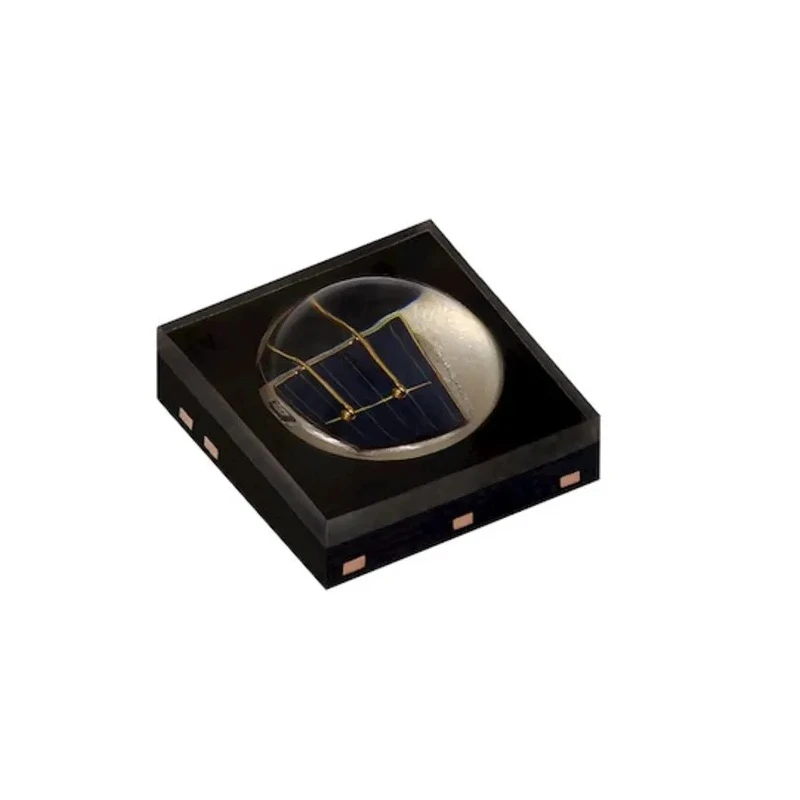

Vishay High Power Infrared Emitting Diode Surface Mount 860 nm 5V 2100mW Radiant Flux VSMA1085600
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VSMA1085600 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | SurfLightTM |
| Package Type | Surface Mount |
| Standards/Approvals | ANSI / ESDA / JEDEC JS-001, J-STD-020 |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 860nm |
| Radiant Flux | 2100mW |
| Angle of half intensity | 60° |
| Radiant Intensity | 715mW/sr |
Key Features
- This surface mount device features a 60° angle of half intensity for focused infrared emission.
- The diode is designed for a maximum supply voltage of 5V ensuring reliable operation.
- It offers a radiant flux of 2100 mW and radiant intensity of 715 mW/sr for high power applications.
- Packaged in tape and reel, it supports automated surface mount assembly.
- The diode incorporates advanced double stack emitter chip technology for superior radiant power.
- Its robust surface mount form factor measures 3.4 x 3.4 x 1.8 mm (L x W x H).
- Complies with ANSI, ESDA, JEDEC JS-001, and J-STD-020 standards for quality and reliability.
- Features low thermal resistance facilitating efficient heat dissipation during operation.
Product Description
Vishay VSMA1085600 is a high power infrared emitting diode designed for demanding industrial and electronic applications requiring 860 nm peak wavelength infrared output. This surface mount diode operates with a maximum supply voltage of 5V and delivers a radiant flux of 2100 mW and radiant intensity of 715 mW/sr, making it suitable for high power IR signaling and sensing tasks.
The device features a double stack emitter chip technology that enhances radiant power output while maintaining a compact 3.4 x 3.4 x 1.8 mm SMD lens package footprint. Its angle of half intensity is ±60°, which focuses emission effectively. Vishay’s diode also complies with important standards including ANSI, ESDA, JEDEC JS-001, and J-STD-020 to ensure robust quality and reliability.
With low thermal resistance between 6-9 K/W, the diode offers efficient thermal management critical for high current operations up to 1.5 A DC and pulses up to 5.0 A. The product is lead (Pb)-free and ESD rated up to 5 kV, enhancing its durability in automated production and demanding environments.
Packaged in tape and reel form, the diode is optimized for surface mount technology manufacturing lines. This makes it an ideal infrared light source for applications in industrial automation, telecommunications, remote sensing, and other electronic systems requiring stable and high power IR emission.
This surface mount infrared emitting diode delivers focused emission with 60° half intensity angle. Operates up to 5V max supply guaranteeing electrical reliability during use. Offers high radiant flux of 2100 mW enabling superior infrared power output.
Adopts double stack emitter chip for enhanced radiant power and performance. Compact 3.4 x 3.4 x 1.8 mm SMD lens package aids integration in tight spaces. Complies with ANSI, ESDA, JEDEC, and J-STD-020 industry standards.
Low thermal resistance improves power dissipation at high currents. Lead-free and ESD rated to 5 kV for environmental compliance and durability. Suitable for industrial, telecom, and sensor infrared applications. Packaged on tape and reel for automated surface mount assembly.
Explore Vishay and infrared diode product selections at EnvMart for reliable components serving diverse industrial and electronic engineering needs.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5V, ensuring reliable operation during use.
It offers a radiant flux of 2100 mW, making it suitable for high power applications.
The peak wavelength of this diode is 860 nm, which is ideal for infrared applications.
The angle of half intensity for this diode is ±60°, allowing for focused infrared emission.
The radiant intensity is 715 mW/sr, which contributes to its high power output capabilities.
The dimensions of this unit are 3.4 x 3.4 x 1.8 mm (L x W x H), making it compact for integration.
It is packaged in tape and reel form, which supports automated surface mount assembly.
It complies with ANSI, ESDA, JEDEC JS-001, and J-STD-020 standards for quality and reliability.
This model uses surface mount technology, suitable for various electronic applications.
The diode features a low thermal resistance between 6-9 K/W, facilitating efficient heat dissipation during operation.
It can handle high current operations up to 1.5 A DC and pulses up to 5.0 A.
This diode is suitable for industrial automation, telecommunications, remote sensing, and other electronic systems requiring high power IR emission.
