Taiwan Semiconductor Bridge Rectifier 800 V 300 A 4-Pin Single GBPC1508

Free Delivery in India | Lowest Global Shipping Charges

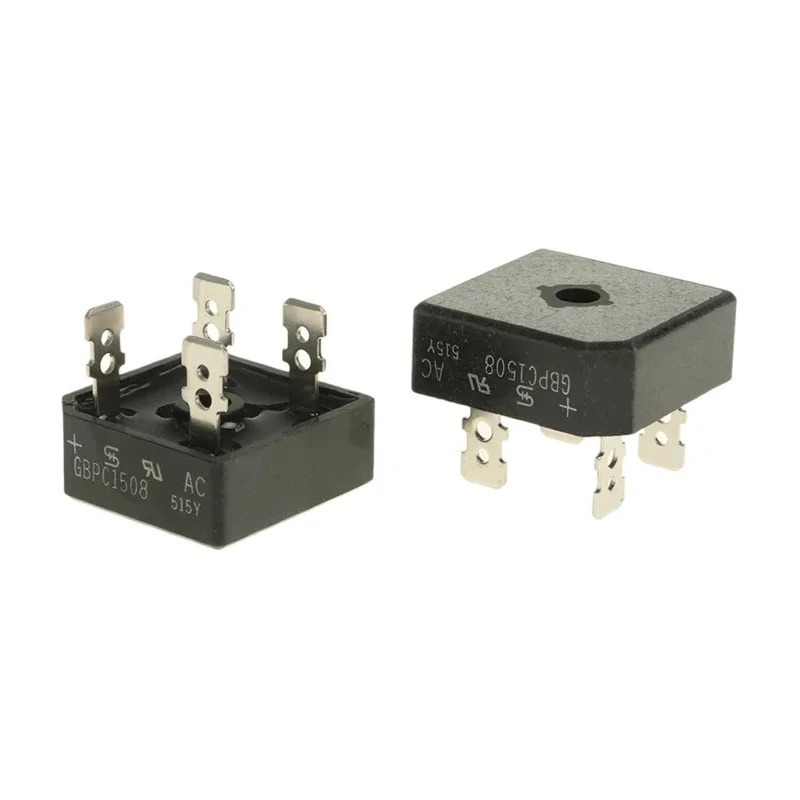

Taiwan Semiconductor Bridge Rectifier 800 V 300 A 4-Pin Single GBPC1508

Name: Taiwan Semiconductor Bridge Rectifier 800 V 300 A 4-Pin Single GBPC1508
Brand: Taiwan Semiconductor
SKU: 350412
Price: 3.77 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	11.23mm
Length	29mm
Model	GBPC1508
Width	29mm
Mount Type	Screw
Series	GBPC15
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-50°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	15A
Peak Forward Voltage Vf	1.1V
Vishay Bridge Rectifier, 800 V 300 A, 4-Pin SingleBrand	Vishay

Key Features

High peak reverse repetitive voltage of 800 V ensures robust performance under voltage stress.
Supports peak non-repetitive forward surge current of 300 A for transient conditions.
Compact GBPC package with screw mounting for secure installation.
Operates reliably between -50°C and 150°C for versatile applications.
Features low peak forward voltage drop of 1.1 V for energy efficiency.
Constructed with glass passivated chip junction for durability.
Isolated voltage from case to lead exceeds 2500 V enhancing safety.
Includes integrally molded heat sink for excellent thermal dissipation.

Product Description

Taiwan Semiconductor GBPC1508 Bridge Rectifier 800 V 300 A 4-Pin Single is a high performance semiconductor device designed to convert alternating current (AC) into direct current (DC) efficiently. With a peak reverse repetitive voltage of 800 V and forward current capability of 15 A, this bridge rectifier is ideal for various industrial and electronic applications requiring reliable and robust power rectification.

The device is housed in a durable GBPC package with screw mounting, ensuring secure electrical and mechanical attachment. It features a glass passivated chip junction to enhance longevity and performance stability. The bridge rectifier supports a peak non-repetitive forward surge current of 300 A, allowing it to handle transient current spikes effectively.

Designed to operate within a temperature range of -50°C to 150°C, the GBPC1508 offers flexibility for use in demanding environments. The low peak forward voltage drop of 1.1 V contributes to improved energy efficiency and reduced heat generation during operation.

An integrally molded heat sink facilitates excellent thermal management, ensuring the device remains within safe operating temperatures during extended use. Isolation voltage from case to lead exceeds 2500 V, enhancing electrical safety standards. Fast-on terminals provide quick and reliable electrical connections, simplifying installation and maintenance.

High peak reverse voltage for voltage stress tolerance. Transient current surge capability for reliability. Robust package with screw mounting for secure installation. Wide operating temperature range for diverse applications.

Low forward voltage drop for energy efficiency. Durable glass passivated chip junction. Excellent thermal dissipation with integrated heat sink. High isolation voltage for enhanced safety. Fast-on terminals for easy connectivity.

Suitable for industrial semiconductor and electronic power management uses.

This Taiwan Semiconductor Bridge Rectifier belongs to the GBPC15 series and is new, made in India by default unless otherwise specified. It supports single-phase operation with four pins and does not have automotive standards compliance. It is suitable for electronics, power & connectors, and semiconductor component categories.

Explore more Bridge Rectifiers and semiconductor devices in the EnvMart catalog to find components that fit your precise technical requirements for industrial, laboratory, and commercial electronics projects.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The peak reverse repetitive voltage of this bridge rectifier is 800 V, ensuring robust performance under voltage stress.

This model supports a peak non-repetitive forward surge current of 300 A, allowing it to effectively manage transient current spikes.

The GBPC1508 operates reliably within a temperature range of -50°C to 150°C, making it suitable for various applications in demanding environments.

The forward current rating of this bridge rectifier is 15 A, which indicates its capability to handle continuous current.

The peak forward voltage drop of this rectifier is 1.1 V, which contributes to improved energy efficiency and reduced heat generation during operation.

This model features a screw mounting type, ensuring secure electrical and mechanical attachment during installation.

The isolation voltage from case to lead exceeds 2500 V, enhancing electrical safety standards for this bridge rectifier.

The GBPC1508 is housed in a GBPC package, which is designed for efficient heat dissipation and secure mounting.

The dimensions of the GBPC1508 are 11.23 mm in height and 29 mm in width, making it compact for various applications.

It is suitable for various industrial and electronic applications requiring reliable and robust power rectification.

This bridge rectifier features a 4-pin configuration, which allows for easy integration into electronic circuits.

The GBPC1508 is constructed with a glass passivated chip junction, enhancing its longevity and performance stability.
