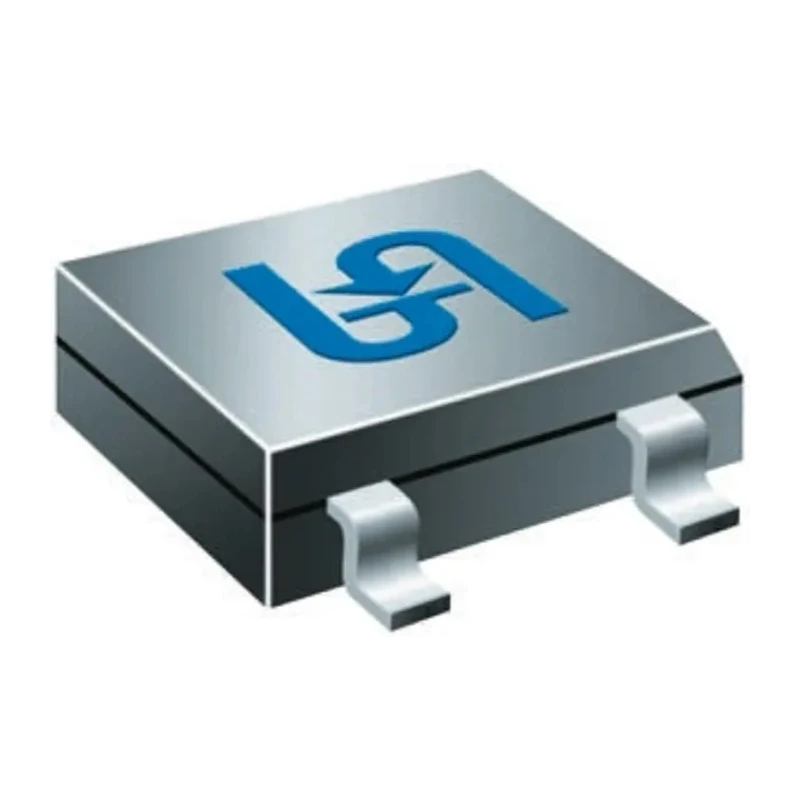

Taiwan Semiconductor Bridge Rectifier 1200 V 50 A 4-Pin Surface Mount DBLS208G

Taiwan Semiconductor DBLS208G Bridge Rectifier is a high-performance electronic component designed for converting alternating current (AC) input into direct current (DC) output with a peak reverse repetitive voltage of 1200 V and a forward current rating of 2 A. This 4-pin single phase surface mount device features a compact and robust DBLS package, allowing for efficient PCB surface mounting applications in electronics, power management, and industrial automation.

The rectifier is engineered for high surge current capability up to 50 A to withstand transient voltage spikes and ensure reliable continuous operation. It supports a wide operating temperature range from -55°C to 150°C, making it suitable for demanding automotive, industrial, and commercial electronics environments. The low peak forward voltage of 1.3 V contributes to energy efficiency by minimizing heat dissipation during conduction.

Constructed with a glass passivated junction and molded plastic technique, the DBLS208G device guarantees durability and cost-effectiveness. It is compliant with AEC-Q101 automotive standard, meeting the stringent quality requirements for automotive electronics. Additionally, the unit holds UL approval (E-326854), ensuring adherence to international safety standards.

The small footprint of 8.51 mm length, 6.5 mm width, and 2.6 mm height allows space-saving designs and automated placement using pick-and-place machinery for mass production. This makes it ideal for applications in power supplies, motor controls, and other electronic circuits requiring rectification of AC power sources.

Peak Reverse Repetitive Voltage of 1200 V ensures high voltage tolerance. Single phase 4-pin bridge rectifier configuration for efficient AC to DC conversion. Maximum forward current rating of 2 A with surge capacity of 50 A.

Wide operating temperature range from -55°C to 150°C for robust use. Compact surface mount DBLS package with dimensions 8.51 x 6.5 x 2.6 mm. Low forward voltage drop reduces power loss during operation. Meets automotive AEC-Q101 standard for quality and reliability.

Glass passivated junction and molded plastic construction for durability. UL E-326854 approval for safety compliance. Suitable for industrial, automotive, laboratory, and commercial electronics applications.

This Taiwan Semiconductor DBLS208G Bridge Rectifier is a reliable component choice for engineers designing power conversion circuits and PCB assembly lines. Explore EnvMart's Semiconductor and Bridge Rectifier category for more technical components and solutions.
