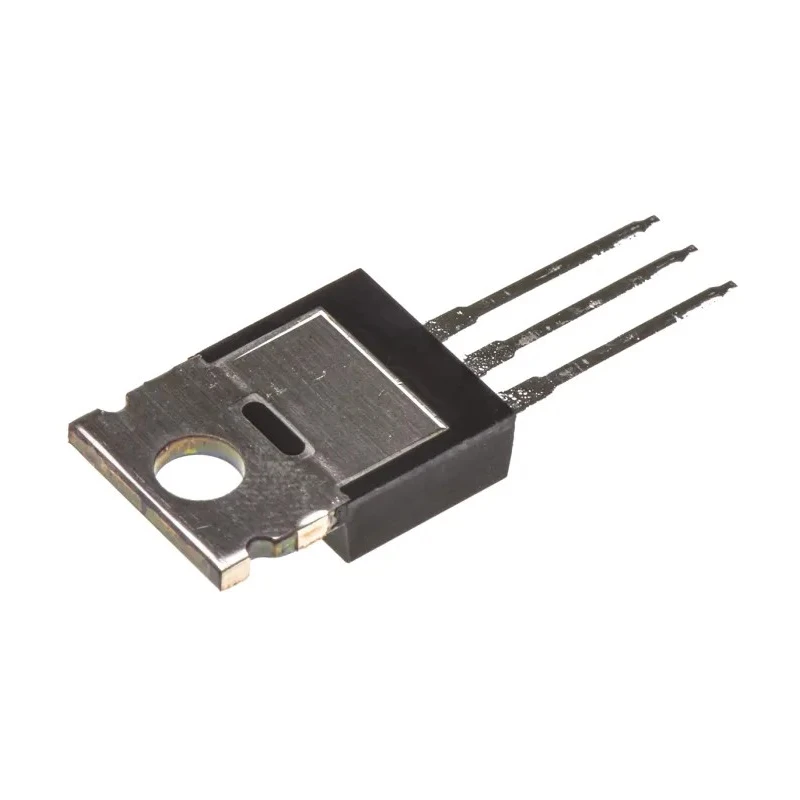

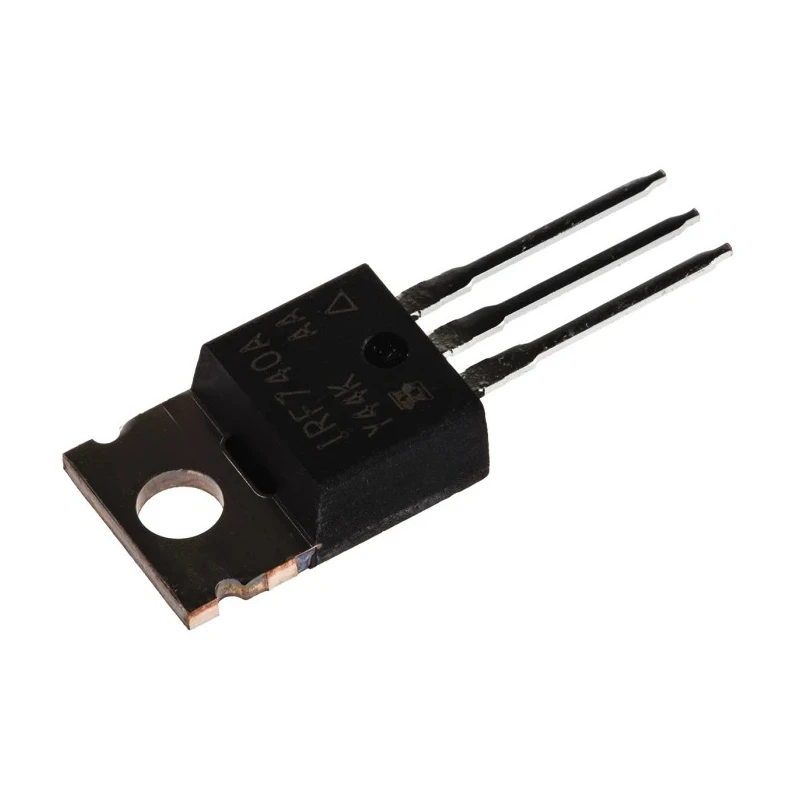

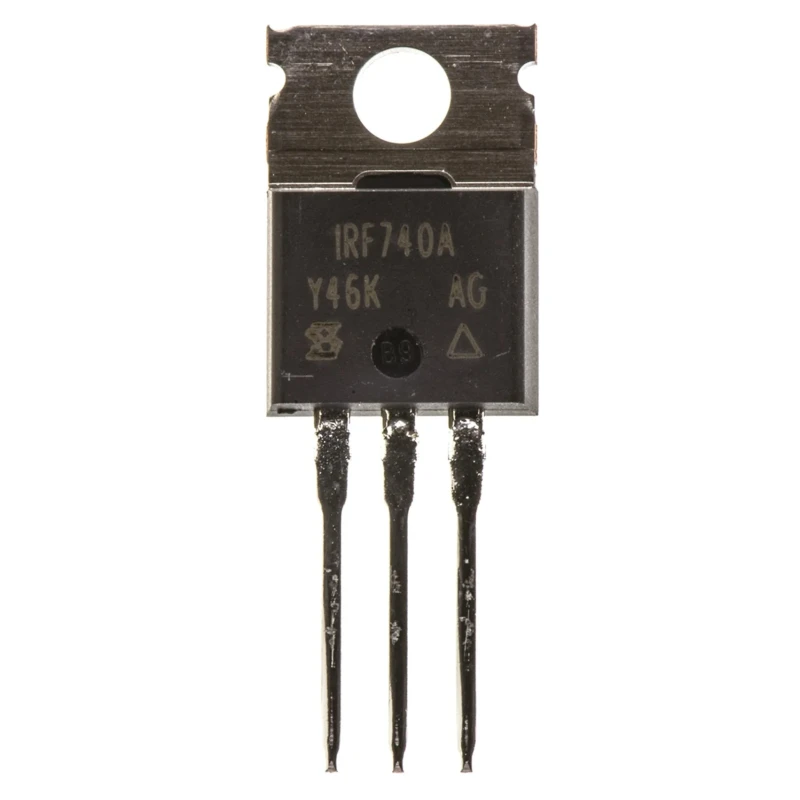

Vishay N-Channel Power MOSFET, 10 A, 400 V Enhancement, 3-Pin TO-220AB IRF740APBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.01mm |
| Length | 10.41mm |
| Model | IRF740APBF |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | IRF740A |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 10A |
| Maximum Drain Source Voltage Vds | 400V |
| Maximum Drain Source Resistance Rds | 550mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 125W |
| Typical Gate Charge Qg @ Vgs | 36nC |
| Maximum Gate Source Voltage Vgs | -30, +30V |
| Forward Voltage Vf | 2V |
| N-channel MOSFET,IRF740A 10A 400VBrand | Vishay |
Key Features
- This device supports enhancement mode switching for high voltage applications.
- Maximum power dissipation of 125 W enables reliable operation under high load.
- Low drain-source resistance of 550 mΩ provides efficient conduction.
- Typical gate charge of 36 nC allows manageable gate driving for fast switching.
- Designed to operate between -55°C and 150°C ambient temperature.
- The TO-220AB package allows easy attachment to heatsinks for thermal management.
- Maximum gate-source voltage rating of ±30 V protects against overdrive.
- Forward voltage of 2 V should be considered in conduction loss calculations.
Product Description
Vishay IRF740APBF is a high-voltage N-Channel Power MOSFET engineered for power electronic switching applications. It supports a maximum continuous drain current of 10 A and a maximum drain-source voltage of 400 V, packaged in a through-hole 3-pin TO-220AB format that facilitates reliable mounting and effective heat dissipation.
Built for enhancement mode operation, the device has a typical gate charge of 36 nC enabling efficient gate drive, and a maximum power dissipation capability of 125 W for high-load scenarios. The low drain-source resistance of 550 mΩ ensures minimized conduction losses, enhancing overall efficiency.
Thermal performance is rated from -55 °C to 150 °C, making it suitable for demanding environments with proper cooling solutions. The TO-220AB package allows attachment to heatsinks, contributing to thermal management by providing a low thermal-resistance path for dissipating generated heat.
Protective features include a gate-source voltage limit of ±30 V to prevent overdrive damage and a forward voltage of 2 V which should be accounted for in design calculations, especially in synchronous switching configurations.
Applications for this MOSFET include offline power supplies and converters, motor-drive switching stages, inverter circuits requiring high voltage handling, and industrial switching regulators. The through-hole mounting makes it ideal for prototyping and repair tasks.
This MOSFET excels in industrial, manufacturing, and HVAC systems requiring reliable high-voltage switching. It is compliant with RoHS standards ensuring environmentally responsible manufacturing. The product's robust design and thermal tolerance lend well to commercial and laboratory power electronics projects.
Choose Vishay IRF740APBF for efficient, high-performance Power MOSFET applications in diverse industrial and electrical domains. Explore more power semiconductors and MOSFETs in this category on EnvMart.
