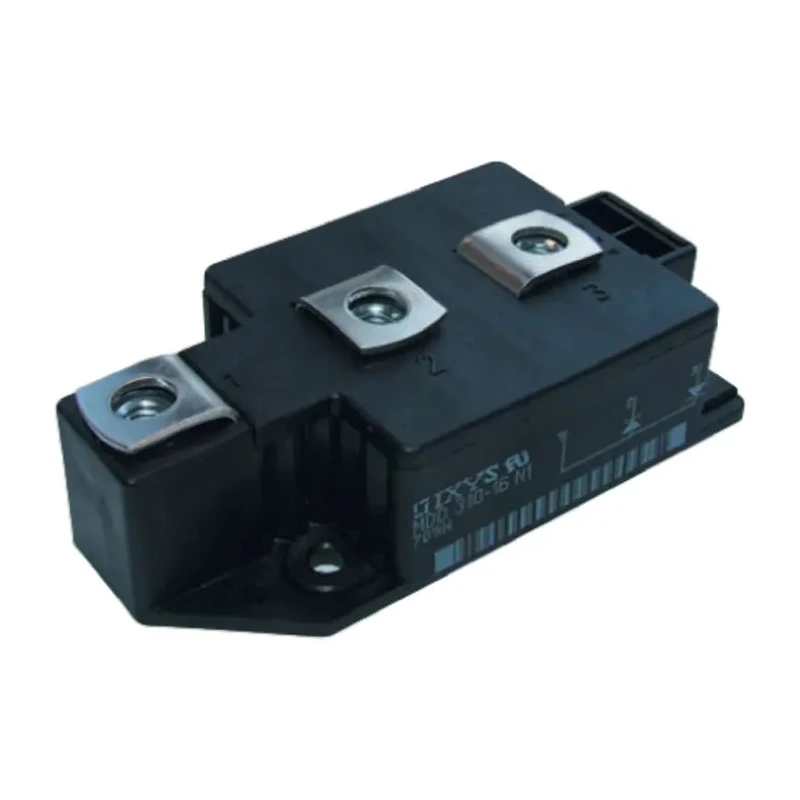

IXYS Dual Thyristor Module 1600 V, 320 A, 150 mA Gate Trigger Current, 9.8 kA Surge Current MCC310-16IO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Model | MCC310-16IO1 |
| Mount Type | Panel |
| Maximum Operating Temperature | 140°C |
| Package Type | Y2-DCB |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 320A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 9.8kA |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Holding Current Ih | 150mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.32V |
| Repetitive Peak Off-State Current | 40mA |
Key Features
- Solid-state semiconductor with four-layer alternating N and P-type material for bistable switching.
- Electrically isolated encapsulated module suitable for panel mounting.
- Maximum gate trigger current of 150 mA for reliable activation.
- Surge current rating of 9.8 kA to handle transient conditions.
- Operating temperature range from -40°C to 140°C for varied environments.
- Peak on-state voltage of 1.32 V ensuring efficient conduction.
- Pin count of 7 facilitating electrical connections.
- Repetitive peak reverse voltage and off-state currents suitable for power applications.
Product Description
IXYS MCC310-16IO1 is a dual Thyristor Module designed for robust industrial and electronic applications where power control and switching are essential. Featuring a repetitive peak reverse voltage of 1600 V and a rated average on-state current of 320 A, this module operates reliably within a temperature range from -40°C to 140°C.
This SCR-type thyristor is encapsulated in a Y2-DCB package with an electrically isolated base plate, enabling safe and easy panel mounting. The device's maximum gate trigger current of 150 mA and a gate trigger voltage of 2 V ensure fast and precise triggering performance, while the surge current rating of 9.8 kA provides tolerance against electrical surges and transient events.
The MCC310-16IO1 module is suitable for use in battery chargers, welders, plating equipment, regulated power supplies, and speed or temperature control circuits. It withstands repetitive peak off-state currents of 40 mA and features a peak on-state voltage of 1.32 V for efficient conduction during operation.
No specific automotive or other industry standards or approvals are associated with this product, which is intended for industrial, laboratory, and manufacturing applications requiring reliable power switching.
Solid-state semiconductor with SCR technology and four-layer PNPN structure. Encapsulated module with isolated base plate for secure panel mounting. High surge current rating of 9.8 kA for transient durability. Wide operating temperature range from -40°C to 140°C.
Reliable gate triggering with 150 mA current and 2 V voltage maximums. Compact 7-pin package design for ease of integration. Ideal for industrial power control including welding and battery charging. Designed to withstand repetitive peak reverse voltages up to 1600 V.
Explore the Electronics & Electricals category at EnvMart for a wide range of semiconductor modules including thyristors, power modules, and components designed to meet industrial and commercial power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the IXYS MCC310-16IO1 thyristor module is 140°C.
This model has a surge current rating of 9.8 kA, allowing it to handle transient conditions effectively.
The repetitive peak reverse voltage for this thyristor module is 1600 V, making it suitable for high-voltage applications.
The MCC310-16IO1 features a pin count of 7, facilitating electrical connections.
The rated average on-state current for this module is 320 A, which is essential for power control applications.
The maximum gate trigger current for this model is 150 mA, ensuring reliable activation.
This thyristor module is designed for panel mounting, providing ease of installation in various applications.
The peak on-state voltage of this model is 1.32 V, which aids in efficient conduction during operation.
The operating temperature range for the IXYS MCC310-16IO1 is from -40°C to 140°C, allowing for use in varied environments.
This model is suitable for applications such as battery chargers, welders, plating equipment, and regulated power supplies.
The maximum holding current for the IXYS MCC310-16IO1 is 150 mA, which is important for maintaining conduction after triggering.
The MCC310-16IO1 is an SCR-type thyristor, utilizing a four-layer PNPN structure for bistable switching.
