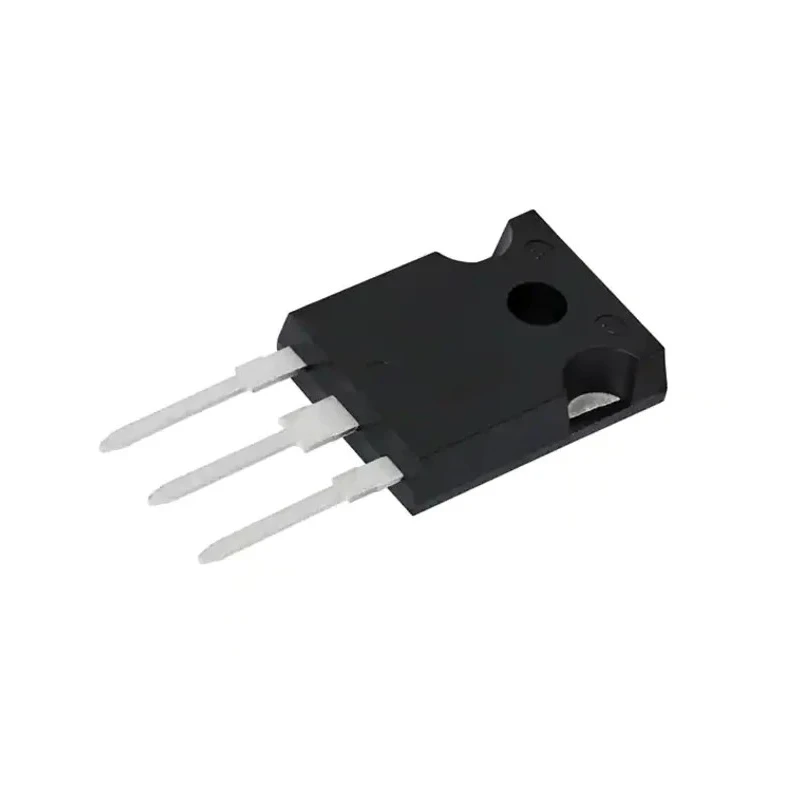

Vishay EF N-Channel Power MOSFET 6 A 850 V Depletion Mode 3-Pin TO-220 SIHA15N80AEF-GE3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SIHA15N80AEF-GE3 |
| Mount Type | Surface |
| Series | EF |
| Maximum Operating Temperature | +150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 6A |
| Maximum Drain Source Voltage Vds | 850V |
| Maximum Drain Source Resistance Rds | 0.35Ω |
| Channel Mode | Depletion |
| Maximum Power Dissipation Pd | 33W |
| Typical Gate Charge Qg @ Vgs | 54nC |
| Maximum Gate Source Voltage Vgs | 30V |
| Forward Voltage Vf | 1.2V |
Key Features
- Operates at maximum drain source voltage of 850 V with 6 A continuous drain current capacity.
- Low 0.35 Ω maximum drain source resistance reduces conduction losses efficiently.
- TO-220 package allows easy surface mounting and enhanced thermal dissipation.
- Wide operating temperature range from -55°C to +150°C ensures reliability in harsh environments.
- Typical gate charge of 54 nC facilitates predictable gate drive and switching performance.
- Maximum power dissipation up to 33 W supports sustained thermal management.
- Meets automotive standard AEC-Q101 specifying robustness for automotive electronics.
- Maximum gate to source voltage rating of ±30 V protects against gate overstress.
Product Description
Vishay SIHA15N80AEF-GE3 is a high-voltage N-channel Power MOSFET from the EF series, designed to handle switching and power management tasks in demanding industrial and automotive environments. Rated for 6 A continuous current and a maximum drain-source voltage of 850 V, it supports medium power applications with excellent efficiency.
Housed in a TO-220 surface mount package, the device enables easy heat sinking options for effective thermal management. Its low on-resistance of 0.35 Ω minimizes conduction losses, contributing to energy-efficient operation. The MOSFET operates reliably across a wide temperature range from -55°C to +150°C, making it suitable for harsh ambient conditions encountered in industrial power converters and automotive electronics systems that comply with the AEC-Q101 standard.
The typical gate charge of 54 nC informs gate driver design, allowing for predictable switching and gate control performance. With a maximum power dissipation of 33 W, the device can sustain continuous operation under rated loads. The ±30 V gate-to-source voltage rating protects the transistor from damage due to excessive gate voltage, ensuring device longevity.
Common applications include industrial high-voltage power converters, automotive electronic systems, switch-mode power supplies, inverters, motor drive front-end switching, and auxiliary power supply stages in harsh environments.
Offers 850 V drain-source voltage and 6 A continuous drain current ratings for medium-power switching. TO-220 package supports effective surface mounting and thermal dissipation. Low Rds(on) of 0.35 Ω reduces conduction power loss under load.
Suitable for automotive applications with AEC-Q101 qualification. Wide temperature tolerance from -55°C to +150°C ensures operational reliability. Typical gate charge of 54 nC aids in precise gate drive design. Maximum power dissipation capacity of 33 W for sustained thermal performance.
±30 V maximum gate-source voltage offers protection against overvoltage stress.
Explore the comprehensive range of Vishay power semiconductors at EnvMart for industrial, automotive, and commercial electronics designs requiring rugged and reliable performance components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum drain-source voltage for this model is 850 V.
It has a continuous drain current capacity of 6 A.
The maximum power dissipation is 33 W, supporting sustained thermal management.
This device is housed in a TO-220 package type, allowing for easy surface mounting.
The typical gate charge is 54 nC, which aids in gate driver design.
The maximum gate-source voltage rating is ±30 V, providing protection against gate overstress.
It operates within a temperature range of -55°C to +150°C, ensuring reliability in harsh environments.
The maximum drain-source resistance is 0.35 Ω, which reduces conduction losses efficiently.
It meets the automotive standard AEC-Q101, specifying robustness for automotive electronics.
This model features an N-channel type, suitable for various power management applications.
Common applications include industrial high-voltage power converters, automotive electronic systems, and switch-mode power supplies.
This MOSFET has a pin count of 3, which is typical for its package type.
