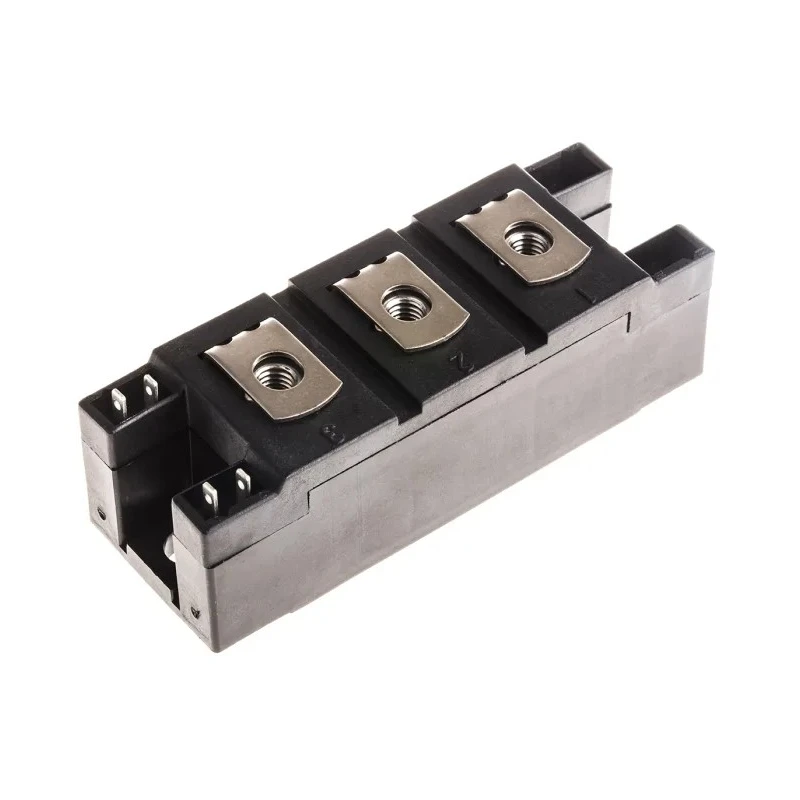

IXYS Dual Thyristor Module SCR 1600 V, 190 A, 150 mA, 6.4 kA, 1.25 V MCC162-16IO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Model | MCC162-16IO1 |
| Mount Type | Panel |
| Maximum Operating Temperature | 125°C |
| Package Type | Y4-M6 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 190A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 6.4kA |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Holding Current Ih | 200mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 1.25V |
| Repetitive Peak Off-State Current | 10mA |
Key Features
- Dual thyristors with SCR type suitable for high current applications.
- Repetitive peak reverse voltage rating of 1600 V for robust operation.
- Surge current rating up to 6.4 kA ensuring high transient handling.
- Maximum gate trigger current of 150 mA for reliable switching control.
- Encapsulated module with electrically isolated base plate for safe mounting.
- Operating temperature range from -40°C to 125°C for versatile environments.
- Panel mount type simplifies integration into electrical systems.
- Suitable for industrial use in battery chargers, welders, plating equipment, and power supplies.
Product Description
IXYS MCC162-16IO1 Dual Thyristor Module SCR offers a robust and reliable solution for semiconductor switching applications requiring high power and durability. Rated with a repetitive peak reverse voltage of 1600 V and a rated average on-state current of 190 A, this module ensures steady operation in demanding electrical environments.
The dual thyristor configuration allows bistable switching controlled via gate trigger currents up to 150 mA. Encapsulated with an electrically isolated base plate, it provides enhanced safety during panel mounting. With a high surge current rating of 6.4 kA, this module can withstand transient electrical spikes commonly found in industrial applications.
Operating temperature ranges from -40°C to 125°C make this device suitable for diverse conditions ensuring reliable performance. Its maximum gate trigger voltage of 2.5 V and holding current of 200 mA contribute to precise switching capabilities required in regulated power supplies, speed control circuitry, and battery charger designs.
This IXYS Thyristor Module is ideal for use in industrial, manufacturing, laboratory, HVAC, and commercial electrical equipment where controlled rectification and switching are critical. The SCR technology provides efficient energy control and protection in various electrical and electronic systems.
Dual thyristor SCR technology for efficient switching. High voltage and current ratings for industrial applications. Encapsulated design with isolated base plate for safety. Wide operating temperature range for versatile use.
Panel mountable module for easy integration. High surge current rating to withstand transients. Precise gate triggering for controlled conduction. Suitable for battery chargers, welders, and power supplies. Reliable operation in harsh electrical environments.
Explore the IXYS range of semiconductor devices and modules for your power electronics needs through EnvMart’s comprehensive catalog. Enhance your industrial and laboratory systems with proven reliable components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this module is 125°C.
This model has a surge current rating of 6.4 kA, allowing it to handle transient electrical spikes.
The repetitive peak reverse voltage rating for this thyristor module is 1600 V.
The rated average on-state current for this model is 190 A.
The maximum gate trigger current is 150 mA, facilitating reliable switching control.
This unit is designed for panel mounting, simplifying integration into electrical systems.
The minimum operating temperature for this thyristor module is -40°C.
The peak on-state voltage for this model is 1.25 V.
The package type for this thyristor module is Y4-M6.
The maximum holding current is 200 mA, which is essential for maintaining conduction.
This module is suitable for applications such as battery chargers, welders, plating equipment, and power supplies.
This thyristor module has a pin count of 7.
