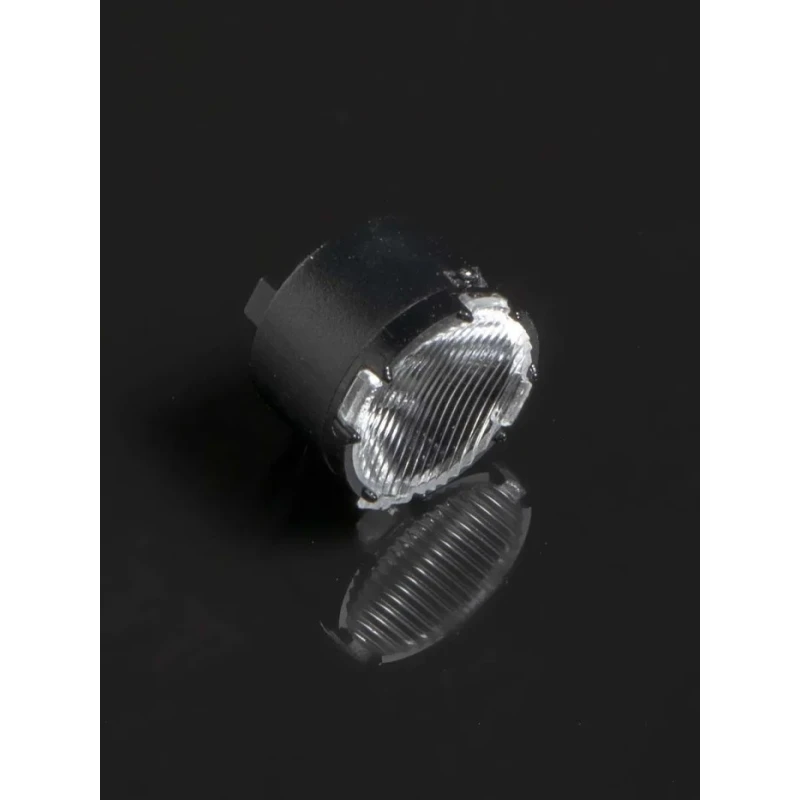

Ledil Lisa Series LED Optic & Holder Kit 18 x 50° Oval Beam FP16563_LISA3-O-PIN
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 10mm |
| Brand | Ledil |
| Height | 6.65mm |
| Model | FP16563_LISA3-O-PIN |
| Series | Lisa |
| Viewing angle | 18 x 50° |
| Number of Legs | 2 |
| Kit Contents | Lens, Holder |
| Standards/Approvals | RoHS Compliant |
| Emission Pattern | Oval |
| Lens Structure | Round |
Key Features
- The kit includes a round lens and a holder for secure installation.
- The optic measures 10 mm in diameter and 6.65 mm in height, suitable for compact designs.
- Designed with molded polycarbonate housing for durability and long life.
- Achieves up to 90% light transmission efficiency through superior lens design.
- Ideal for jewellery shops, reading lights, torches, and headlamps.
- Features 2 locating pins for stable PCB mounting and optional mounting clips.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Ledil FP16563_LISA3-O-PIN Lisa Series LED Optic & Holder Kit is engineered for precise LED light shaping with an oval 18 x 50° beam suitable for focused lighting needs in industrial and commercial environments. The miniature TIR-lens, less than 10 mm in diameter and 7 mm tall, is crafted for high transmission efficiency, achieving approximately 90% light output. The lens is combined with a molded polycarbonate holder which ensures mechanical protection and stable mounting via locating pins or optional clips for circuit boards.
Its compact size and efficient light shaping make this optic kit highly suitable for use in jewellery displays, reading lamps, flashlights, and headlamps where directional light control is essential. The robust polycarbonate housing maintains physical integrity over the lifetime of the luminaire while providing resistance to mechanical wear and environmental factors.
Installation is facilitated by two locating pins, which secure the optic to the printed circuit board, enhancing assembly precision and repeatability. The Lisa series is compliant with RoHS directives, reflecting commitment to environmental and safety standards.
The kit includes one round lens and one holder for easy assembly. Compact dimensions of 10 mm diameter and 6.65 mm height support miniaturized LED lighting solutions. Oval emission pattern with 18 x 50° viewing angle allows targeted light distribution.
Constructed with high-quality polycarbonate material for durability and longevity. Suitable for diverse industrial applications including jewellery shops, reading aids, torches, and headlamps. Molded housing protects the lens and maintains its positioning throughout product lifespan.
2-pin mounting system simplifies PCB attachment ensuring stability. RoHS compliant ensuring environmental responsibility. Explore the broad range of LED luminaires and optics at EnvMart for tailored lighting solutions.
Explore more products in our LED Lenses & Reflectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The viewing angle of this optic is 18 x 50°, allowing for targeted light distribution.
The optic measures 10 mm in diameter and 6.65 mm in height, making it suitable for compact designs.
The holder is made from molded polycarbonate, which provides mechanical protection and stability.
The optic features two locating pins that secure it to the printed circuit board, enhancing assembly precision and stability.
The kit includes one round lens and one holder for easy assembly and installation.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The emission pattern of this optic is oval, designed for focused lighting needs.
This optic is suitable for applications such as jewellery displays, reading lamps, flashlights, and headlamps.
The lens achieves up to 90% light transmission efficiency through its superior design.
The Ledil Lisa Series LED optic and holder kit is made in India.
The optional mounting clips provide additional stability for securing the optic to the circuit board.
This optic is part of the Lisa Series by Ledil, designed for precise LED light shaping.
