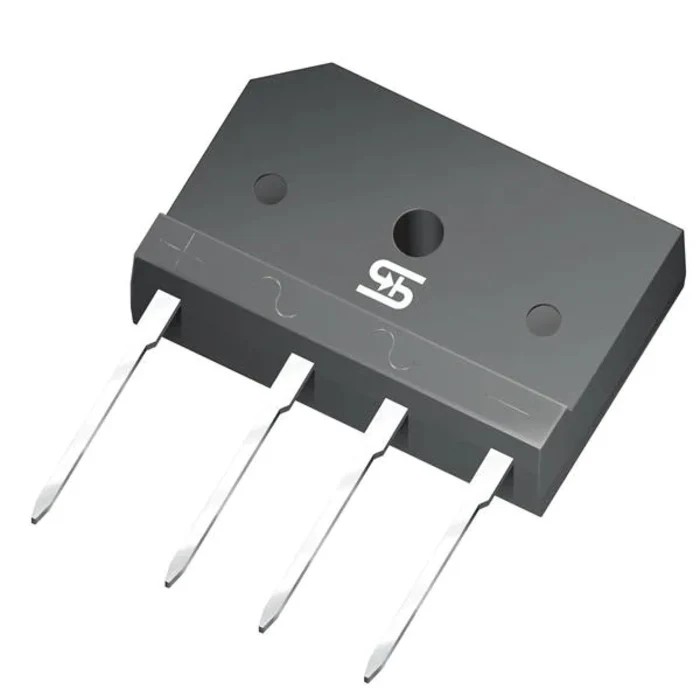

Taiwan Semiconductor Bridge Rectifier 800 V 312 A 4-Pin Quad TS-6PL T25JA06G-K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 30mm |
| Length | 29.3mm |
| Model | T25JA06G-K |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | TS-6PL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | IEC 61249-2-21, RoHS, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 0μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 312A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.15V |
Key Features
- Features a peak reverse repetitive voltage of 800 V.
- Supports forward current of 25 A for reliable operation.
- Maximum surge current rating of 312 A enables high transient tolerance.
- Operates in a temperature range from -55°C to 150°C.
- Designed with a TS-6PL package and through-hole mount type for easy PCB integration.
- Compliance with IEC 61249-2-21, RoHS, and UL standards ensures quality and safety.
- Glass passivated chip junction provides enhanced stability and longevity.
- Ideal for use in switching mode power supplies, adapters, and lighting applications.
Product Description
Taiwan Semiconductor T25JA06G-K Bridge Rectifier is a high-performance semiconductor device featuring an 800 V peak reverse repetitive voltage and a forward current capacity of 25 A. Designed as a 4-pin quad configuration in a TS-6PL through-hole package, it is engineered for robust applications such as switching mode power supplies (SMPS), adapters, and lighting systems.
The bridge rectifier operates efficiently across a wide temperature range from -55°C to a maximum of 150°C, ensuring reliable performance in industrial and commercial electronic circuits. The device's glass passivated chip junction enhances its stability and durability under various operating conditions.
It is compliant with recognized standards including IEC 61249-2-21, is RoHS compliant, and holds UL recognition (File # E-326243), making it suitable for environmentally conscious and safety-critical applications. The design is halogen-free as per IEC standards, aligning with modern environmental regulations.
Features a peak reverse repetitive voltage of 800 V. Supports continuous forward current of 25 A and high peak surge current capability of 312 A. Package type TS-6PL with through-hole mounting for reliable PCB assembly. Wide operating temperature range from -55°C to 150°C.
Glass passivated chip junction for improved device reliability. Complies with IEC standards, RoHS, and UL certifications. Halogen-free material composition for environmental compliance. Ideal for industrial, manufacturing, and electrical applications involving power rectification.
This bridge rectifier is an excellent choice for engineers and technicians seeking a reliable power conversion component for demanding electronic systems. Browse more Taiwan Semiconductor products or explore the full range of Bridge Rectifiers and semiconductors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bridge rectifier has a peak reverse repetitive voltage of 800 V.
It supports a continuous forward current of 25 A.
The maximum surge current rating is 312 A, allowing for high transient tolerance.
This model operates efficiently within a temperature range from -55°C to 150°C.
It is designed in a TS-6PL package type and features a through-hole mounting style for easy PCB integration.
It complies with IEC 61249-2-21, is RoHS compliant, and holds UL recognition.
The device is configured as a quad with a pin count of 4.
The height is 30 mm and the length is 29.3 mm.
It features a glass passivated chip junction for enhanced stability and longevity.
It is ideal for use in switching mode power supplies, adapters, and lighting applications.
The peak forward voltage is rated at 1.15 V.
The bridge rectifier is manufactured in India.
