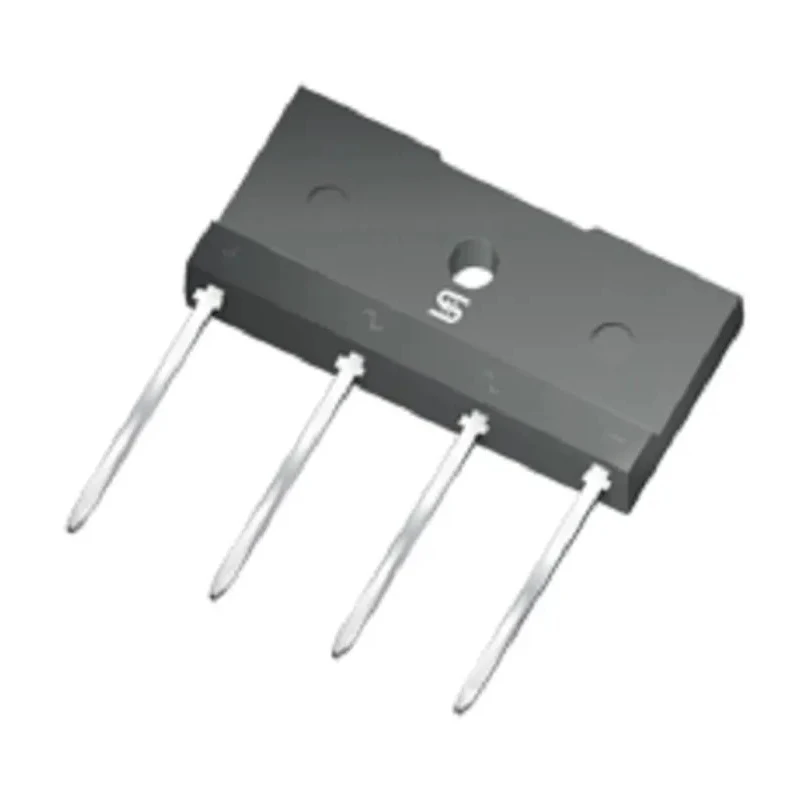

Taiwan Semiconductor TS-6PL Package Through Hole Bridge Rectifier, Quad Configuration, 1000 V Peak Reverse T10JA07G-K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 30mm |
| Length | 29.3mm |
| Model | T10JA07G-K |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | TS-6PL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | RoHS, IEC 61249-2-21, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 0μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 144A |
| Forward Current If | 10A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Through hole mount type for easy PCB integration.
- Operating temperature ranges from -55°C to 150°C.
- Glass passivated chip junction enhances reliability.
- Ideal for printed circuit board applications such as SMPS and lighting.
- High surge current capability supports demanding power requirements.
- RoHS compliant and halogen-free per IEC 61249-2-21 standards.
- UL recognized under File # E-326243 ensuring quality and safety.
- Quad configuration supporting single-phase operation.
Product Description
Taiwan Semiconductor T10JA07G-K Bridge Rectifier is a robust semiconductor component designed primarily for power and electronic applications requiring reliable rectification up to 1000 V peak reverse repetitive voltage. Its TS-6PL package facilitates through hole mounting, ensuring durability and straightforward installation on printed circuit boards.
It supports a forward current of 10 A and withstands peak non-repetitive forward surge currents up to 144 A, making it well-suited for high surge environments and power supply designs such as switching mode power supplies (SMPS), adapters, and lighting systems. The device operates reliably within a temperature range from -55°C to a maximum of 150°C, accommodating harsh industrial and commercial environments.
The bridge rectifier incorporates a glass passivated chip junction to enhance the semiconductor reliability and lifespan. Its quad pin configuration supports single-phase applications. Additionally, it meets important international standards including RoHS compliance, halogen-free material usage according to IEC 61249-2-21, and is UL recognized, ensuring safety and environmental responsibility.
Through hole mounting type for sturdy PCB integration. High operating temperature capability up to 150°C. Peak forward voltage of 1.1 V to optimize efficiency. Zero micro-ampere peak reverse current for low leakage. Package type TS-6PL with quad 4-pin configuration enhances circuit design flexibility.
Applications include SMPS, adapters, lighting, and industrial power supplies. RoHS, IEC 61249-2-21, and UL standards compliance ensures quality. Halogen-free construction protects environment and safety.
This product is ideal for industrial, manufacturing, electrical, and electronic engineering projects requiring steady rectification and high surge current tolerance. It is suited for engineers and designers seeking dependable semiconductor Bridge Rectifier modules for commercial and industrial applications.
Explore the extensive range of semiconductor and discrete electronic components in the EnvMart collection for precise and quality-assured industrial-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating of this bridge rectifier is 1000 V.
This model can operate at a maximum temperature of 150°C.
It utilizes a through hole mounting type, which facilitates easy integration onto printed circuit boards.
The forward current rating is 10 A, suitable for various power applications.
It can withstand peak non-repetitive forward surge currents up to 144 A.
This bridge rectifier features a quad configuration supporting single-phase operation.
The height is 30 mm and the length is 29.3 mm.
It complies with RoHS, IEC 61249-2-21 standards, and is UL recognized.
The peak forward voltage is 1.1 V, optimizing efficiency in applications.
The minimum operating temperature is -55°C, allowing it to function in extreme conditions.
The peak reverse current is 0 μA, indicating low leakage.
It is suitable for applications such as switching mode power supplies (SMPS), adapters, and lighting systems.
