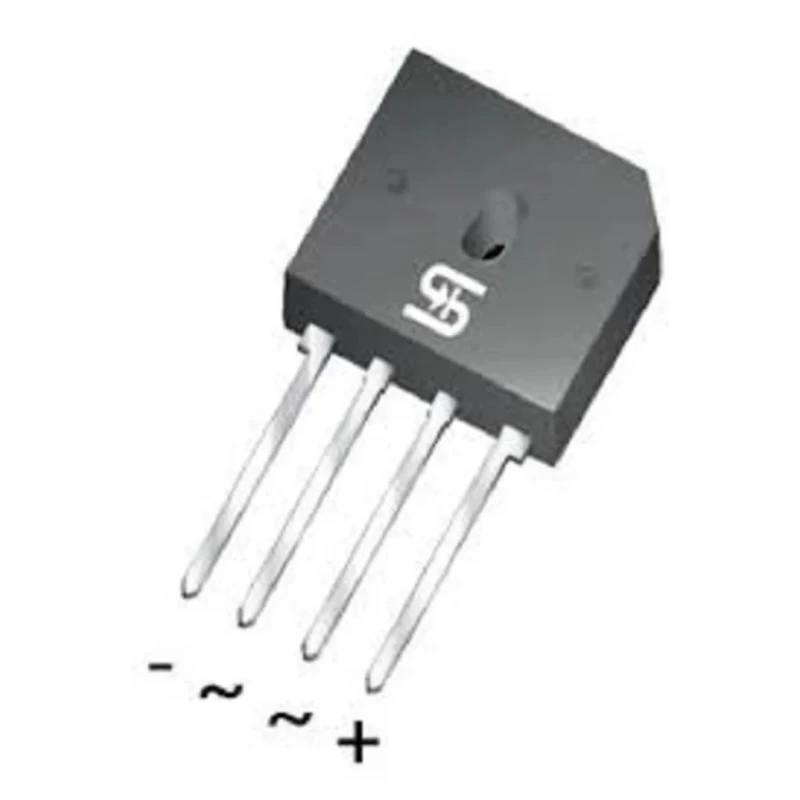

Taiwan Semiconductor Bridge Rectifier 600 V 220 A Through Hole GBU Quad 4-Pin GBU1505

Taiwan Semiconductor GBU1505 Bridge Rectifier is a high-performance quadruple (quad) semiconductor device designed for rectification in electronic circuits. It features a 4-pin GBU package suitable for through-hole mounting, providing a convenient solution for power conversion in a variety of industrial and commercial electronic applications.

With a peak reverse repetitive voltage of 600 V, this rectifier is robust against voltage spikes and electrical stress. The forward current rating of 15 A supports steady current flow, allowing efficient power delivery. The device is built to handle peak non-repetitive forward surge currents up to 220 A, making it suitable for transient load conditions encountered in power supply circuits.

The device operates reliably over a wide temperature range from -55°C to 150°C, catering to demanding environmental conditions in industrial, manufacturing, and electronics testing scenarios. Its low peak forward voltage of 1.1 V helps reduce power loss and enhance overall circuit efficiency.

Compliant with RoHS directives and recognized under UL safety standards, the GBU1505 ensures adherence to environmental and quality regulations. It finds applications in switching mode power supplies (SMPS), AC adapters, televisions, monitors, and various other power management devices.

Its GBU package and quad pin configuration enable easy PCB installation, making it ideal for printed circuit board assemblies requiring reliable bridge rectification. Offers high peak reverse repetitive voltage of 600 V to withstand electrical stress.

Capable of handling forward current up to 15 A for robust performance. Configured as a quad device with 4 pins, ideal for bridge rectification. Operates effectively within temperature range of -55°C to 150°C. Supports peak non-repetitive forward surge current up to 220 A for transient conditions.

Features a low peak forward voltage of 1.1 V for energy efficiency. RoHS compliant and UL recognized for safety and environmental standards. Designed with GBU package for standard integration on printed circuit boards.

This bridge rectifier is essential in industrial electronics, HVAC systems, manufacturing equipment, laboratory power supplies, and other commercial electronic assemblies that require efficient AC to DC conversion with high reliability.
