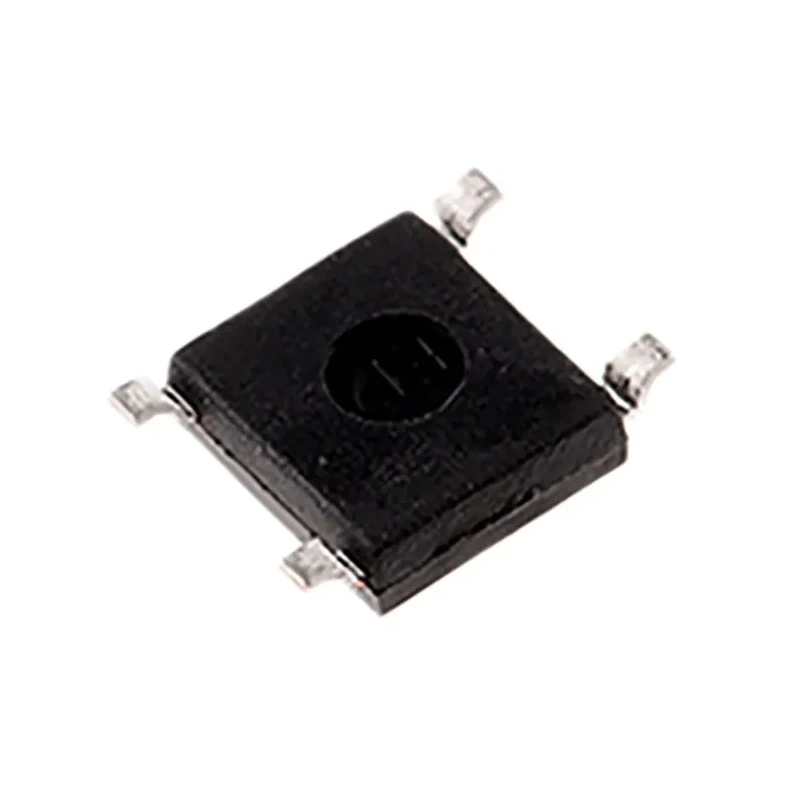

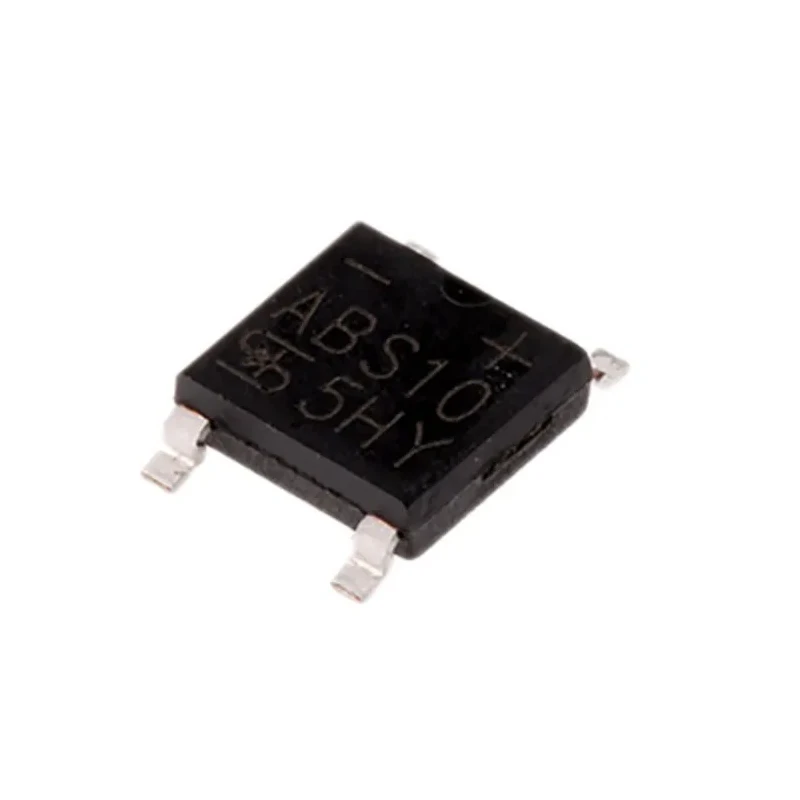

Taiwan Semiconductor Bridge Rectifier, 1000 V 30 A, 4-Pin Single ABS10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 1.6mm |
| Length | 5.1mm |
| Model | ABS10 |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | ABS10 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | ABS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Forward Current If | 1A |
| Peak Forward Voltage Vf | 950mV |
Key Features
- Converts AC input to DC output efficiently.
- Glass passivated junction for enhanced reliability.
- Ideal for PCB reflow soldering with molded plastic body case.
- Capable of high surge current with 30A peak forward surge current.
- Operates reliably between -55°C to 150°C temperature range.
- Automotive standard compliant with AEC-Q101 certification.
- Surface mount type with ABS package ensures easy PCB integration.
- Low forward voltage drop of 950mV reduces power losses.
Product Description
Taiwan Semiconductor ABS10 Bridge Rectifier is a high-quality 4-pin single-phase rectifier designed for surface mounting on printed circuit boards. Rated at 1000 V peak reverse repetitive voltage and 30 A peak forward surge current, this device offers reliable AC to DC conversion for various electronic applications.
The bridge rectifier features a glass passivated junction and molded plastic body, making it ideal for PCB reflow soldering. Its compact size with a length of 5.1 mm, width of 4.5 mm, and height of 1.6 mm facilitates easy integration in dense circuits. Operational temperature range from -55°C to 150°C enables use in harsh environments, while the low forward voltage drop of 950 mV ensures efficient power management.
Equipped with automotive standard AEC-Q101 certification, the ABS10 is suitable for automotive electronics, industrial machines, consumer electronics, and power supply units. The device’s robust construction supports high surge current demands, making it reliable for transient power scenarios.
Converts alternating current (AC) input into direct current (DC) output with stable polarity. Glass passivated junction provides enhanced durability and longevity. ABS package supports standard surface mount technology (SMT) assembly.
Wide operating temperature range ensures performance in diverse environmental conditions. Meets automotive grade reliability standards. Compact form factor supports high-density PCB layouts. Efficient with low forward voltage drop to reduce heat dissipation.
Suitable for industrial, automotive, manufacturing, and power management applications. Ideal for PCB reflow soldering and automated production processes.
For professional electronic component applications requiring reliable rectification with compact design and automotive standards, the Taiwan Semiconductor ABS10 Bridge Rectifier is an excellent choice. Explore further electronic and semiconductor components in EnvMart’s extensive catalog.
Explore more products in our Bridge Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the ABS10 Bridge Rectifier is 1000 V.
This model can operate at a maximum temperature of 150°C.
The forward current rating for the ABS10 is 1 A.
The forward voltage drop of 950 mV helps reduce power losses, enhancing overall efficiency during operation.
The dimensions of this model are 5.1 mm in length, 4.5 mm in width, and 1.6 mm in height.
This rectifier complies with the AEC-Q101 automotive standard.
The ABS10 has a peak forward surge current rating of 30 A.
Yes, the ABS10 is designed for surface mounting, making it suitable for PCB reflow soldering.
The minimum operating temperature for the ABS10 is -55°C.
The ABS10 features a single-phase configuration.
The peak reverse current for the ABS10 is 150 μA.
This rectifier is suitable for automotive electronics, industrial machines, consumer electronics, and power supply units.
