Nexperia Schottky Barrier Diode 70 V 70 mA Surface Mount DFN1006BD-2 BAS70LS-QYL

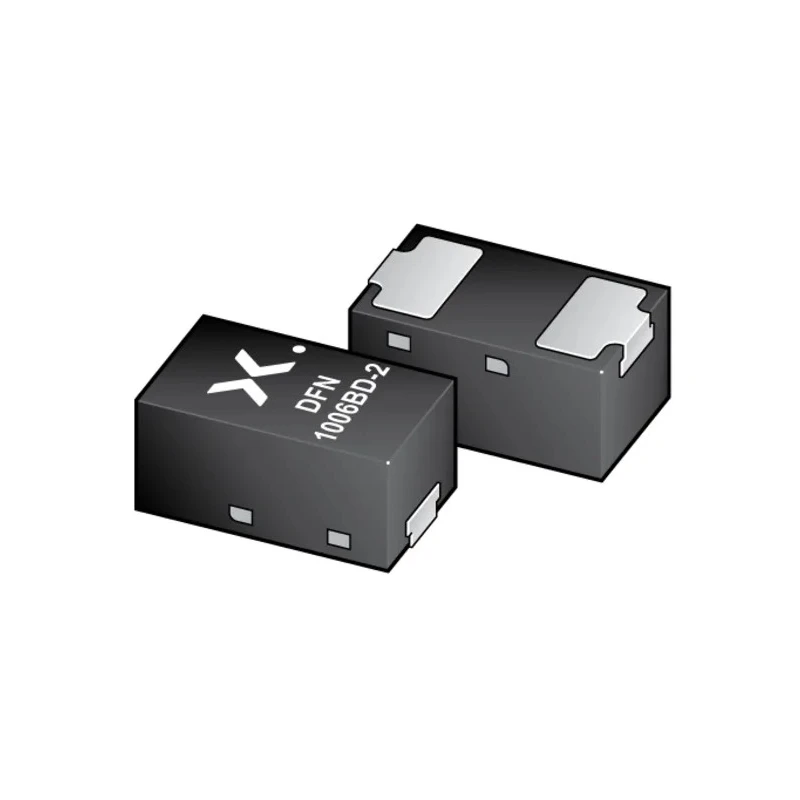

Nexperia BAS70LS-QYL Schottky Barrier Diode is a high-performance discrete semiconductor device designed for compact, high-speed electronic circuits. Packaged in an ultra-small leadless DFN1006BD-2 (SOD882BD) surface mount package with side-wettable flanks, this diode offers exceptional integration into automated PCB assembly processes including Automatic Optical Inspection (AOI).

With a maximum continuous forward current of 70 mA and peak reverse repetitive voltage of 70 V, the BAS70LS-QYL is ideal for low-current rectification and switching applications. Featuring a maximum forward voltage of 380 mV, it provides minimal conduction loss to improve circuit efficiency. The device exhibits low leakage current and low capacitance, enhancing performance in high-frequency switching power supplies and RF applications.

Designed with robust temperature capabilities, the diode operates reliably from -55°C to 150°C, supporting industrial and automotive environments. It is qualified under the automotive grade AEC-Q101 standard and complies with RoHS environmental regulations, ensuring quality and sustainability for automotive and industrial electronic designs.

This diode is well-suited for electronics manufacturing, automotive electronics, power converters, portable devices, and telecommunications equipment requiring efficient, reliable Schottky diode performance in a compact surface mount form factor.

Ultra small leadless DFN1006BD-2 package with side-wettable flanks enables compact PCB layouts and high manufacturing quality. High switching speeds support high frequency and switching power applications. 70 V maximum voltage rating provides robust operation margin in low-voltage circuits.

Low leakage and capacitance optimize power efficiency and signal integrity. Qualification to automotive AEC-Q101 standard supports reliable use in automotive electronics. Wide operating temperature from -55°C to 150°C ensures durability in harsh environments.

Low forward voltage of 380 mV minimizes power dissipation and heat generation. Peak surge current of 200 mA allows for transient current handling capability.

Package contains a single Schottky Barrier Diode optimized for surface mounting in demanding industrial, automotive, communications, and consumer electronic applications. Available from leading distributors with technical documentation and compliance certifications.
