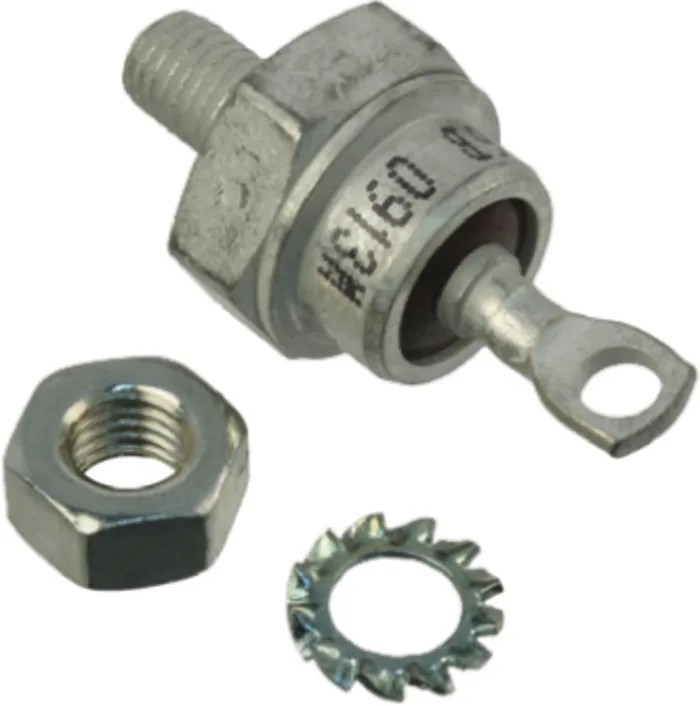

Vishay Standard Recovery Switching Diode 400 V 70 A 2-Pin DO-203AB VS-70HFR40
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.08mm |
| Model | VS-70HFR40 |
| Width | 17.4mm |
| Mount Type | Screw |
| Series | 70HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
| Vishay 600 V 70 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
| Vishay 400V 70A, Silicon Junction Diode, 2-Pin DO-5 VS-71HFR40Brand | Vishay |
Key Features
- Standard recovery switching diode optimized for industry applications.
- Supports a maximum continuous forward current of 70 A.
- Peak reverse repetitive voltage of 400 V ensures robust reverse voltage tolerance.
- Compact 2-pin DO-203AB package for easy mounting and integration.
- Wide operating temperature from -65°C to 180°C suitable for harsh environments.
- Low maximum forward voltage drop of 1.35 V for efficient conduction.
- High peak non-repetitive forward surge current of 1.3 kA for transient handling.
- Stud anode diode configuration for reliable electrical connections.
Product Description
Vishay VS-70HFR40 is a high-efficiency standard recovery switching diode designed for power electronics requiring reliable rectification and switching performance. It comes in a compact 2-pin DO-203AB package that offers easy mounting with screw type mount. The diode supports a maximum continuous forward current of 70 A and a peak reverse repetitive voltage of 400 V, making it well-suited for demanding power management applications in industrial electronics.
Operating temperature spans from -65°C to 180°C, enabling performance in both cold and high temperature conditions, while maintaining electrical stability and reliability. The device features a low maximum forward voltage drop of 1.35 V which reduces conduction losses and improves system efficiency.
It has a stud anode configuration and offers a peak non-repetitive forward surge current of 1.3 kA, allowing it to handle transient surge currents typically found in switching power supplies, motor drives, and industrial rectifiers.
This switching diode is used extensively in power management, industrial machinery, motor control, and other commercial applications requiring fast and dependable diode switching characteristics.
Standard recovery switching diode optimized for industry applications. Supports a maximum continuous forward current of 70 A. Peak reverse repetitive voltage of 400 V ensures robust reverse voltage tolerance. Compact 2-pin DO-203AB package for easy mounting and integration.
Wide operating temperature from -65°C to 180°C suitable for harsh environments. Low maximum forward voltage drop of 1.35 V for efficient conduction. High peak non-repetitive forward surge current of 1.3 kA for transient handling.
Stud anode diode configuration for reliable electrical connections.
This Vishay switching diode model VS-70HFR40 is ideal for industrial, electronics manufacturing, power supplies, and laboratory applications. For more power and semiconductor components, explore the full Vishay range on EnvMart.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-70HFR40 diode is 70 A.
This model has a peak reverse repetitive voltage rating of 400 V.
The dimensions of the Vishay VS-70HFR40 are 22.9 mm in height, 20.08 mm in length, and 17.4 mm in width.
The operating temperature range for this diode spans from -65°C to 180°C.
The maximum forward voltage drop for the VS-70HFR40 is 1.35 V.
This diode uses a screw mount type for installation.
The peak non-repetitive forward surge current for this model is 1.3 kA.
The diode configuration of the Vishay VS-70HFR40 is a stud anode.
This diode is classified as a standard recovery switching rectifier.
The peak reverse current for this diode is rated at 15 mA.
This diode is suitable for power management, industrial machinery, motor control, and other commercial applications requiring dependable switching characteristics.
The Vishay VS-70HFR40 is manufactured in India.
