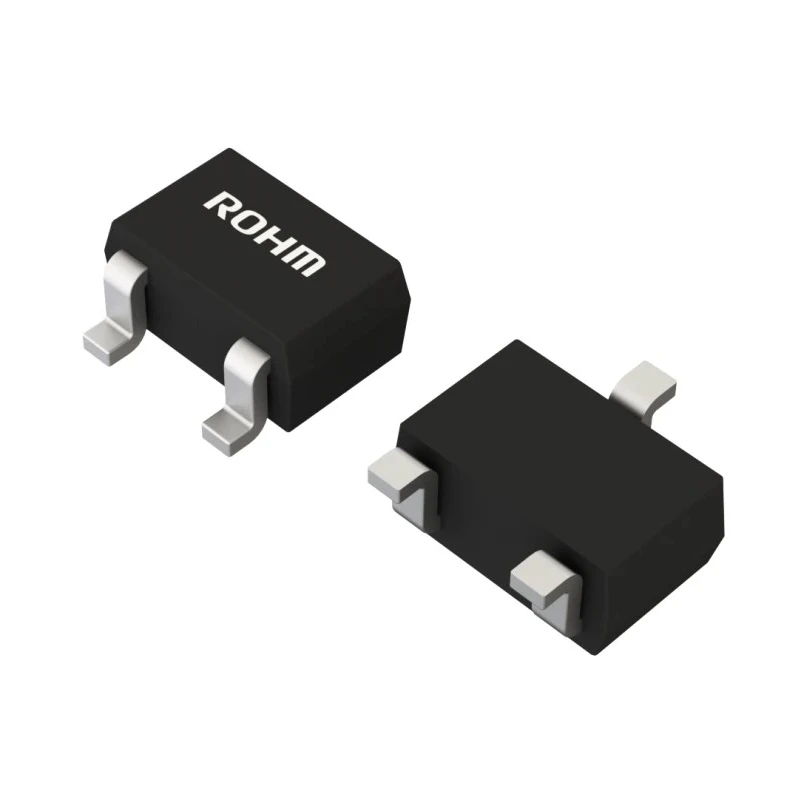

ROHM 40 V 0.08 A Schottky Diode 3-Pin SOT-323 Surface Mount RB508FM-40SFHT106
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RB508FM-40SFHT106 |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 0.08A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Series |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 340μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 0.66V |
Key Features
- Designed for surface mounting in SOT-323 package format.
- Maximum continuous forward current rated at 0.08 A.
- Peak reverse repetitive voltage of 40 V ensures reliable operation.
- Low forward voltage drop of 0.66 V for efficient performance.
- Temperature operating range from -55°C to 150°C supports diverse environments.
- Peak non-repetitive forward surge current capacity of 1 A.
- High reliability with small mold type packaging.
- Reverse current limited to 340 μA to reduce leakage.
Product Description
ROHM RB508FM-40SFHT106 is a 40 V 0.08 A Schottky diode in a 3-pin SOT-323 surface mount package designed for general rectification purposes. Its series diode configuration and low forward voltage make it ideal for efficient and reliable rectifying applications in electronics, power supplies, and industrial equipment.
The diode provides a maximum continuous forward current of 0.08 A and a peak reverse repetitive voltage of 40 V, with a low forward voltage drop of 0.66 V, enhancing energy efficiency and reducing heat dissipation. Its peak non-repetitive forward surge current is rated at 1 A, ensuring robustness against transient surges.
This device features an operating temperature range from -55°C to 150°C, making it suitable for use in a wide range of environments including industrial and commercial electronic systems. The reverse current is limited to 340 μA, supporting minimal leakage and high reliability.
The diode complies with RoHS standards, ensuring it meets environmental safety requirements. Its compact small mold type packaging enables space-saving on PCBs for modern electronics design.
Applications include power rectification, signal demodulation, voltage clamping, and reverse polarity protection in various electronic, laboratory, HVAC, and manufacturing systems. This diode suits designers requiring high efficiency with compact form factors.
Designed for surface mounting in SOT-323 package format. Maximum continuous forward current rated at 0.08 A. Peak reverse repetitive voltage of 40 V ensures reliable operation. Low forward voltage drop of 0.66 V for efficient performance.
Temperature operating range from -55°C to 150°C supports diverse environments. Peak non-repetitive forward surge current capacity of 1 A. High reliability with small mold type packaging. Reverse current limited to 340 μA to reduce leakage.
Compliant with RoHS environmental standards. Suitable for general rectification in electronic and industrial devices. Explore more semiconductor solutions and Schottky Diodes on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is rated at 0.08 A.
The peak reverse repetitive voltage of this model is 40 V, ensuring reliable operation in various applications.
It has a low forward voltage drop of 0.66 V, which enhances energy efficiency and reduces heat dissipation.
The operating temperature range for this diode is from -55°C to 150°C, making it suitable for diverse environments.
The peak non-repetitive forward surge current capacity is rated at 1 A, providing robustness against transient surges.
The reverse current is limited to 340 μA, which helps reduce leakage and enhance reliability.
It is designed for surface mounting in a SOT-323 package format, allowing for compact PCB designs.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
This diode is suitable for applications such as power rectification, signal demodulation, voltage clamping, and reverse polarity protection.
This model has a pin count of 3, which is typical for its SOT-323 package type.
It uses a series diode configuration, making it suitable for general rectification purposes.
The country of origin for this diode is India.
