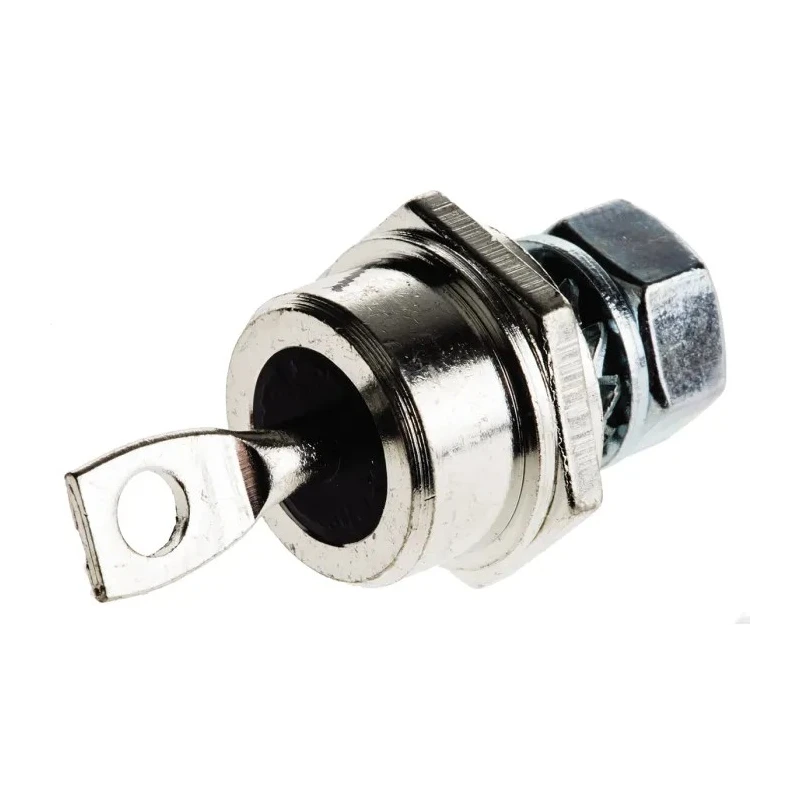

Vishay Standard Recovery Power Diode 800 V 70 A Switching 2-Pin DO-203AB VS-70HF80
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-70HF80 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | VS-70HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
| Vishay 1 kV 70 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
| Vishay 400V 70A, Silicon Junction Diode, 2-Pin DO-5 VS-71HF40Brand | Vishay |
Key Features
- This diode supports a maximum continuous forward current of 70 A.
- It features a peak reverse repetitive voltage of 800 V for robust voltage handling.
- The device has a low maximum forward voltage drop of 1.35 V to ensure efficiency.
- It operates reliably at temperatures from -65°C to a maximum of 180°C.
- Peak non-repetitive forward surge current rating is 1.3 kA for transient robustness.
- The diode configuration is Stud Cathode with a screw mount type.
- Physical dimensions include a height of 22.9 mm, length of 20.02 mm, width of 17.35 mm, and a diameter of 17.4 mm.
- RoHS compliant ensuring environmental safety and reliability.
Product Description
Vishay VS-70HF80 is a Standard Recovery Power Diode rated for 800 V peak reverse voltage and 70 A maximum continuous forward current, housed in a 2-Pin DO-203AB package. This versatile and high-efficiency switching diode is suited for various industrial and electronic applications including power rectification and switching circuits.
Designed with a Stud Cathode configuration and screw mount type, this diode ensures easy installation and reliable electrical connection. Its maximum forward voltage of 1.35 V contributes to minimizing power losses, enhancing overall system efficiency.
The device operates safely across a wide temperature range, from -65°C up to 180°C maximum, making it suitable for demanding environments. It also supports a peak non-repetitive forward surge current of 1.3 kA, allowing it to handle transient current spikes effectively.
Dimensionally, the diode is compact with a height of 22.9 mm, length of 20.02 mm, width of 17.35 mm, and diameter of 17.4 mm, making it compatible with industry-standard mounting footprints.
Compliant with RoHS standards, the VS-70HF80 promotes environmentally responsible usage without hazardous substances. This switching diode supports a continuous current of 70 A for robust power handling. It withstands an 800 V peak reverse voltage enhancing circuit protection.
The 1.35 V forward voltage drop aids in energy efficient switching applications. Designed for wide temperature ranges and high surge current endurance. Compact DO-203AB package with 2-pin configuration for standard mounting.
RoHS compliance guarantees ecological safety in industrial use.
Vishay Diodes such as the VS-70HF80 are preferred in electronics manufacturing, power supplies, rectifier assemblies, and other applications requiring reliable high current and voltage switching components. Browse the Electronics & Electricals section on EnvMart for full range and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 70 A.
It has a peak reverse repetitive voltage rating of 800 V.
The physical dimensions are height 22.9 mm, length 20.02 mm, width 17.35 mm, and diameter 17.4 mm.
The maximum forward voltage drop is 1.35 V.
The peak non-repetitive forward surge current rating is 1.3 kA.
This diode operates reliably at temperatures from -65°C to a maximum of 180°C.
It uses a screw mount type configuration.
The diode configuration is Stud Cathode.
Yes, the VS-70HF80 is RoHS compliant, ensuring environmental safety and reliability.
The package type is DO-203AB.
The peak reverse current is rated at 9 mA.
This diode belongs to the VS-70HF series.
