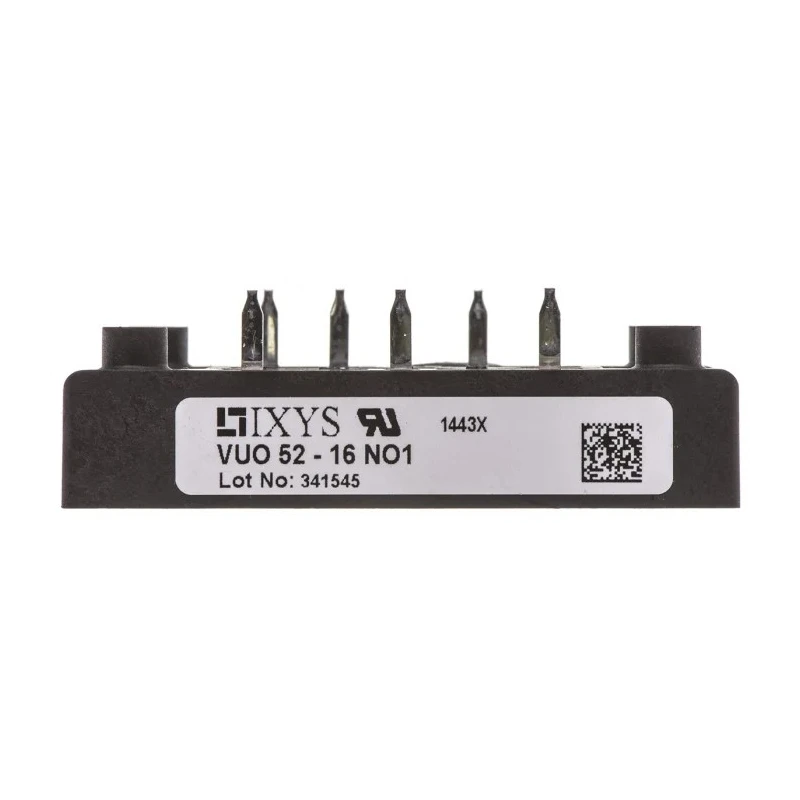

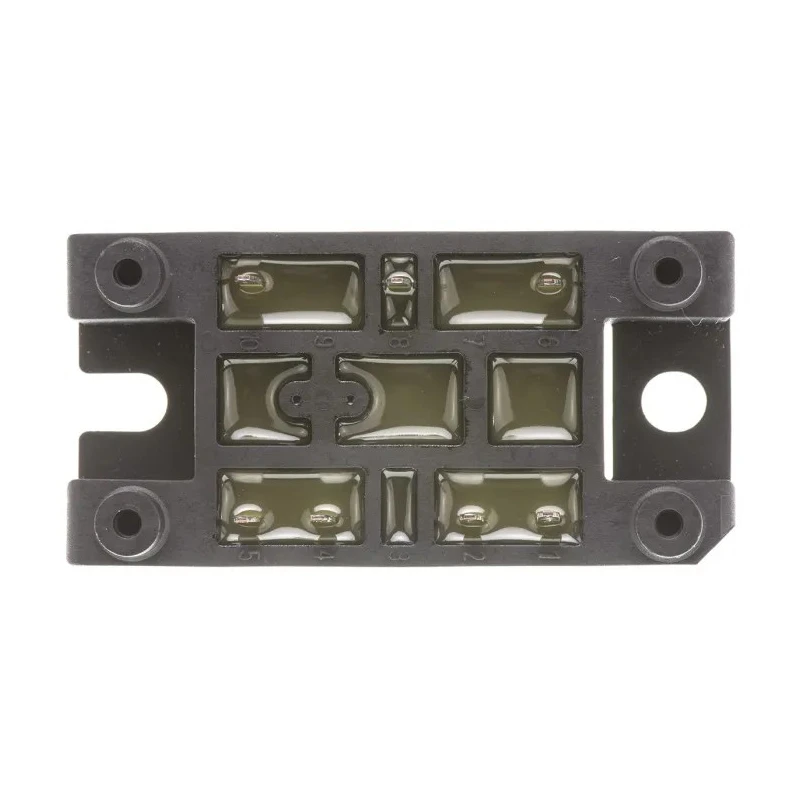

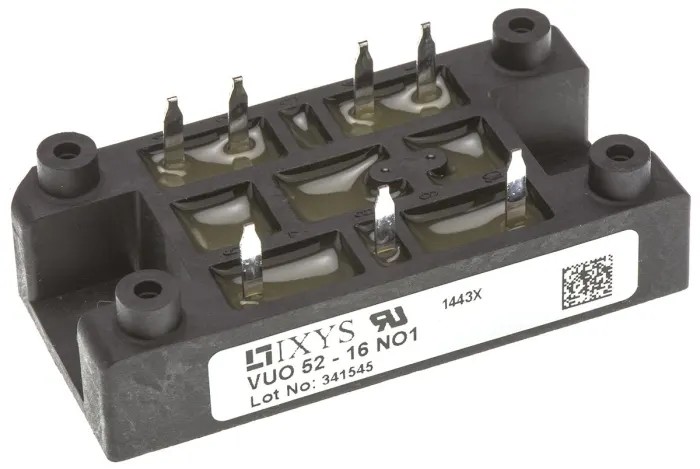

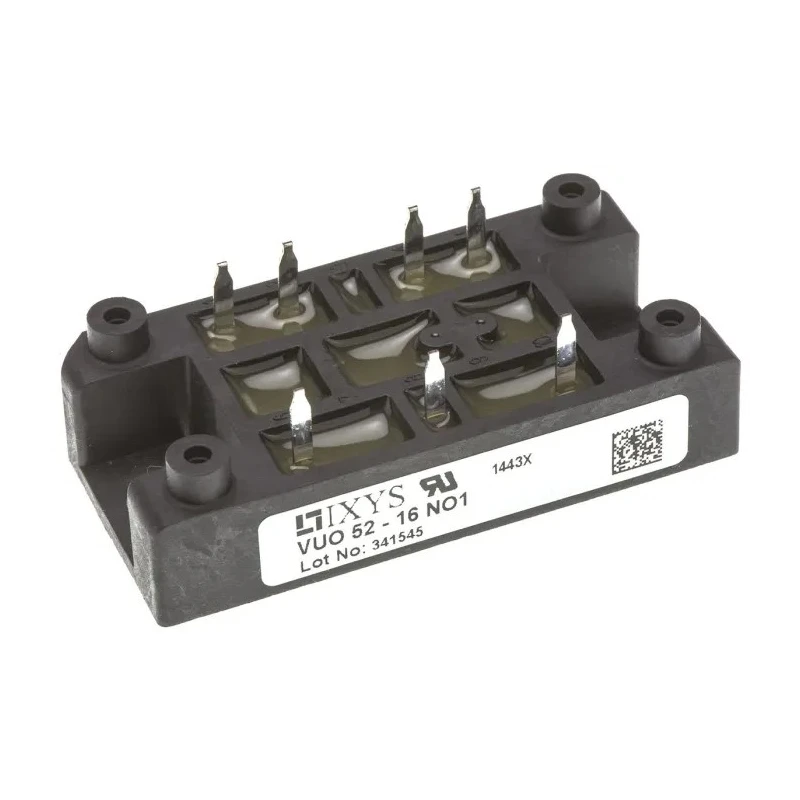

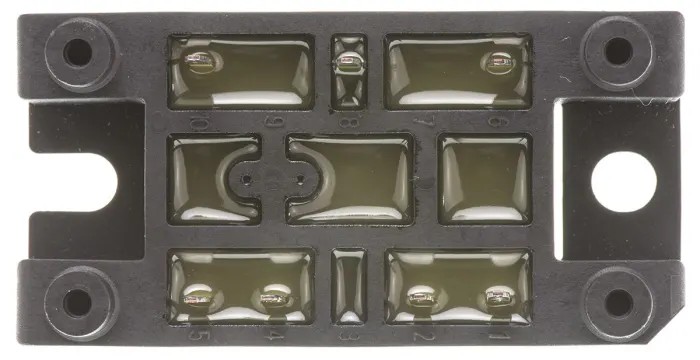

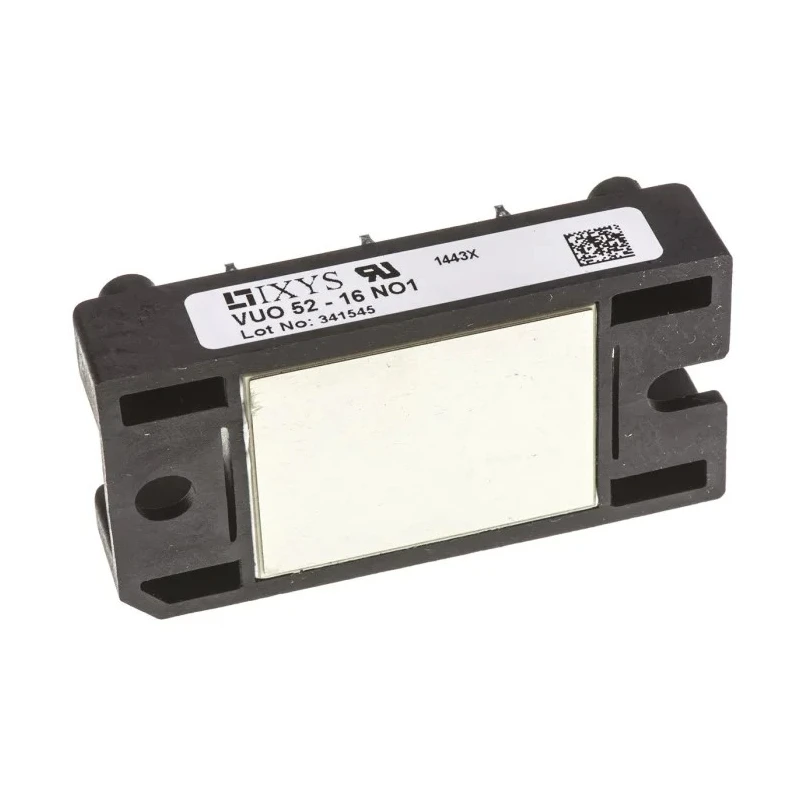

IXYS 3-Phase Bridge Rectifier Module 1600 V 375 A Panel Mount VUO52-16NO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 17mm |
| Length | 63mm |
| Model | VUO52-16NO1 |
| Width | 31.6mm |
| Mount Type | Panel |
| Series | VUO52 |
| Configuration | Single |
| Maximum Operating Temperature | 130°C |
| Package Type | V1-A-Pack |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 375A |
| Forward Current If | 55A |
| Peak Forward Voltage Vf | 1.46V |
Key Features
- This bridge rectifier module is designed for converting AC to DC in industrial electronic applications.
- Features a low forward voltage drop of 1.46 V for enhanced efficiency.
- Operates reliably within -40°C to 130°C temperature range.
- Includes 5 pins to support a single configuration and a three-phase system.
- Package type V1-A-Pack with direct copper bonding ceramic improves thermal cycling and reduces weight.
- Solders easily to PCB with pins designed for panel mounting.
- Maintains very low leakage current at peak reverse current of 300 μA.
Product Description
IXYS VUO52-16NO1 Bridge Rectifier Module is a robust 3-phase power semiconductor device designed for industrial and electronic applications requiring reliable rectification of AC power to DC output.
Operating with a peak reverse repetitive voltage of 1600 V and a forward current rating of 55 A, this module maintains performance stability between temperatures of -40°C and 130°C. It supports a peak non-repetitive forward surge current of 375 A, handling short transient surges effectively.
Equipped with 5 soldering pins for panel mounting onto PCBs, the module is packaged in the V1-A-Pack form factor featuring direct copper bonding ceramic material. This construction offers improved temperature cycling capabilities, reduced weight, and low forward voltage drop of 1.46 V which enhances energy efficiency.
The device exhibits a very low peak reverse current (leakage) of 300 μA, ensuring minimal power loss. Its compact physical dimensions of 63 mm length, 31.6 mm width, and 17 mm height make it suitable for a variety of power electronic assemblies.
Typical usage includes industrial power supplies, motor drives, and other high-performance power conversion and control systems. This module is UL registered (E 72873), confirming compliance with recognized safety standards.
This bridge rectifier module is designed for converting AC power to DC output efficiently. Panel mount type with 5 pins facilitates easy integration onto printed circuit boards. Constructed with direct copper bonding (DCB) ceramic for superior thermal and mechanical properties.
Reduced weight and improved temperature and power cycling resilience enhance durability. Low forward voltage drop and low leakage current optimize electrical performance and minimize losses. Suitable for industrial, manufacturing, and power management applications involving three-phase electrical systems.
Explore more semiconductor devices and Bridge Rectifiers at EnvMart for your specialized industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the IXYS VUO52-16NO1 bridge rectifier module is 1600 V.
This model can operate reliably at a maximum temperature of 130°C.
The forward current rating of the VUO52-16NO1 is 55 A.
It features 5 pins for panel mounting.
The forward voltage drop of this module is 1.46 V, which enhances its efficiency.
The peak non-repetitive forward surge current rating is 375 A.
The dimensions of this model are 63 mm in length, 31.6 mm in width, and 17 mm in height.
This bridge rectifier module supports panel mounting.
It operates within a temperature range of -40°C to 130°C.
The peak reverse current is 300 μA, which indicates very low leakage current.
The module is packaged in a V1-A-Pack type, featuring direct copper bonding ceramic.
The IXYS VUO52-16NO1 is manufactured in India.
