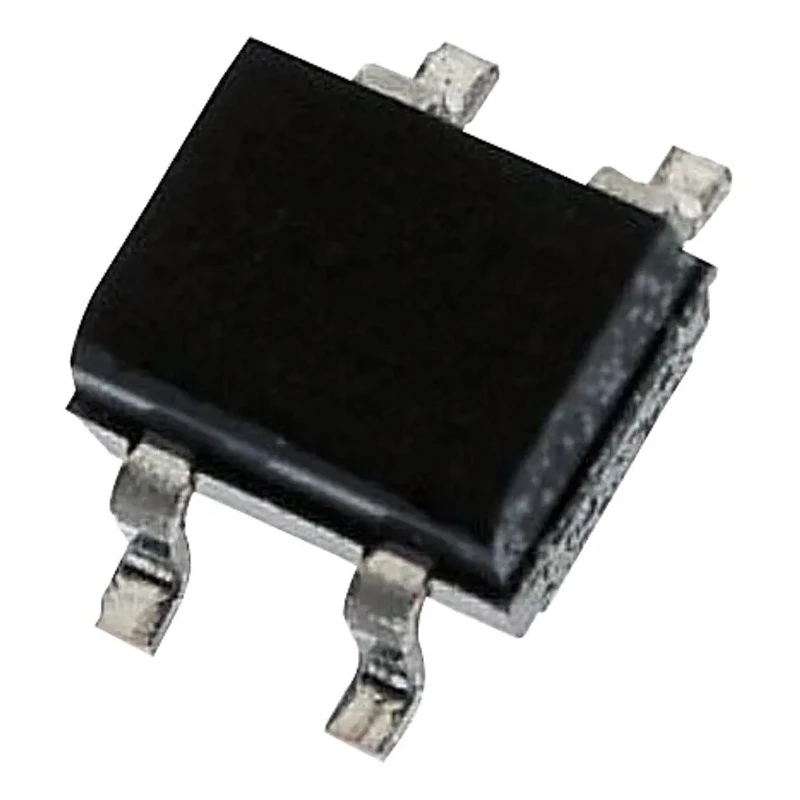

DiodesZetex Bridge Rectifier Peak Reverse Voltage 200V Forward Current 1A 4-Pin DFS Package DF02S-T

DiodesZetex DF02S-T is a high-quality bridge rectifier specifically designed for converting alternating current (AC) to direct current (DC) in electronic circuits. This device supports a peak reverse repetitive voltage of 200 V and a forward current of 1 A, making it suitable for low power applications requiring efficient rectification.

Its glass passivated die construction provides enhanced reliability and long-term operational stability. The bridge rectifier is housed in a DFS package with a 4-pin configuration optimized for surface mount technology (SMT) on printed circuit boards (PCBs). Its compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height facilitate use in space-constrained applications.

Operating within a broad temperature range from -65°C to 150°C, the DF02S-T ensures consistent performance under varying environmental conditions. The device also supports a peak non-repetitive forward surge current of 100 A and exhibits a low forward voltage drop of 1.1 V, contributing to reduced power loss during operation.

Compact surface mount bridge rectifier for PCB integration. Wide operating temperature range from -65°C to 150°C. Low forward voltage drop enhances efficiency. Handles surge current peaks up to 100 A. Glass passivated die construction for improved reliability.

Single-phase, 4-pin configuration in DFS package.

This Bridge Rectifier is ideal for semiconductor applications requiring a reliable and efficient AC to DC conversion component. It finds use in industrial, electronic, automotive, and power supply design contexts, among others.

DiodesZetex products are recognized for quality manufacturing standards; however, this specific component does not carry automotive certifications. Explore EnvMart’s extensive semiconductor selection for compatible components and accessories to complement your projects.
