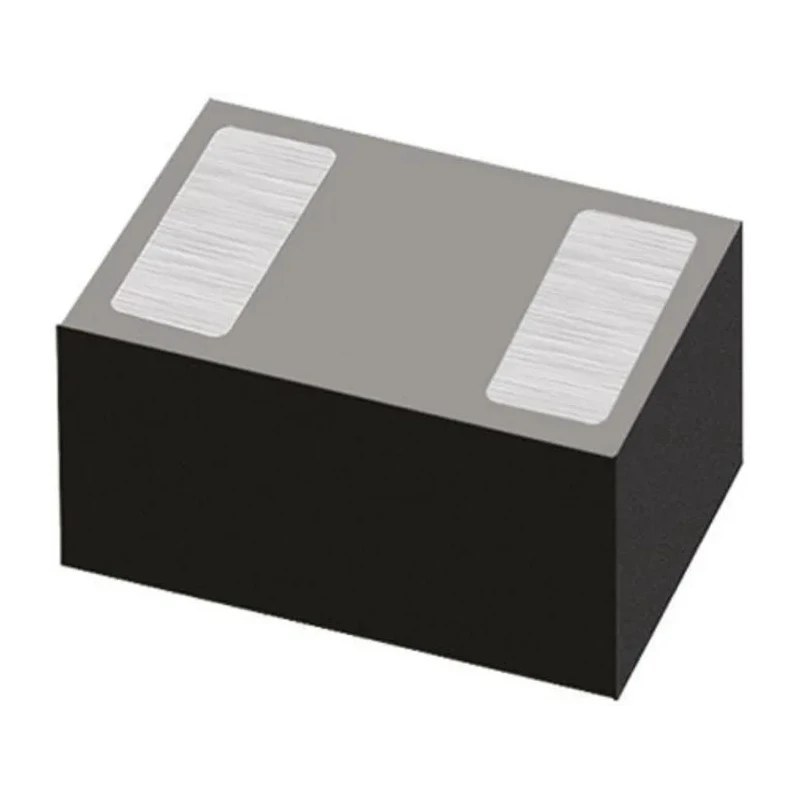

DiodesZetex 30 V 100 mA Schottky Diode 2-Pin X3-DFN SDM02U30LP3-7B

DiodesZetex SDM02U30LP3-7B is a high-performance Schottky diode with a 30 V peak reverse voltage and 100 mA maximum continuous forward current. It is designed for surface mount applications and packaged in a compact X3-DFN dual-pin form factor. The low forward voltage of 370 mV enhances power efficiency and reduces heat generation in electronic circuits.

This Schottky diode exhibits a broad operating temperature range from -65°C to 150°C, making it suitable for diversified industrial, laboratory, and consumer electronics environments. Its low peak reverse current of 4 μA reduces power leakage, enhancing overall circuit performance. The diode can handle transient surge currents up to 500 mA, ensuring robustness during voltage spikes.

Manufactured with Schottky barrier technology, it provides superior switching speed and thermal stability compared to traditional PN junction diodes. This makes the diode an excellent choice for rectification in power supplies, protection circuits, and high-frequency switching applications.

The small X3-DFN package optimizes board space and supports automated assembly processes. Since it does not conform to automotive standards, the diode is primarily intended for general electronics and industrial applications.

Key features include low forward voltage drop, high surge current capacity, and wide temperature tolerance. The device is well suited for power management, voltage clamping, and signal rectification tasks in compact electronic devices.

The diode supports a maximum continuous forward current of 100 mA. It withstands a peak reverse repetitive voltage of 30 V. The maximum forward voltage drop is 370 mV ensuring efficient conduction. Operating temperature range extends from -65°C to 150°C for versatile environmental conditions.

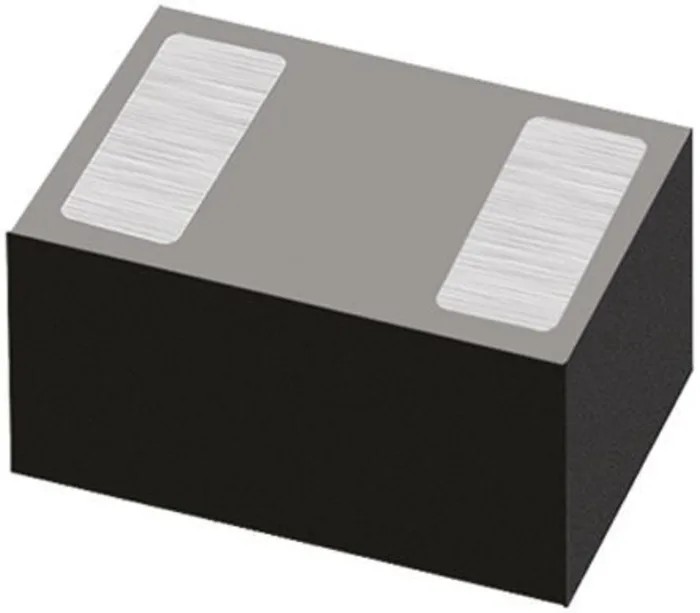

The device package is compact X3-DFN with dimensions 0.65 mm length, 0.35 mm width, and 0.32 mm height. It features a low peak reverse current of 4 μA, minimizing leakage losses. Peak non-repetitive forward surge current capability is 500 mA.

This Schottky rectifier offers superior thermal stability and low forward voltage drop compared with standard PN diodes. Ideal for applications requiring fast switching and high efficiency in power electronics and signal processing.

The diode does not meet automotive standards but is highly reliable for industrial and consumer electronics use. Discover more in our Schottky Diodes & Rectifiers category for diverse electronic component needs.
