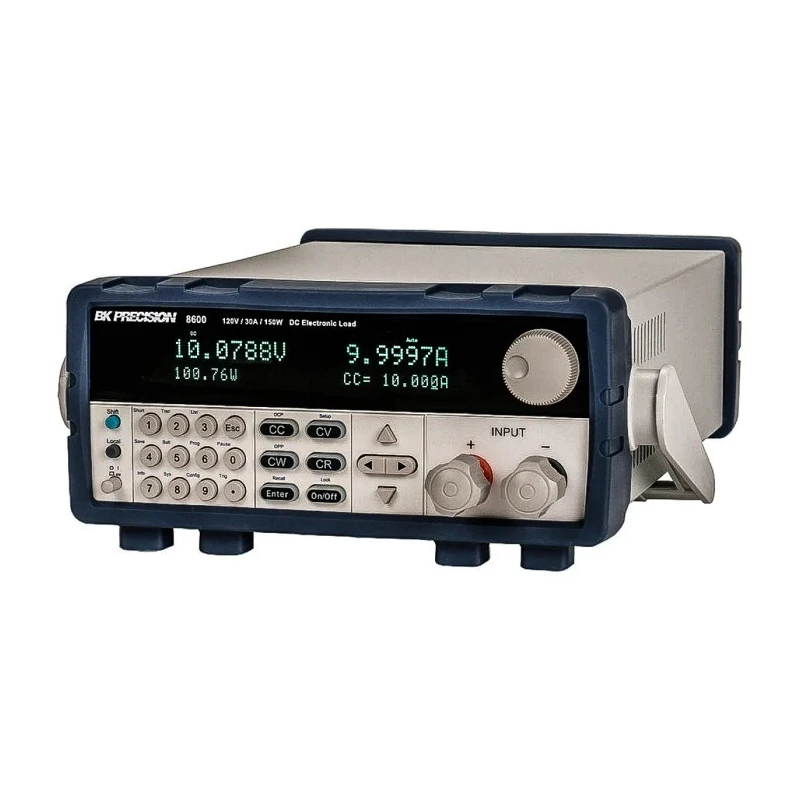

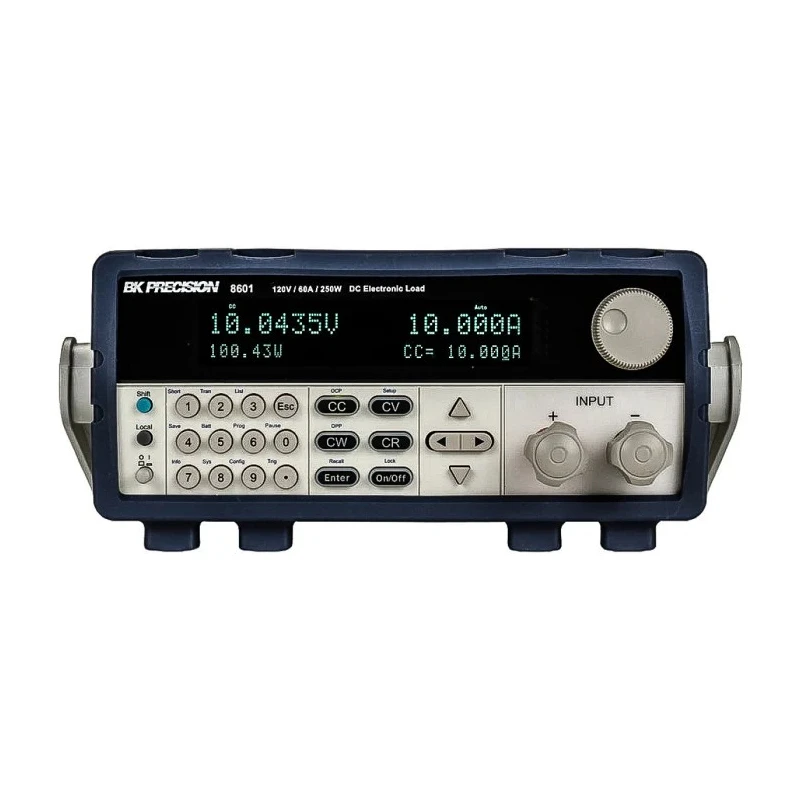

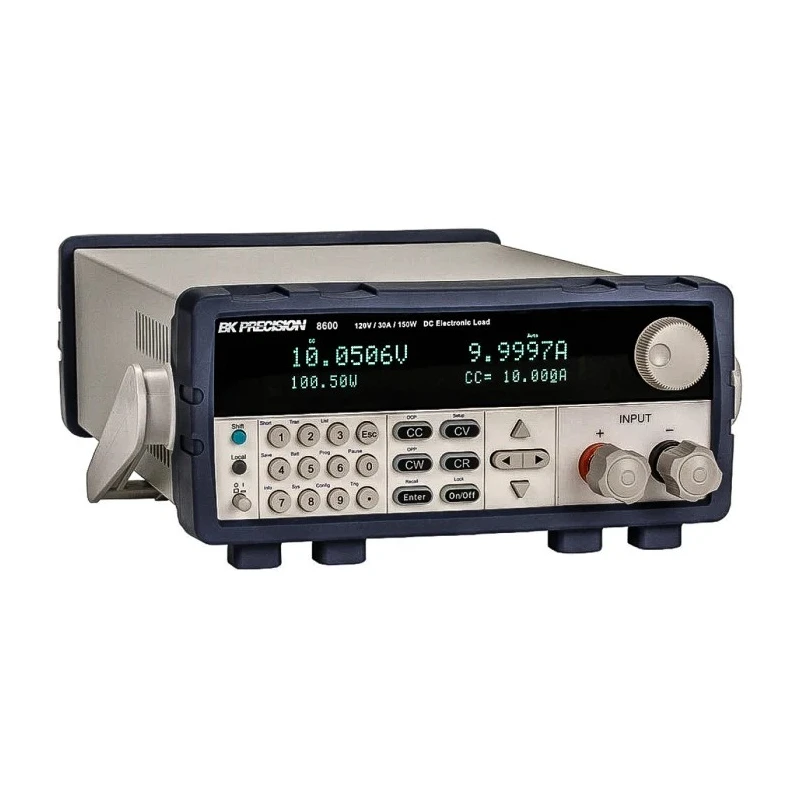

BK Precision BK86 Series Programmable Electronic DC Load 0 to 250 W, 0 to 120 V, 0 to 60 A BK86

Free Delivery in India | Lowest Global Shipping Charges

BK Precision BK86 Series Programmable Electronic DC Load 0 to 250 W, 0 to 120 V, 0 to 60 A BK86

Name: BK Precision BK86 Series Programmable Electronic DC Load 0 to 250 W, 0 to 120 V, 0 to 60 A BK86
Brand: BK Precision
SKU: 264690
Price: 2699.01 USD
Availability: InStock



Category Electronic Loads Brand BK Precision Condition New

Specifications

Country of Origin	China
Resolution	16-bit
Brand	BK Precision
Efficiency	95%
Model	BK86
Series	BK86
Load Type	Programmable
Operating Modes	Constant Power, Constant Current, Constant Resistance, Constant Voltage

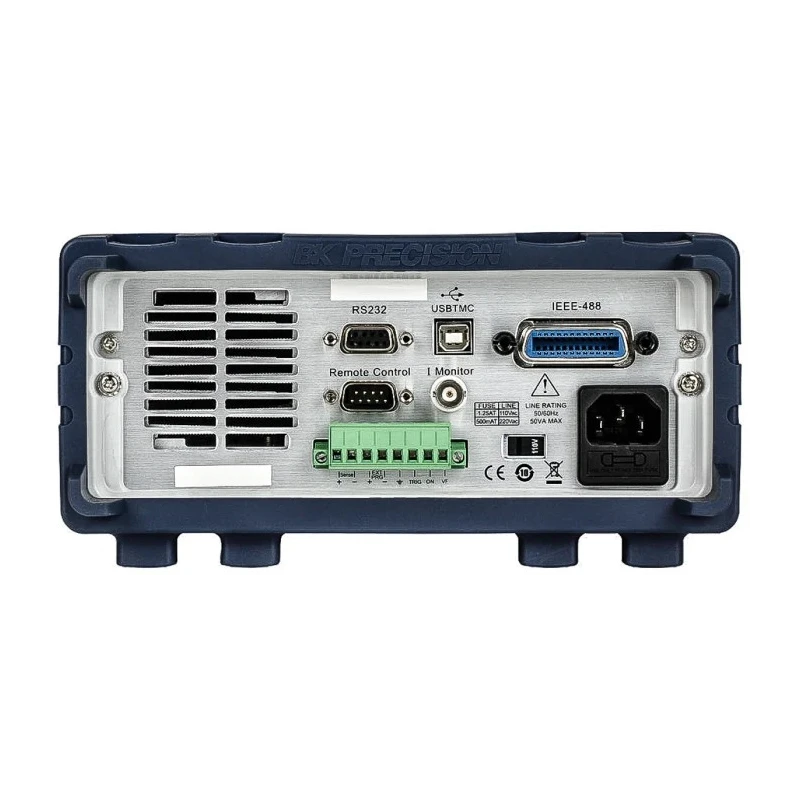

Interfaces	Standard USB (USBTMC-compliant), RS-232, and GPIB interfaces with SCPI protocol support
Interface Type	USB, RS232
Rack Unit	2U
Constant Voltage Mode Range	0 to 120 V
Constant Current Mode Range	0 to 60 A
Constant Resistance Mode Range	0 to 30 Ω
Constant Wattage Mode Range	0 to 250 W

Key Features

Compact 2U half-rack form factor allows side-by-side rack mounting of two units.
Supports CC, CV, CR and CW operating modes with adjustable slew rate in CC mode.
High-resolution 16-bit voltage and current measurements ensure precise load testing.
Fast transient response speeds up to 25 kHz meet demanding testing requirements.
Standard USB (USBTMC-compliant) and RS-232 interfaces support remote communication.
Built-in battery test functions include voltage level, capacity level and timer stop conditions.
Remote voltage sensing compensates voltage drop in connecting wires.
Protection features include OVP, OCP, OPP, OTP, and reverse voltage safeguards.

Product Description

BK Precision BK86 Series Electronic DC Load is a highly capable programmable DC load designed for comprehensive testing of various DC sources with a power range from 0 to 250 watts, voltage range up to 120 volts, and current range up to 60 amperes.

This benchtop 2U half-rack device delivers high accuracy with its 16-bit measurement resolution, capable of detecting voltage changes as small as 1 mV and current changes down to 0.1 mA. It operates across constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) modes, making it versatile for different testing scenarios.

The unit offers fast transient operation speeds up to 25 kHz, which is essential for testing power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays efficiently. The adjustable slew rate in constant current mode enhances test flexibility.

Communication is facilitated via standard USB (USBTMC-compliant) and RS-232 interfaces, enabling remote control and monitoring. The device includes a list mode function, short circuit testing, and specialized testing functionalities such as a built-in battery test function with voltage, capacity levels, and timer stop conditions. Additionally, a CR-LED mode simulates typical LED load behaviors.

Compact 19-inch half-rack form factor. CC, CV, CR, CW operating modes with adjustable slew rate. 16-bit resolution measurements of voltage and current. Fast transient response up to 25 kHz. Remote voltage sensing for accurate load application.

Standard USB and RS-232 interfaces for remote communication. Multiple protection features for safe operation. Battery test and LED simulation modes included. Applications include DC power supplies, converters, batteries, chargers, and solar systems.

This electronic DC load is manufactured in China and built to meet rigorous test and measurement standards. It is ideal for industrial, laboratory, manufacturing, and quality assurance environments requiring precise DC load testing.
