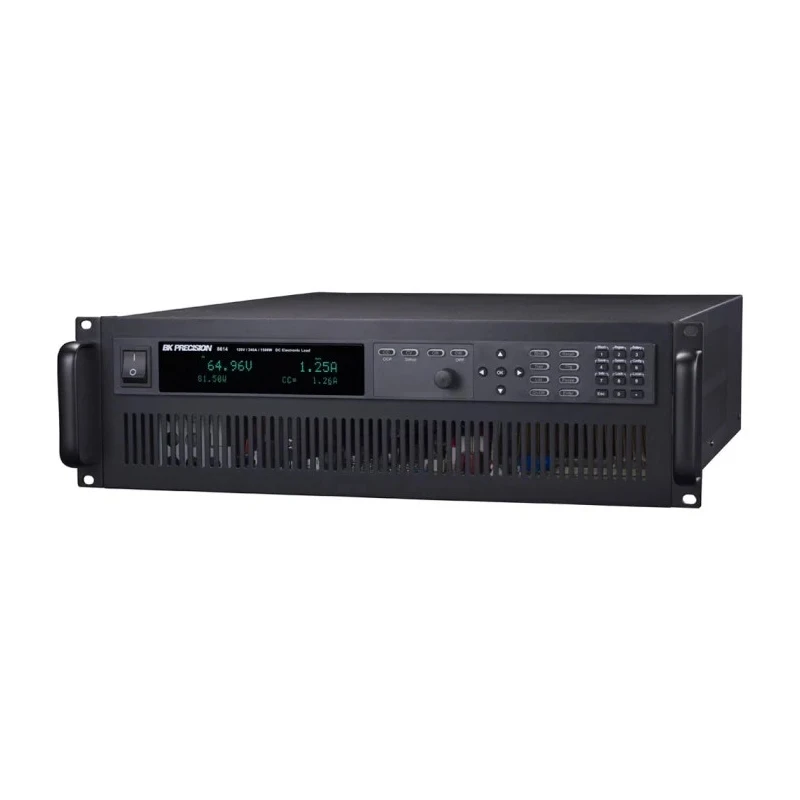

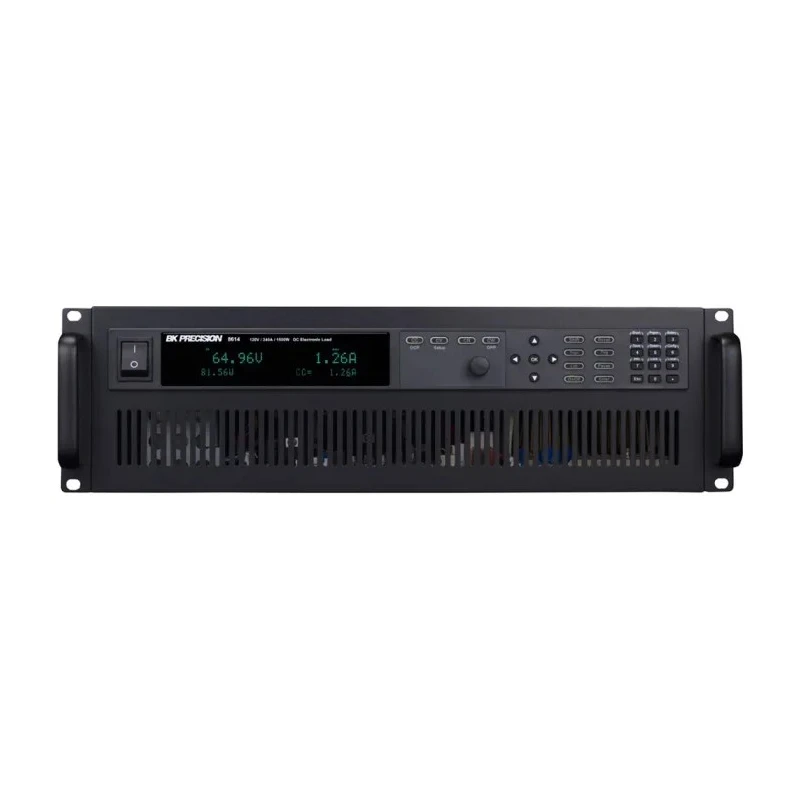

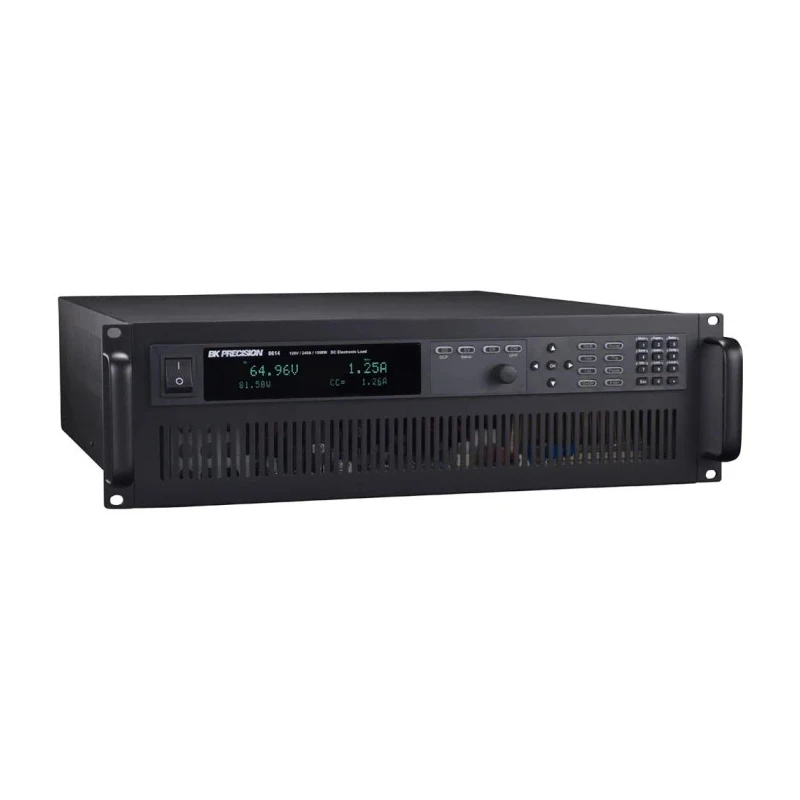

BK Precision 8600 Series Electronic DC Load, Programmable, 0 to 750 W, 0/120 V, 0 to 120 A BK8610

BK Precision BK8610 Electronic DC Load from the 8600 Series is a programmable DC load designed for versatile electronic test and measurement applications. It supports power ratings from 0 to 750 W, voltage ranges from 0 to 120 V, and current capacity up to 120 A, making it suitable for bench testing DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

The device features multiple operating modes including constant voltage (CV), constant current (CC), constant resistance (CR), and constant power (CW) to simulate various load conditions. Fast transient response speeds up to 25 kHz allow detailed dynamic testing. It delivers high resolution and accuracy with 16-bit measurement capabilities.

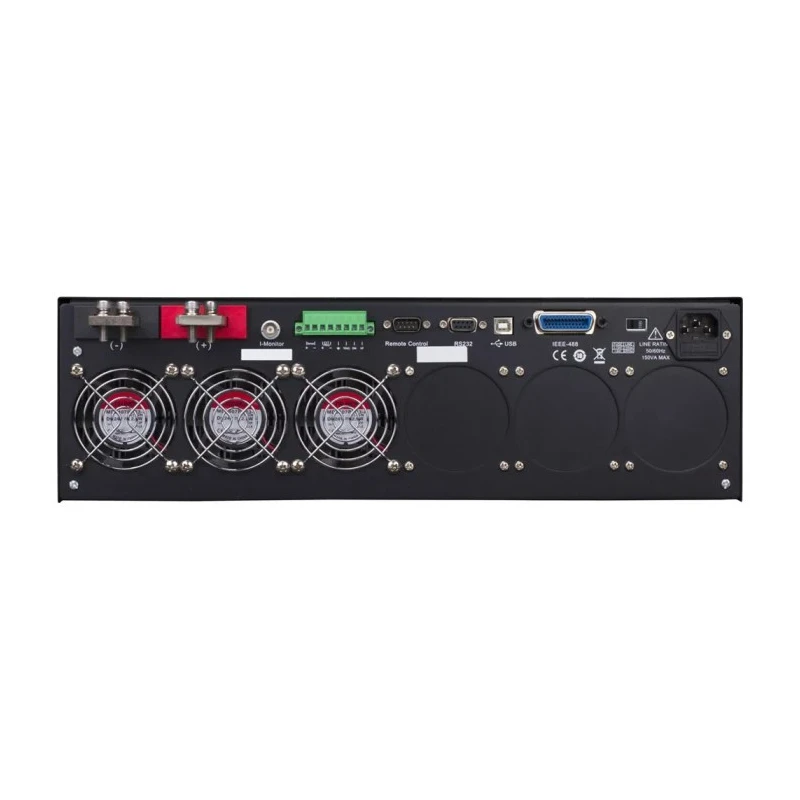

Communication and control are facilitated via standard USB (USBTMC-compliant), RS-232, and GPIB interfaces supporting SCPI protocol, enabling remote programming and data logging. Additional features include adjustable slew rate in current mode, short circuit and battery test functions, and remote voltage sensing to compensate for wiring losses.

Safety functions encompass over-voltage protection (OVP), over-current protection (OCP), over-power protection (OPP), over-temperature protection (OTP), and local/remote reverse voltage protection (LRV/RRV).

This 2U rack unit device is engineered to provide reliable, accurate load testing in laboratory, industrial, manufacturing, and research environments. Its compact benchtop design offers modular system performance for diverse electronic evaluation needs.

Operates in constant voltage, constant current, constant resistance, and constant power modes. 16-bit resolution voltage and current measurement ensures precision. Fast transient mode up to 25 kHz for dynamic load testing.

Standard USB, RS-232, and GPIB interfaces with SCPI compliance. Built-in battery test function with voltage, capacity level, and timer stop conditions. CR-LED mode simulates LED load behavior. Remote voltage sensing compensates voltage drop in wiring.

Comprehensive protection including OVP, OCP, OPP, OTP, LRV, and RRV.

This product is manufactured in China and supplied in new condition. BK Precision Electronic Loads are widely used in laboratories, industrial testing, manufacturing quality assurance, and research applications to ensure precise power source evaluation.
