BK Precision 8600 Series Programmable Electronic DC Load, 0 to 750 W, 0/500 V, 0 to 30 A BK8612

Free Delivery in India | Lowest Global Shipping Charges

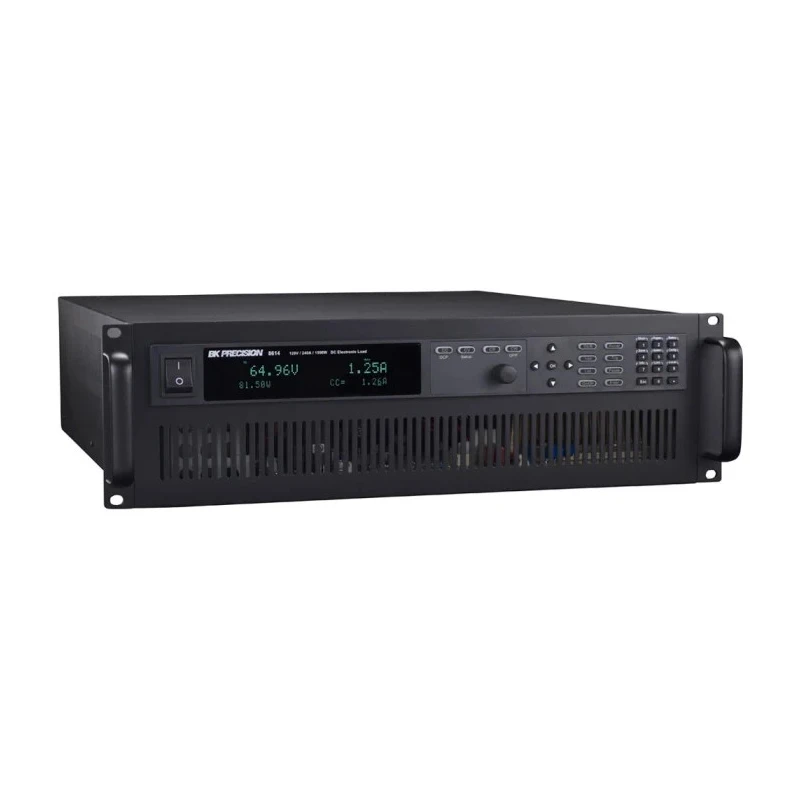

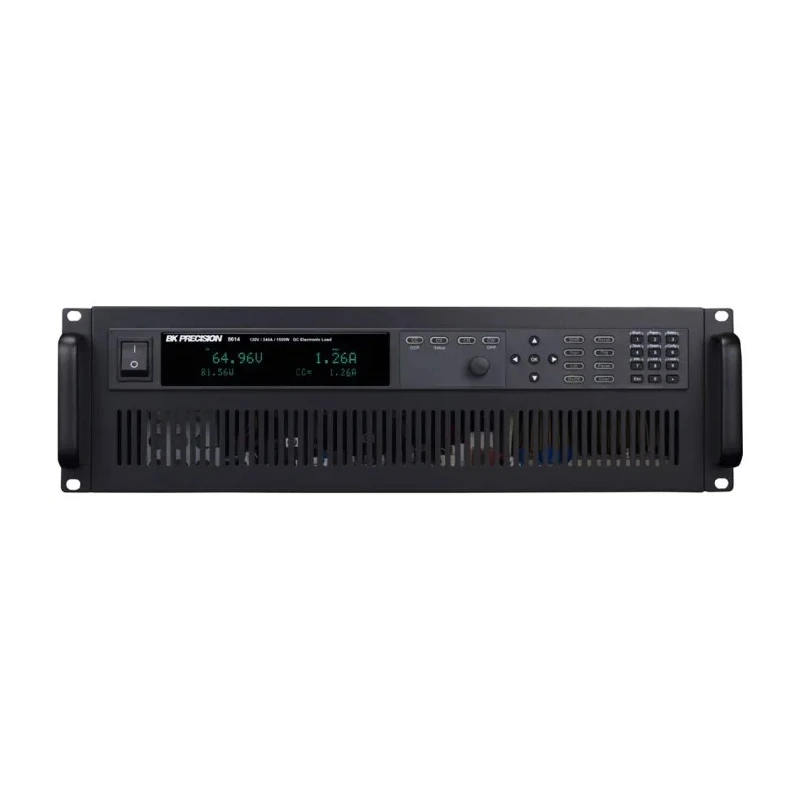

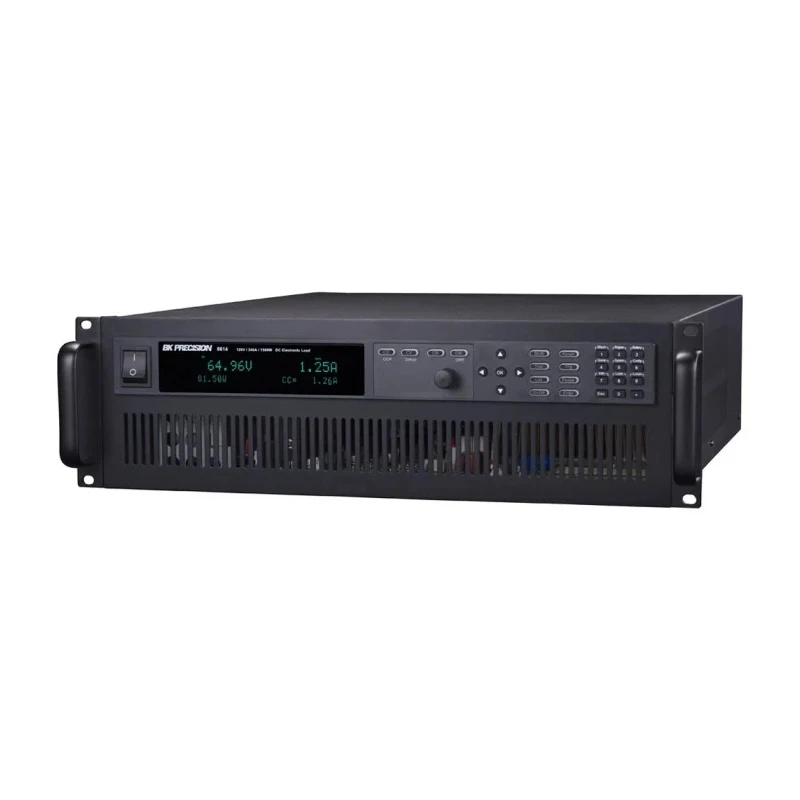

BK Precision 8600 Series Programmable Electronic DC Load, 0 to 750 W, 0/500 V, 0 to 30 A BK8612

Name: BK Precision 8600 Series Programmable Electronic DC Load, 0 to 750 W, 0/500 V, 0 to 30 A BK8612
Brand: BK Precision
SKU: 259092
Price: 6082.06 USD
Availability: InStock



Category Electronic Loads Brand BK Precision Condition New

Specifications

Country of Origin	China
Resolution	16-bit
Brand	BK Precision
Efficiency	95%
Model	BK8612
Series	8600
Load Type	Programmable
Operating Modes	Constant Voltage, Constant Power, Constant Resistance, Constant Current
Interfaces	standard USB (USBTMC-compliant), GPIB, or RS-232 serial interfaces for remote communication
Interface Type	USB, RS232
Rack Unit	2U
Constant Voltage Mode Range	0/500 V
Constant Current Mode Range	0 to 30 A
Constant Resistance Mode Range	10 to 7500 Ω
Constant Wattage Mode Range	0 to 750 W

Key Features

Operates in constant current, voltage, resistance, and power modes.
High-speed transient operations up to 25 kHz for dynamic testing.
Provides 16-bit measurement resolution and high accuracy.
Equipped with USB (USBTMC-compliant), RS232, and GPIB interfaces for remote control.
Includes battery test, short circuit test, and LED load simulation modes.
Remote voltage sensing compensates for voltage drop in wiring.
Wide voltage and current range supports varied DC source testing.
Protective features include OVP, OCP, OPP, OTP, and reverse voltage protection.

Product Description

BK Precision BK8612 is a programmable electronic DC load from the 8600 Series designed for testing and evaluating a variety of DC sources including DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays. It features a wide operating voltage range of 0 to 500 V and current range up to 30 A, with power handling up to 750 W within a compact 2U benchtop form factor.

With fast transient operation speeds reaching 25 kHz and 16-bit measurement resolution, the BK8612 provides highly accurate and reliable measurement data. It supports multiple operating modes such as constant current, constant voltage, constant resistance, and constant power, enabling flexible testing scenarios to simulate real-world load conditions.

The DC load unit includes advanced functions like list mode, adjustable slew rate in constant current mode, short circuit testing, and a built-in battery test function with voltage, capacity, and timer stop conditions. Additionally, the CR-LED mode simulates the loading behavior of typical LEDs, enhancing applicability in LED driver testing.

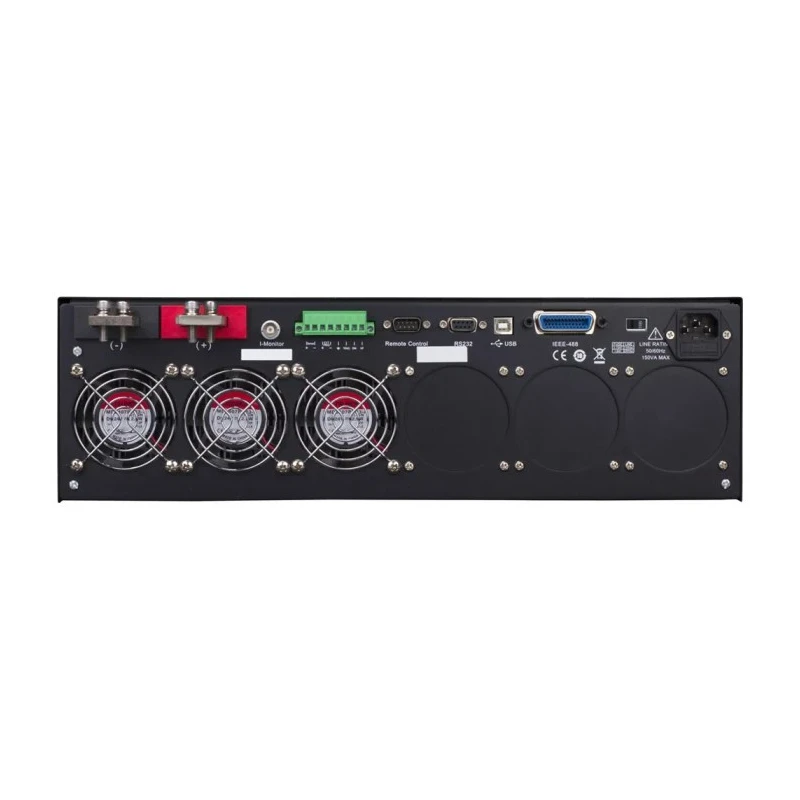

Remote voltage sensing compensates for voltage drops across wiring to ensure measurement fidelity. The device interfaces with standard USB (USBTMC-compliant), RS-232 serial, and GPIB protocols, allowing seamless integration into automated test systems and remote operation. Comprehensive protection features such as overvoltage protection (OVP), overcurrent protection (OCP), overpower protection (OPP), over temperature protection (OTP), and local/remote reverse voltage protection safeguard the instrument and the device under test.

This DC electronic load is ideally suited for industrial, manufacturing, laboratory, HVAC, and electronics R&D applications where precise load simulation and measurement are essential.

Operates with up to 95% efficiency for reliable power consumption. 2U rack unit size for convenient benchtop or rack mounting. Wide compatibility with various DC sources including batteries and photovoltaic arrays. Robust design and Chinese origin with new product condition.
