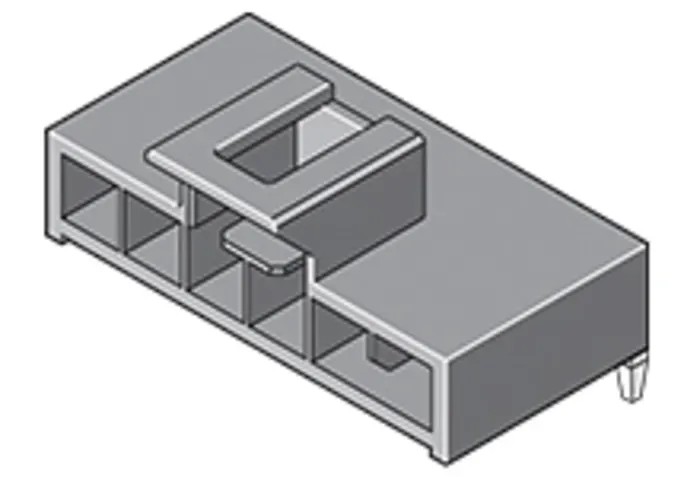

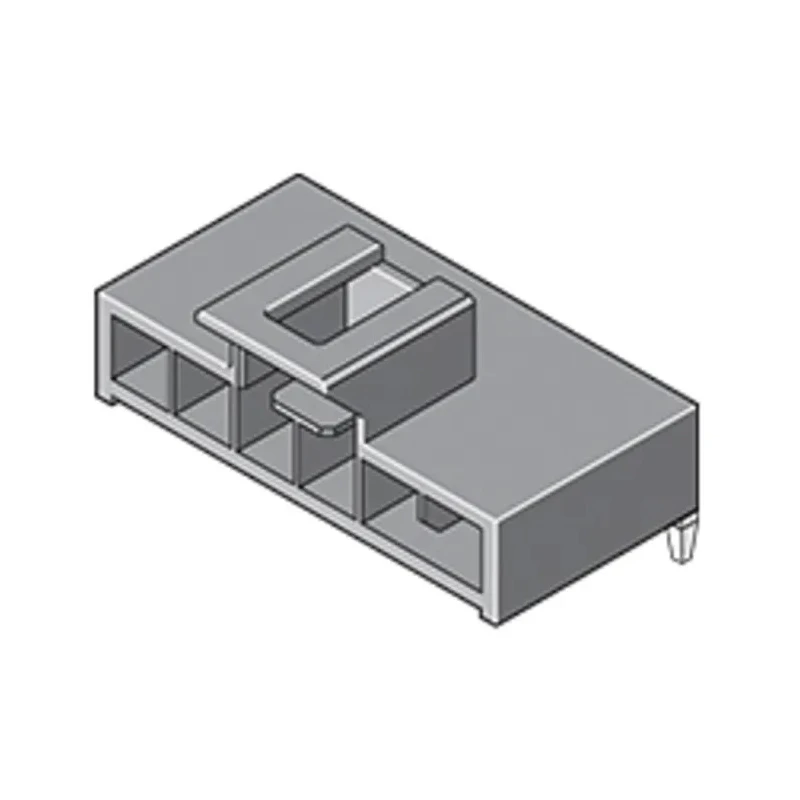

Molex Nano-Fit Series Right Angle Through Hole PCB Header, 2 Contact, 2.5 mm Pitch, 1 Row, Shrouded 105313-1102

The Molex 105313-1102 is a Nano-Fit Series Right Angle Through Hole PCB Header designed for precise wire-to-board connections with a 2.5 mm pitch and shrouded single row housing. It features 2 male contacts constructed from brass with tin plating to ensure corrosion resistance and excellent conductivity. The connector supports a high current rating of 6.5A and a voltage of up to 250V, operating efficiently across a temperature range from -40°C to 105°C.

Its right angle orientation and fully isolated terminals enable optimized PCB layout and enhanced mechanical stability while eliminating the need for through holes on multilayer circuit boards. The shrouded design provides positive locking with an anti-snag feature, improving the durability and service life of the connector in complex electronic assemblies.

This PCB header is ideal for industrial electronics, manufacturing, HVAC control panels, laboratory instrumentation, and commercial electronics where reliable power and signal integrity are critical. The terminal interface with four points of contact ensures secure electrical connection, and the retention tang with contact ribs enhances mechanical retention.

Molex’s Nano-Fit connector series is among the smallest fully isolated headers available, facilitating compact design requirements and supporting pick-and-place assembly with embossed tape availability. This product aligns with high-quality standards required for modern PCB connector applications.

The package includes 1 piece of Molex Nano-Fit Right Angle PCB Header Model 105313-1102. Manufactured in China, this product ensures consistency and quality for demanding electronics projects and industrial applications.

Features 2 contacts in a single row with shrouded housing. Right angle orientation optimizes PCB space usage. Supports a current rating of up to 6.5A and 250V voltage. Operates reliably within -40°C to 105°C temperature range.

Made of brass contacts with tin plating for durability. Terminal interface includes four points of contact for secure connection. Retention tang and contact rib improve mating security. Ideal for industrial and commercial electronics manufacturing.

Manufactured in China meeting Molex quality standards. Explore more Molex connectors and PCB Headers with EnvMart for your electronics assembly requirements.
