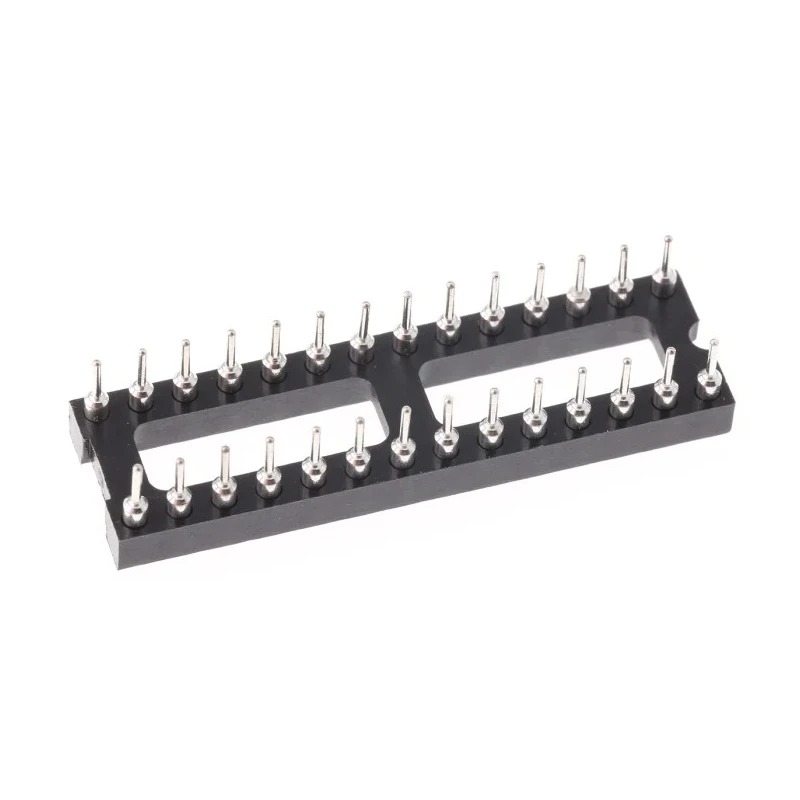

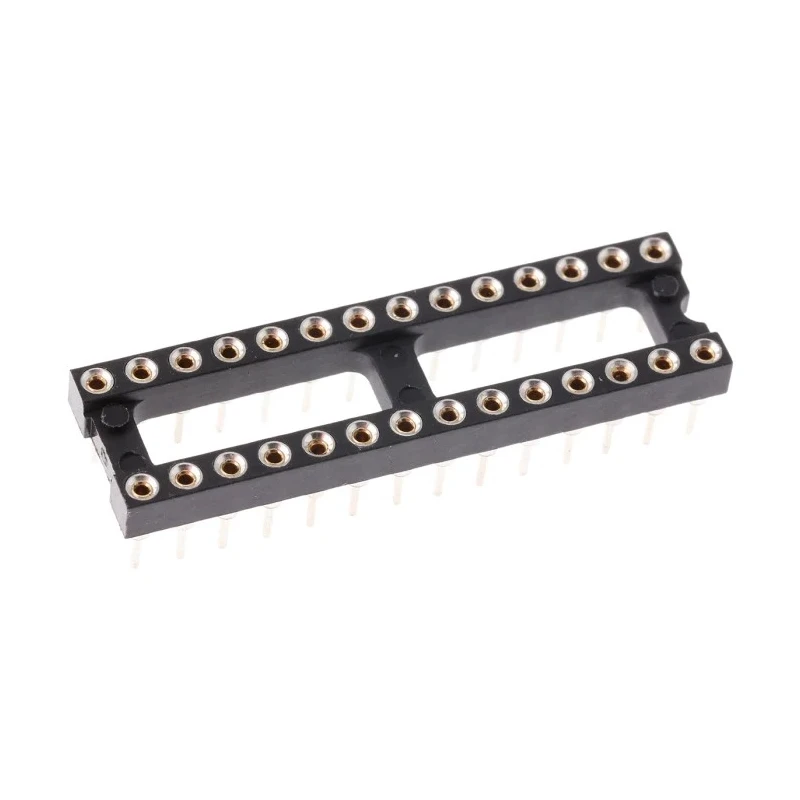

Preci-Dip 110 Series 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Open Frame DIL Socket 110-87-328-41-001101

Preci-Dip 110-87-328-41-001101 is a high-quality 28 way Dual-In-Line (DIL) socket with a 2.54 mm pitch, designed for vertical orientation and through-hole mounting.

This open frame DIL socket features turned pin contacts made of brass and beryllium copper alloy with tin and gold plating, ensuring excellent conductivity and corrosion resistance. The housing is made from fibreglass reinforced polyethylene terephthalate, providing strong mechanical support and durability.

It supports up to 1 ampere current and operates safely at voltages up to 150V DC, making it suitable for various electronics assembly and testing applications. Operating temperature ranges from -55°C to 125°C, allowing use in industrial and laboratory environments.

The socket includes four finger gold flash contact clips designed for reliable and secure connections, with solder termination to facilitate integration onto printed circuit boards. Its dimensions include 35.5 mm length, 10.1 mm width, 7.62 mm row width, and 2.8 mm depth, compatible with standard DIL package requirements.

Manufactured in Switzerland, this component meets high-quality standards, featuring an open frame design for easy inspection and maintenance. Designed for 28 contacts with a 2.54 mm pitch for precise integration. Features a vertical open frame construction with through-hole mounting.

Constructed with brass and beryllium copper alloy contacts plated with tin and gold for durability. Supports a maximum current of 1A and voltage up to 150V DC. Suitable for operating temperatures from -55°C to 125°C for versatile applications.

Fibreglass reinforced polyethylene terephthalate housing ensures mechanical stability. Contact clips feature four finger gold flash for reliable connectivity. Dimensions include 35.5 mm length, 10.1 mm width, 7.62 mm row width, and 2.8 mm depth.

Termination is by soldering to facilitate PCB assembly. Manufactured in Switzerland ensuring high manufacturing standards.

This socket is ideal for use in electronic components manufacturing, industrial controls, instrumentation, and laboratory equipment. It is optimized for secure PCB mounting and easy testing procedures.
