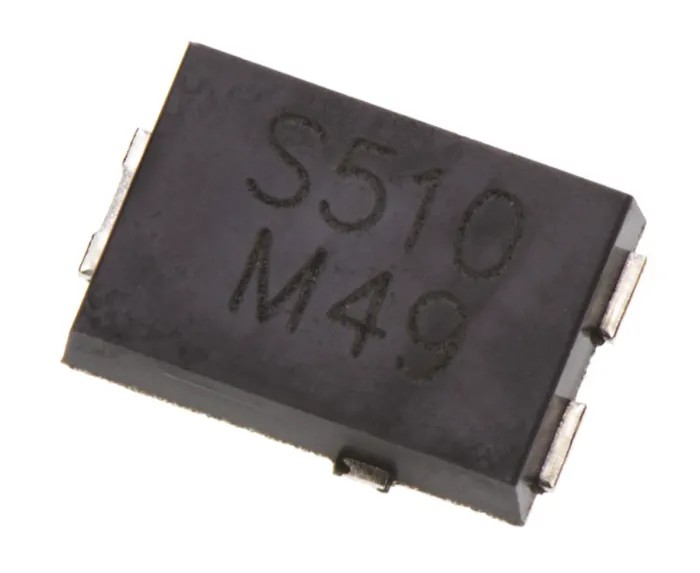

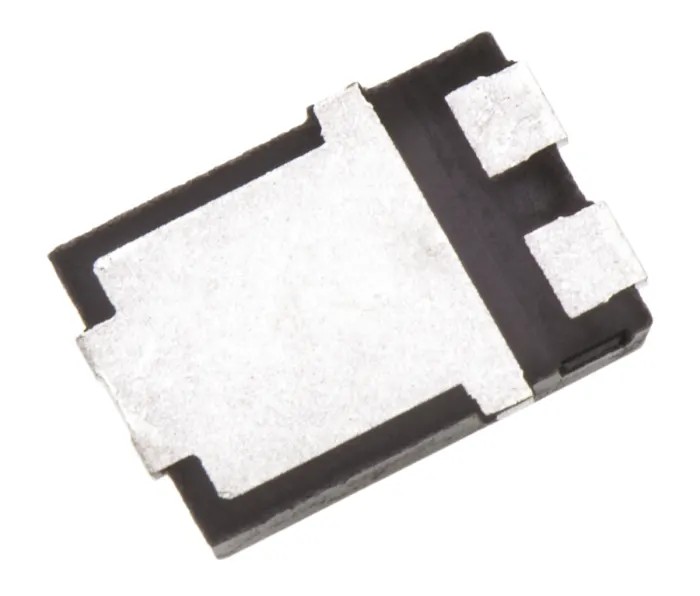

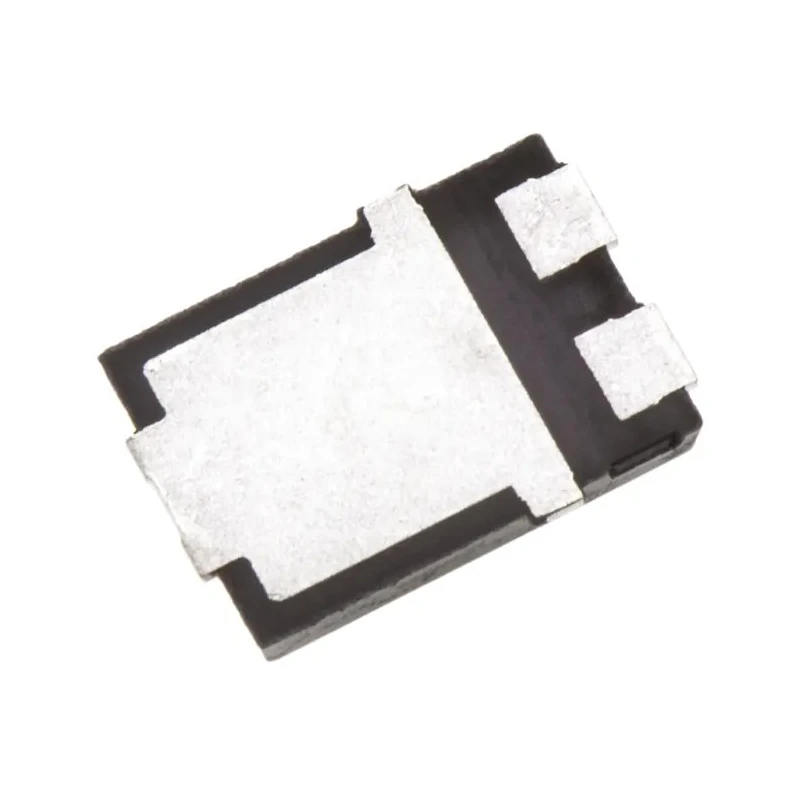

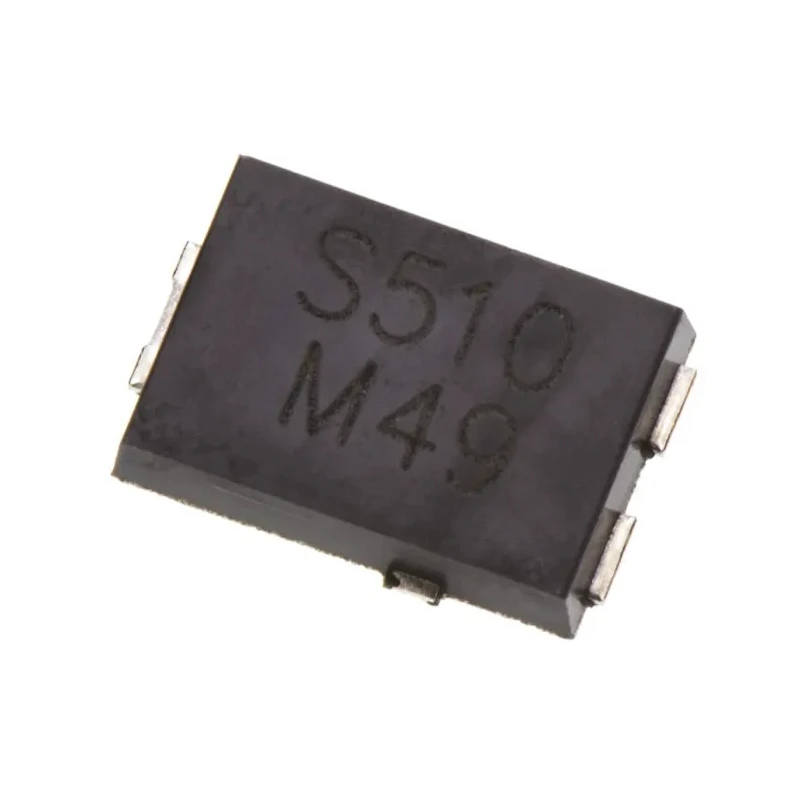

Vishay 100 V 5 A Surface Mount Schottky Diode 3-Pin TO-277 SS5P10-M3/86A

Vishay SS5P10-M3/86A is a high performance Schottky diode designed for industrial and electronic applications requiring efficient power rectification and fast switching capabilities. This diode features a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 100 V. Packaged in a surface mount 3-pin TO-277 case, it offers compact size and robust performance.

Schottky rectifiers are semiconductor diodes with low forward voltage drop and very fast switching actions, resulting in high efficiency and reduced power loss. The SS5P10-M3/86A model supports a peak non-repetitive forward surge current rating of 150 A, ensuring durability under transient overloads. Operating reliably across a wide temperature range from -55°C to 150°C, it suits a variety of industrial, manufacturing, and power supply applications.

The diode’s forward voltage drop is typically 880 mV, optimizing power conversion efficiency. Its 3-pin TO-277 surface mount package allows easy PCB integration for electronics assemblies in consumer, automotive, and commercial equipment, although this specific model is not certified to automotive standards.

Its dimensions are 4.35 mm in length, 6.15 mm in width, and 1.2 mm in height, making it suitable for compact layouts while maintaining thermal and electrical performance. This diode is manufactured in China and has no specific approvals or standards certifications declared.

Maximum continuous forward current of 5 amperes. Peak reverse repetitive voltage rating of 100 volts. Low forward voltage drop of 880 millivolts ensures energy-efficient operation. Wide temperature tolerance from -55° C to 150° C.

Peak surge current capability up to 150 amperes. Compact 3-pin TO-277 surface mount package. Fast switching suitable for high performance power management. High reliability for industrial and electronic power applications.

Manufactured in China ensuring consistent product quality. Non-compliant with automotive standards but ideal for general electronics use.

This Vishay Schottky diode SS5P10-M3/86A is an excellent choice for electronic engineers and technicians working in power electronics, power supplies, rectifiers, and switching circuits. It supports efficient energy management and high-speed rectification in industrial, commercial, manufacturing, and electronic component assembly sectors. Browse more high-quality semiconductor diodes and rectifiers in the EnvMart Electronics & Electricals category for advanced circuit design solutions.
