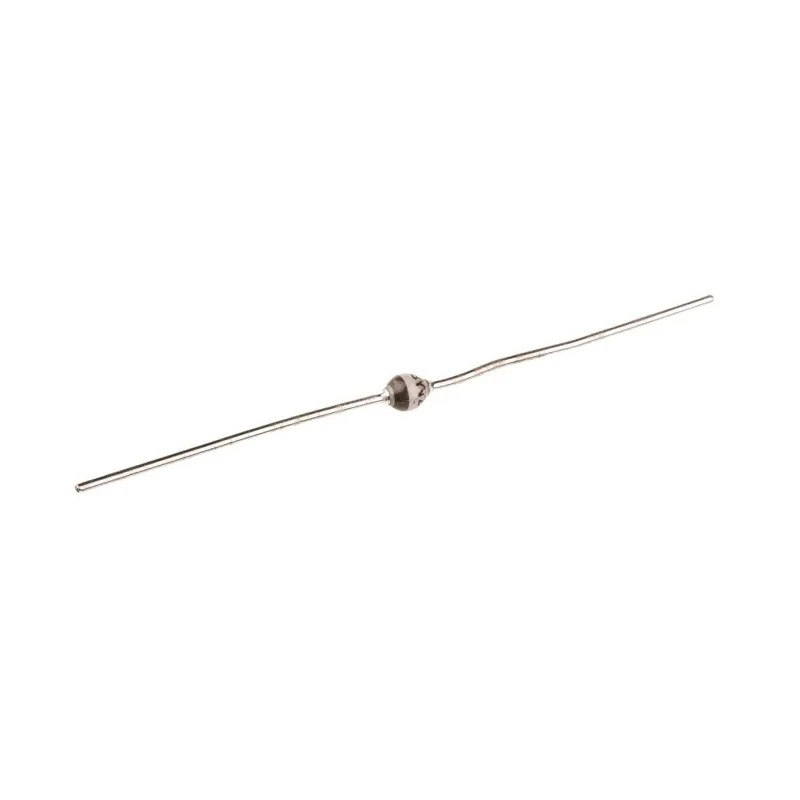

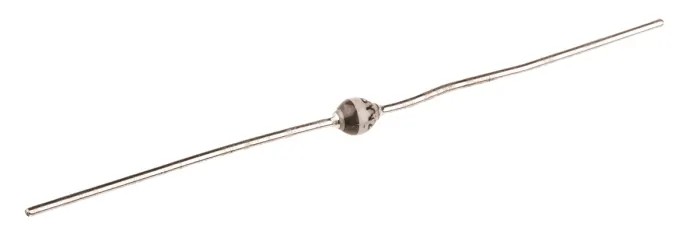

Vishay 150 V 2 A Avalanche Diode 2-Pin SOD-57 Ultrafast Rectifier BYV27-150-TAP

Vishay BYV27-150-TAP is a high-performance avalanche diode designed as an ultrafast recovery rectifier with a 2 A maximum continuous forward current and 150 V peak reverse repetitive voltage, housed in a compact SOD-57 package.

The glass passivated chip junction technology provides excellent reliability and longevity in demanding electronic environments. Its low forward voltage drop reduces conduction losses, enhancing overall device efficiency in power applications.

This diode exhibits a peak non-repetitive forward surge current rating of 50 A, allowing it to handle transient surge events effectively. The matte tin-plated leads are solderable and conform to J-STD-002 and JESD 22-B102 standards, ensuring ease of assembly and robust electrical contacts.

Operating temperature ranges from -55°C to 175°C make it suitable for a variety of harsh industrial and commercial environments. The compact dimensions - 3.6 mm height, 4.2 mm length, and 3.6 mm width - allow for space-saving layout in high-density circuit designs.

This device finds extensive use in high frequency rectification and freewheeling applications within switching mode converters, inverters, and telecommunications equipment. Its avalanche rectifier characteristics make it ideal for circuits requiring rapid switching and minimal power loss.

Ultrafast reverse recovery time enhances switching efficiency. Low forward voltage drop minimizes power loss. High forward surge capability supports transient currents up to 50 A. Construction with glass passivated chip junction ensures durability.

Suitable for high frequency rectification in switching mode converters and inverters. Matte tin-plated solderable leads comply with industry standards. Compact SOD-57 package with 3.6 mm height, 4.2 mm length, and 3.6 mm width.

Operates reliably between -55°C to 175°C with excellent thermal rating. Colour band marking indicates cathode polarity for easy identification. Commercial grade RoHS-compliant with moulding compound meeting UL 94 V-0 flammability rating.

This Vishay diode is suited to industrial, telecommunications, computing, and consumer electronics applications where reliable high-frequency switching and rectification are required.
