Vishay Bridge Rectifier 600 V 60 A 4-Pin Through Hole WOG Package 2W06G-E4/51

Free Delivery in India | Lowest Global Shipping Charges

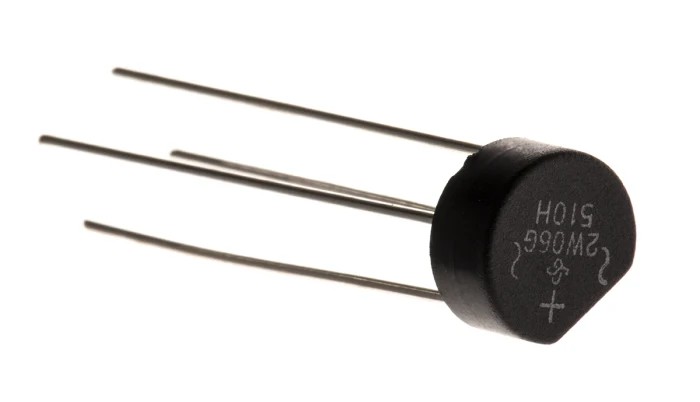

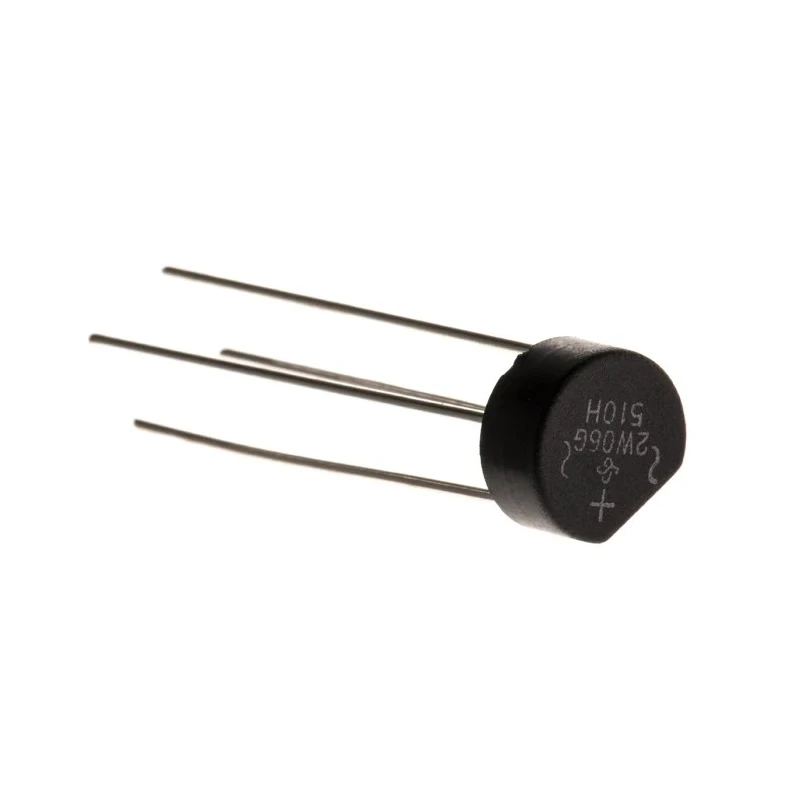

Vishay Bridge Rectifier 600 V 60 A 4-Pin Through Hole WOG Package 2W06G-E4/51

Name: Vishay Bridge Rectifier 600 V 60 A 4-Pin Through Hole WOG Package 2W06G-E4/51
Brand: Vishay
SKU: 217497
Price: 0.56 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	China
Diameter	9.86mm
Brand	Vishay
Height	5.6mm
Length	9.86mm
Model	2W06G-E4/51
Width	8.84mm
Mount Type	Through Hole
Series	2W0
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	WOG
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	60A
Forward Current If	2A
Peak Forward Voltage Vf	1.1V

Key Features

The rectifier supports a peak non-repetitive forward surge current of 60 A.
It operates within a temperature range of -55°C to 150°C.
Package type is WOG with dimensions approximately 9.86 mm length, 8.84 mm width, and 5.6 mm height.
The device features a low peak forward voltage of 1.1 V and peak reverse current of 5 µA.
It uses wire lead structure for PCB through hole mounting aimed at high reliability and thermal performance.
The bridge rectifier suits full-wave rectification applications in various industrial and electronic systems.
It is manufactured in China and belongs to the 2W0 series by Vishay Semiconductor.

Product Description

Vishay 2W06G-E4/51 Bridge Rectifier is a high-performance electronic component designed for efficient conversion of alternating current (AC) to direct current (DC) in full-wave rectification tasks. Featuring a peak reverse repetitive voltage (Vrrm) of 600 V and a forward current rating of 2 A, the device ensures reliable operation in demanding electrical circuits.

Its through hole mount type and wire lead configuration allow secure installation on printed circuit boards (PCBs), facilitating industrial and commercial electronics design. The package type WOG provides a compact footprint with precise mechanical dimensions: a length of 9.86 mm, width of 8.84 mm, and height of 5.6 mm, ensuring ease of integration into various assemblies.

The device withstands peak non-repetitive forward surge currents up to 60 A, with a maximum operating temperature of 150°C and minimum operating temperature of -55°C, supporting robust performance under thermal stress. Its low peak forward voltage drop of 1.1 V and minimal reverse leakage current (5 µA) contribute to energy-efficient rectification with reduced power loss.

Manufactured as part of Vishay’s 2W0 series, this bridge rectifier is suitable for industrial machines, power supplies, HVAC systems, and other electronic power conversion applications.

Peak Reverse Voltage: 600 V ensures device durability against voltage spikes. Forward Current Capacity: 2 A supports moderate current rectification tasks. Temperature Range: Operates between -55°C and 150°C for wide thermal tolerance.

Compact Dimensions: 9.86 mm x 8.84 mm x 5.6 mm optimize PCB space utilization. Low Forward Voltage and Reverse Current: Improves efficiency and reduces heat generation. Robust Construction: Designed for high reliability and thermal performance in through hole mounting applications.

This component is manufactured in China and complies with general industrial standards without specific certifications listed. It is a new product ideal for electronic component distributors, system integrators, and engineers needing reliable and efficient Bridge Rectifier modules.
