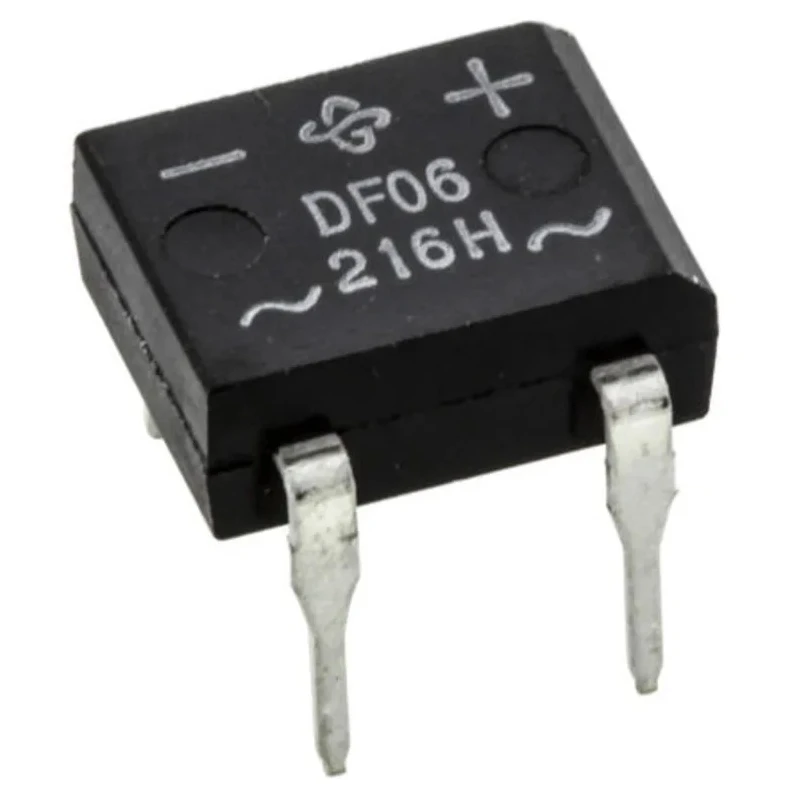

Vishay Bridge Rectifier 600 V 50 A 4-Pin Single Through Hole DFM Package DF06M-E3/45

Vishay DF06M-E3/45 Bridge Rectifier Single is a high-performance semiconductor device designed for converting AC to DC in full-wave rectification applications. It supports a peak reverse repetitive voltage (Vrrm) of 600 V and a forward current (If) of 50 A, making it ideal for medium power electronic circuits requiring reliable rectification.

This bridge rectifier utilizes a miniature glass passivated chip junction, ensuring excellent stability and robustness. The device is mounted using 4 through-hole soldering pins onto printed circuit boards, enabling automated assembly and robust mechanical integrity.

The rectifier can handle peak non-repetitive forward surge currents (Ifsm) of up to 50 A, which is beneficial in protecting circuits during transient load conditions. It operates safely within a wide temperature range from -55°C to 150°C, allowing use in harsh environments and industrial electronics.

Compact in size with dimensions 8.51 mm (length) x 6.5 mm (width) x 3.3 mm (height), it fits neatly on PCB layouts without compromising performance. The typical peak forward voltage drop is 1.1 V, contributing to power efficiency, while peak reverse current leakage is minimized to 5 μA.

These characteristics make the Vishay DF06M-E3/45 a preferred choice for applications in industrial power supplies, motor drives, HVAC control systems, and general electronic assemblies requiring high surge current capacity and durability.

Designed for full-wave rectification in electronic circuits. Features miniature glass passivated chip junction for high reliability. Soldering pins support efficient PCB through-hole mounting. Capable of handling peak non-repetitive surge currents up to 50 A.

Operates within temperature range of -55°C to 150°C. Compact dimensions: length 8.51 mm, width 6.5 mm, height 3.3 mm. Typical peak forward voltage of 1.1 V ensures efficient conduction. Low leakage current at 5 μA peak reverse current for energy efficiency.

Suitable for automated placement in mass manufacturing. Please explore more about Vishay brand and Bridge Rectifiers in the Electronics & Electricals category on EnvMart.
