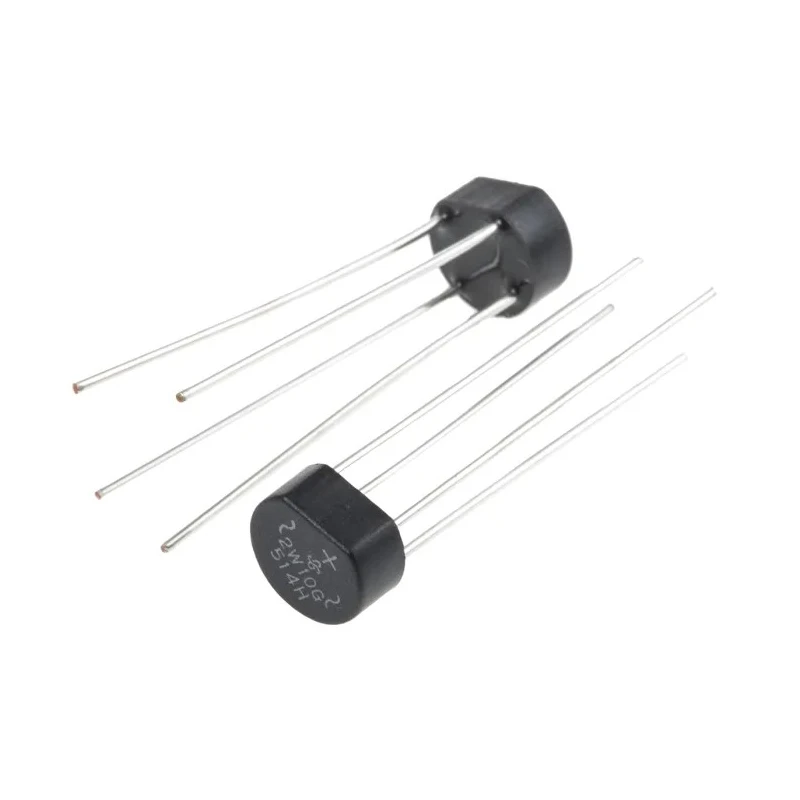

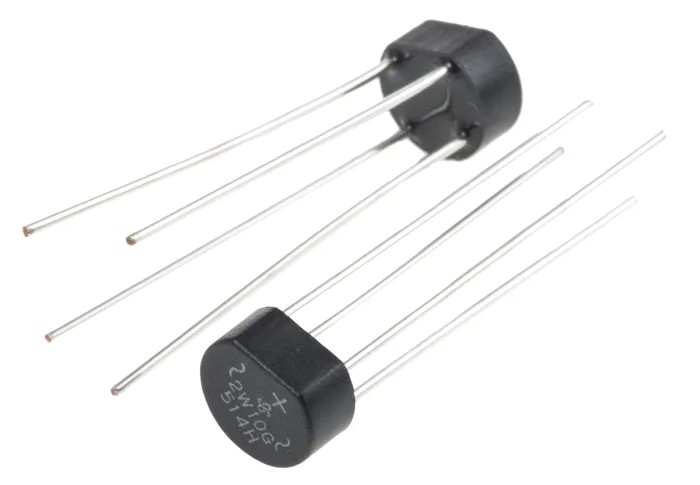

Vishay Bridge Rectifier 1000 V 60 A 4-Pin Single, Through Hole Mount, WOG Package 2W10G-E4/51

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 1000 V 60 A 4-Pin Single, Through Hole Mount, WOG Package 2W10G-E4/51

Name: Vishay Bridge Rectifier 1000 V 60 A 4-Pin Single, Through Hole Mount, WOG Package 2W10G-E4/51
Brand: Vishay
SKU: 217495
Price: 0.7 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	5.6mm
Length	9.86mm
Model	2W10G-E4/51
Width	8.84mm
Mount Type	Through Hole
Series	2W10
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	WOG
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	60A
Forward Current If	2A
Peak Forward Voltage Vf	1.1V

Key Features

The device has a 4-pin single configuration optimized for through-hole PCB mounting.
It features a peak non-repetitive forward surge current of 60 A for handling transient conditions.
Designed to operate reliably at temperatures ranging from -55°C to 150°C.
Constructed with a WOG package providing high dielectric strength and thermal performance.
Compact dimensions with a length of 9.86 mm, width of 8.84 mm, and height of 5.6 mm.
Offers a low peak forward voltage drop of 1.1 V to improve efficiency.
Suitable for full-wave rectification applications in industrial and electronic power circuits.

Product Description

Vishay 2W10G-E4/51 Bridge Rectifier is a discrete semiconductor device engineered for full-wave rectification, converting AC input to a consistent DC output. This bridge rectifier features a 4-pin single diode configuration housed in a compact WOG package, optimized for through-hole mounting on printed circuit boards.

Capable of withstanding a peak reverse repetitive voltage of 1000 V and continuous forward current of 2 A, it supports heavy-duty surge currents up to 60 A, making it suitable for robust power electronics applications. The device operates efficiently over a broad temperature range from -55°C up to 150°C, ensuring stable performance under demanding industrial and electrical conditions.

With physical dimensions measuring 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height, this rectifier offers a compact footprint compatible with various electronic assemblies. Its low peak forward voltage of 1.1 V minimizes power losses, enhancing overall circuit efficiency. The rectifier is designed without specialized automotive standards but adheres to high reliability semiconductor manufacturing practices by Vishay.

This product is widely applicable in industrial, laboratory, manufacturing, and HVAC power supply circuits requiring reliable rectification. It supports integration in power modules and control systems where converting AC to DC with minimal footprint and high thermal endurance is critical.

The bridge rectifier converts AC to DC with a stable output polarity regardless of input polarity. Through-hole mounting facilitates easy installation and soldering on traditional PCBs. Wire lead construction supports robust mechanical mounting and effective heat dissipation.

High dielectric strength case enhances durability and electrical isolation. Designed for use in power electronics, industrial machinery, and electronic equipment. Vishay's manufacturing excellence ensures consistency and compliance with semiconductor quality standards.

Choose this Vishay Bridge Rectifier 2W10G-E4/51 for reliable, efficient power conversion in your electronic designs. Explore more semiconductor components and electronic parts on EnvMart to meet all your project requirements.
