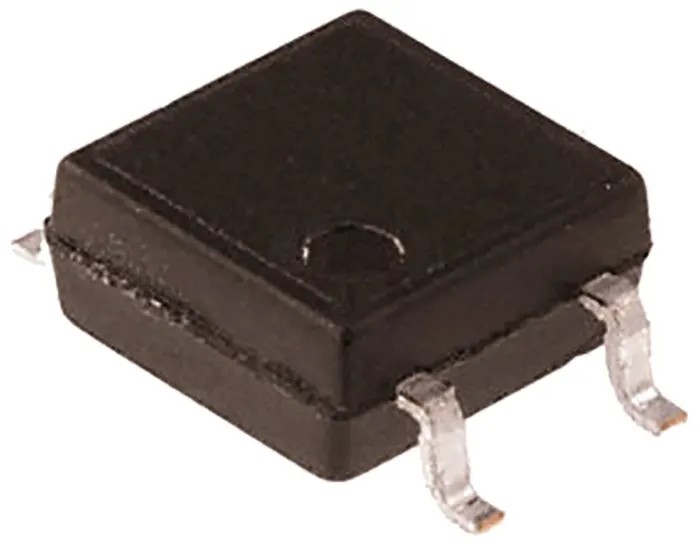

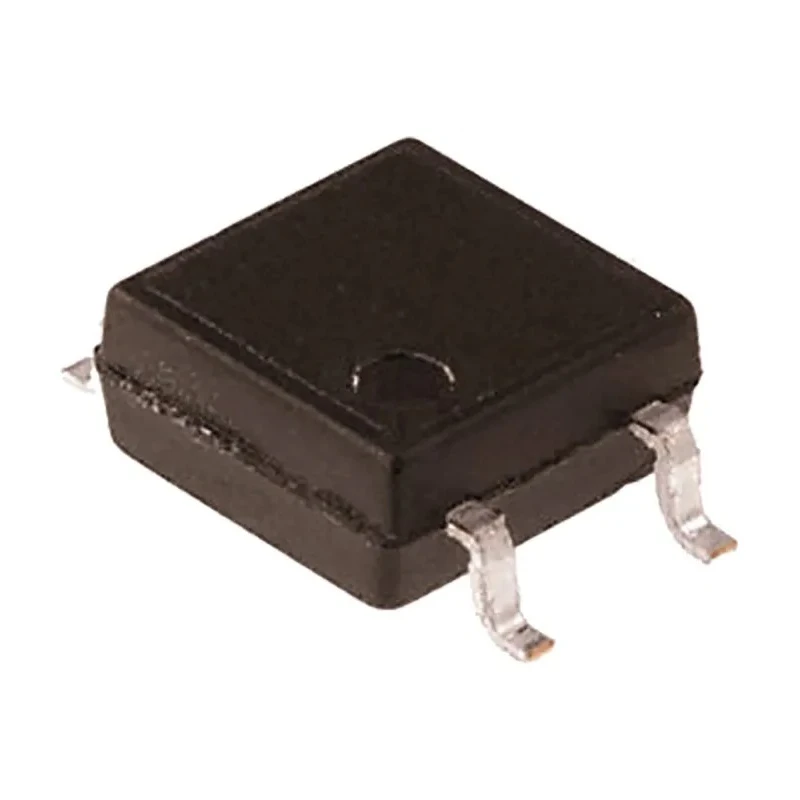

Toshiba DC Input Optocoupler Surface Mount Phototransistor Output 4-Pin SO Package TLP185(BLL-TL,SE(T

Free Delivery in India | Lowest Global Shipping Charges

Toshiba DC Input Optocoupler Surface Mount Phototransistor Output 4-Pin SO Package TLP185(BLL-TL,SE(T

Name: Toshiba DC Input Optocoupler Surface Mount Phototransistor Output 4-Pin SO Package TLP185(BLL-TL,SE(T
Brand: Toshiba
SKU: 211095
Price: 0.37 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	Japan
Brand	Toshiba
Model	TLP185(BLL-TL,SE(T
Mount Type	Surface
Output type	Phototransistor
Series	TL185
Maximum Operating Temperature	110°C
Package Type	SO
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	CSA, UL
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	2μs
Maximum Current Transfer Ratio	4%
Typical Fall Time	3μs
Minimum Current Transfer Ratio	200%

Key Features

Features a typical rise time of 2 microseconds for fast response.
Operates within a wide temperature range from -55°C to 110°C.
Supports a maximum forward voltage of 1.4 volts ensuring efficient operation.
Maximum input current rating is 50 milliamps for robust input handling.
Current transfer ratio ranges from a minimum of 200% to a maximum of 4%.
Typical fall time is 3 microseconds for swift signal transition.
Complies with CSA and UL safety standards for quality assurance.
Ideal for industrial and commercial electronics with one channel optocoupler in Toshiba's TL185 series.

Product Description

The Toshiba TLP185(BLL-TL,SE(T) DC Input Optocoupler is a highly reliable electronic component designed for industrial and commercial signal isolation applications. This device is built in a surface mount 4-pin SO package, featuring a phototransistor output that offers exceptional electrical isolation between input and output circuits.

With its maximum forward voltage of 1.4 volts and a maximum input current of 50 milliamps, the optocoupler ensures efficient power handling and minimal signal loss. It operates effectively within a temperature range of -55°C to 110°C, making it suitable for harsh environments.

The device boasts quick switching characteristics with a typical rise time of 2 microseconds and a typical fall time of 3 microseconds. It has a current transfer ratio that varies from 200% minimum to 4% maximum, enabling precise control and signal transmission.

Certified under CSA and UL standards, this optocoupler meets stringent safety and quality requirements. It belongs to Toshiba's TL185 series, known for its robust performance in electronic isolation tasks.

This optocoupler is extensively used in electronics, power supplies, automation systems, and communication devices to provide noise immunity and protect sensitive circuits from high voltages.

Features a typical rise time of 2 microseconds for fast response. Operates within a wide temperature range from -55°C to 110°C. Supports a maximum forward voltage of 1.4 volts ensuring efficient operation. Maximum input current rating is 50 milliamps for robust input handling.

Current transfer ratio ranges from a minimum of 200% to a maximum of 4%. Typical fall time is 3 microseconds for swift signal transition. Complies with CSA and UL safety standards for quality assurance. Ideal for industrial and commercial electronics with one channel optocoupler in Toshiba's TL185 series.
