| Country of Origin | India |
|---|---|
| Diameter | 1.53mm |
| Brand | onsemi |
| Height | 1.91mm |
| Length | 4.56mm |
| Model | 1N914BTR |
| Width | 1.91mm |
| Mount Type | Through Hole |
| Series | 1N91x |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-35 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Small Signal |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 4ns |

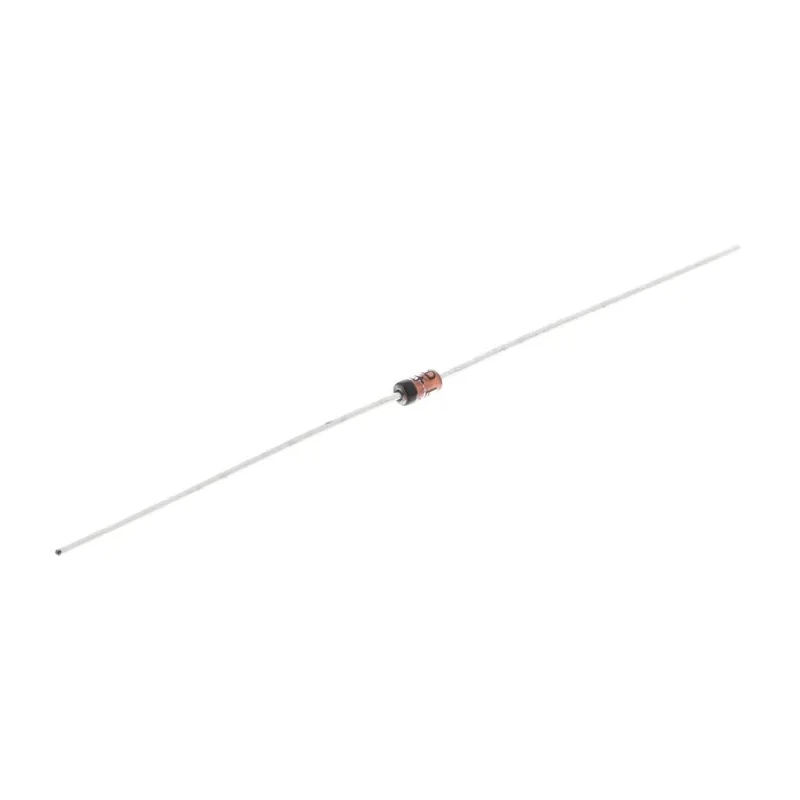

onsemi 1N914BTR is a small signal diode designed for various electronic applications requiring a compact 2-pin DO-35 through-hole package. Rated at a maximum continuous forward current of 300 mA and a peak reverse repetitive voltage of 100 V, this diode is suitable for moderate current and voltage circuits.
The device features a very low peak reverse current of 5 μA, which reduces leakage and power losses in sensitive electronic circuits. With a peak reverse recovery time of only 4 ns, it enables high-speed switching performance required in many industrial and laboratory environments.
This diode operates reliably over a wide temperature range from -65°C to 175°C, making it suitable for harsh conditions typical in industrial electronics and power supply applications.
The DO-35 package has a length of 4.56 mm and diameter of 1.53 mm, allowing easy through-hole mounting on printed circuit boards (PCBs) while occupying minimal space. The maximum forward voltage of 1 V ensures efficient conduction in forward bias mode.
This product does not comply with automotive standards, focusing instead on general-purpose usage in electronics manufacturing, prototyping, research instrumentation, and other electrical engineering contexts.
Maximum continuous forward current of 300 mA. Peak reverse repetitive voltage of 100 V. Peak reverse current at 5 μA. Peak reverse recovery time of 4 ns. Operating temperature from -65°C to 175°C. DO-35 through-hole mount package.
Compact size: Length 4.56 mm, Diameter 1.53 mm. Maximum forward voltage: 1 V. Single diode configuration. No automotive certification.
This diode is commonly used in electronics manufacture, testing equipment, power supplies, signal conditioning circuits, and general semiconductor applications. EnvMart offers a wide range of semiconductor diodes and components for industrial, laboratory, construction, and manufacturing sectors.
