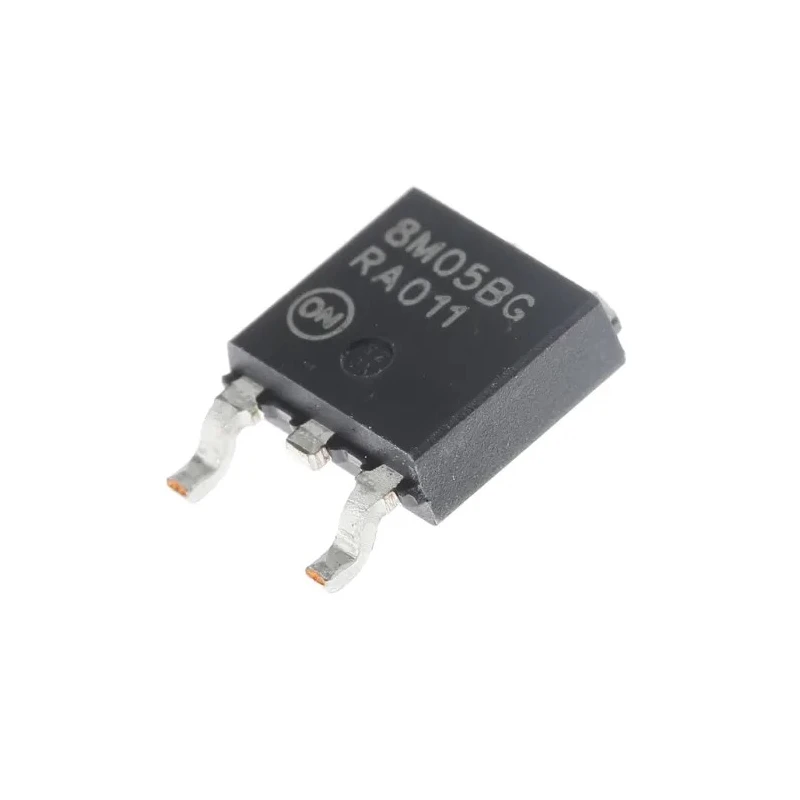

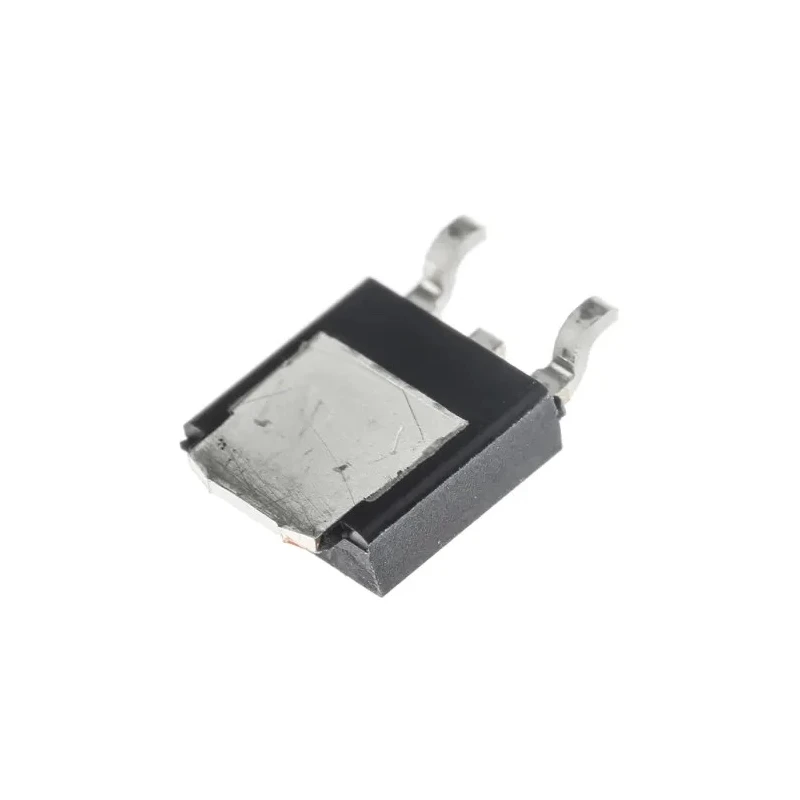

onsemi Voltage Regulator Surface Mount Positive Polarity MC78M05BDTG 35V 3-Pin 3.2mA

The onsemi MC78M05BDTG is a highly reliable linear voltage regulator designed for surface mounting, offering a steady positive output for electronic circuits. It features a compact 3-pin design and is suitable for demanding industrial, automotive, and power management applications requiring up to 35V input.

With its low quiescent current of only 3.2mA, the MC78M05BDTG ensures efficient operation in both stand-alone circuits and embedded PCB designs. The regulator is engineered for local and on-card voltage regulation, combining internal current limiting, thermal shutdown, and output transistor safe operating area protection for long-term performance and circuit safety.

Its surface mount package, with dimensions of 6.73mm (length), 6.22mm (width), and 2.38mm (height), enables easy integration in compact designs and offers reliable mechanical and thermal performance. The positive polarity output is ideal for standard voltage regulation scenarios in industrial, laboratory, automotive, and electronic sectors.

The MC78M05BDTG is compliant with the AEC-Q100 automotive standard, ensuring enhanced reliability and quality in critical applications. The device supports a wide operating temperature range up to 125°C, making it suitable for use in environments where temperature resilience is important.

Practical applications include power management ICs, automotive control systems, industrial automation, precision instrumentation, and circuit protection. Its robust design is Pb-free and prepared for automated production processes.

Robust linear voltage regulation up to 35V input for industrial and automotive systems. Compact surface mount form factor simplifies PCB integration in space-constrained layouts. Low quiescent current optimizes power efficiency, reducing energy consumption in sensitive electronics.

Integrated safety features: internal current limiting, thermal shutdown, and output transistor protection. Three-pin design and standard footprint enable straightforward replacement and new circuit designs. Wide temperature tolerance ensures reliable operation in harsh conditions.

Automotive AEC-Q100 compliance for high-quality control applications.

This voltage regulator is widely used in industrial power management, laboratory instrumentation, commercial electronics, and automotive systems. Discover more surface mount Voltage Regulators and power management ICs in the EnvMart 'Semiconductor' category or browse the full selection of onsemi products.
